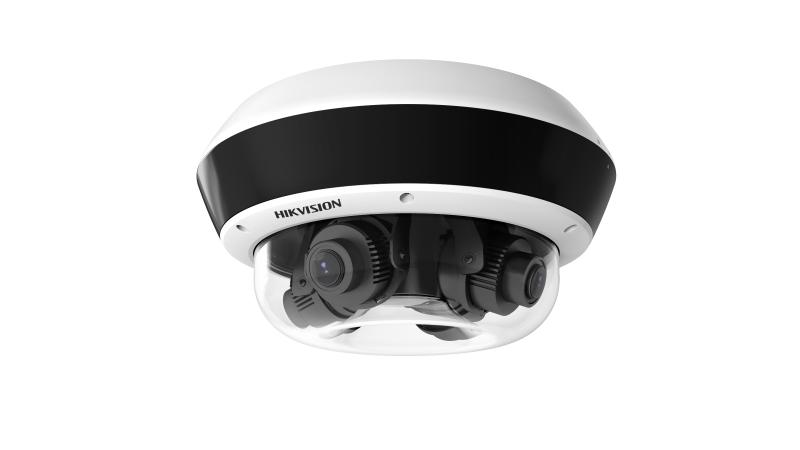

HIKVISION - DS-2CD6D54FWD-IZHS 2.8-12mm - PANOVU O 20MP MS IR-HEATER
Part number:
DS-2CD6D54FWD-IZHS 2.8-12mm
Price:
4-Directional Multisensor Network Camera
Features:
- 4 adjustable lenses in one camera cover up to a 360° field of view, ensuring zero-blind zone monitoring
- the monitoring tilt angle can also be adjusted
- Each lens has a resolution of up to 5 MP, capturing clear images
- more details can be displayed on a video wall
- A built-in heater provides ultra-low temperature start-up to -40℃
- IP67/IK10 water resistant and vandal proof, preventing water ingress for outdoor use
- FC interface: the camera can be connected by fiber optical cable for the transfer of data over long distances
- H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements
| Specification | |
| Camera | |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Max. Resolution | 2560 x 1920 |
| Min. Illumination | Color: 0.006 Lux @ (F1.2, AGC ON), 0.010 Lux @ (F1.6, AGC ON); B/W: 0.002 Lux @ (F1.2, AGC ON), 0.003 Lux @ (F1.6, AGC ON), 0 Lux with IR on |
| Shutter Time | 1 s - 1/100,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Four flexible lens in one track, slide range: -180° to 180°, tilt: 0° to 135°, rotate: 0° to 355° |
| Lens | |
| Focal Length & FOV | 2.8mm to 12mm; H: 30°-101°, V: 22.4°-73°, D: 37°-137° |
| Lens Mount | Φ14 |
| Aperture | F1.6 |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | 10 m to 30 m |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (2560×1920 to 1280×720), 60 Hz: 24 fps |
| Sub-Stream | 50 Hz: 25 fps (704×576, 640×480), 60Hz: 24 fps |
| Third Stream | 50 Hz: 6 fps, 60 Hz: 8 fps |
| Video Compression | H.265+/H.265/H.264+/H.264, MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline/Main/High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | Support |
| Region of Interest (ROI) | 4 fixed regions per stream |
| Audio | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–192 Kbps (MP2L2) |
| Audio Sampling Rate | 8 / 16 / 32 / 44.1 / 48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (PROFILE S, G), ISAPI |
| User/Host | Up to 32 users; 3 levels: Admin, Operator, User |
| Network Storage | MicroSD (128 GB), local, NAS (NFS/SMB/CIFS), ANR |
| Client | iVMS-4200 |
| Web Browser | IE8+, Chrome 31-44, Firefox 30.0-51 |
| Image | |
| Image Settings | Rotate, saturation, brightness, contrast, sharpness, white balance |
| Day/Night Switch | Day/Night/Auto/Schedule/Alarm Trigger (-S) |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Enhancement | BLC, 3D DNR, EIS |
| Picture Overlay | LOGO (128×128, 24bit BMP) |
| Interface | |
| Ethernet Interface | 1x RJ45 10/100/1000M, 1x RS-485 (-S), 1x 1000M FC fiber (-/NFC) |
| On-Board Storage | MicroSD/SDHC/SDXC up to 128 GB |
| Audio Ports | 1-ch 3.5mm input (line/mic), 1-ch 3.5mm output, stereo |
| Alarm | 2 inputs, 2 outputs (24 VDC, 1A or 110 VAC, 500mA) |
| Reset Key | Yes |
| Fiber Optical | FC, single-mode, single-fiber, 20 km; Tx: 1310 nm / 1.25G, Rx: 1550 nm / 1.25G |
| Event | |
| Basic Event | Motion, tampering, network issues, illegal login, HDD alerts |
| Smart Event | Line crossing, intrusion, region entrance/exit, unattended baggage, object removal, face detection, audio exception, scene change, defocus |
| General | |
| Power | 12 VDC ± 20% (2.3 A, max 28W), 24 VAC ± 20% (2.5 A, 50–60 Hz), Hi-PoE / PoE (up to 34W) |
| Material | Aluminum alloy, engineering plastics |
| Dimension | Ø290 mm × 145.5 mm (Ø11.42" × 5.73") |
| Package Dimension | 453 × 393 × 385 mm (17.8" × 15.47" × 15.16") |
| Weight | 4.7 kg (10.3 lb.) |
| With Package Weight | 7.7 kg (16.8 lb.) |
| Startup and Operating Conditions | -30°C to 60°C (-22°F to 140°F); -H: -40°C to 60°C; ≤95% RH (non-condensing) |
| General Function | One-key reset, anti-flicker, mirror, heartbeat, password, privacy mask, watermark, IP filter |
| Approval - Protection | IP67, IK10 |
