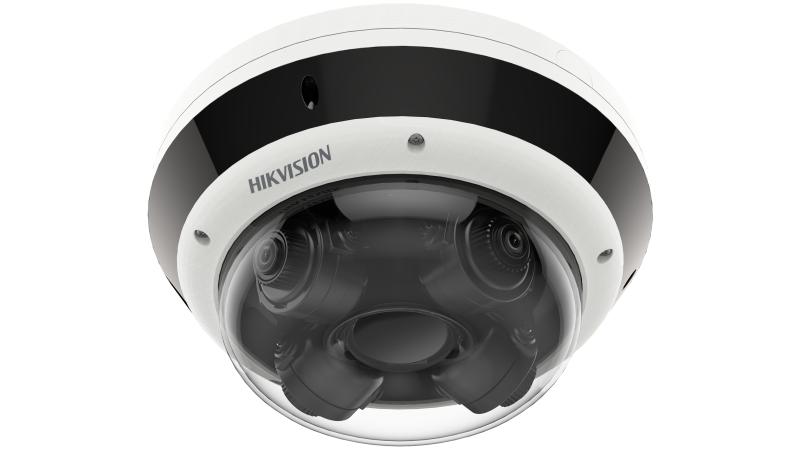

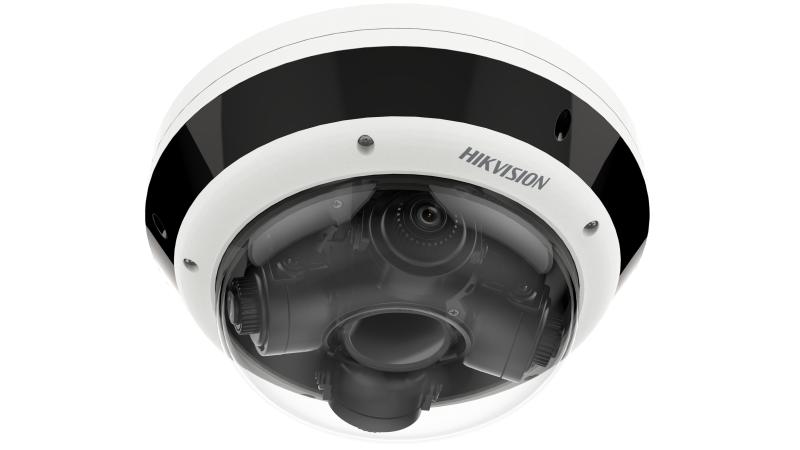

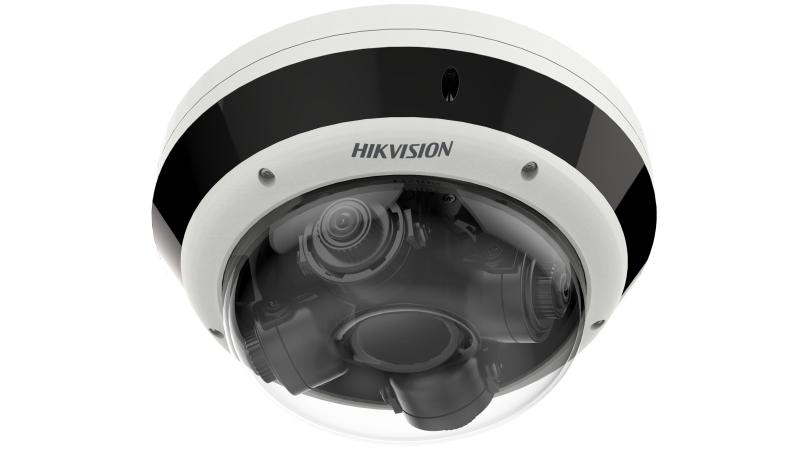

HIKVISION - DS-2CD6D54G1-IZS - Mini PANOVU O 20MP IR
Part number:
DS-2CD6D54G1-IZS
Price:
4-Directional Multisensor Network Camera
Features:
- 4 adjustable lenses in one camera cover up to 360° field of view, ensuring no blind area monitoring and the monitoring tilt angle can be adjusted
- Each lens up to 5 MP, capturing clear images, and more details can be displayed on video wall
- Clear imaging against strong back light due to 120 dB true WDR technology
- Water and dust resistant (IP67) and vandal proof (IK10)
- 3D DNR technology delivers clean and sharp images
- -S: audio and alarm interface available
| Specification | |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1920 |
| Min. Illumination | Color: 0.0125 Lux @(F1.9, AGC ON)B/W: 0.0025 Lux @(F1.9, AGC ON), 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: -60° to 60°, tilt: 10° to 90°, rotate: 0° to 350° |
| Lens | |
| Lens Type | Varifocal lens, 2.8 to 8 mm |
| Focal Length & FOV | 2.8 to 8 mmHorizontal: 100° to 49°Vertical: 72° to 36.4°Diagonal: 134.4° to 61.4° |
| Lens Mount | Ø14 |
| Focus | Manual, semi-auto |
| Aperture | F1.9 |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps60 Hz: 24 fpsResolutions: 2560×1920, 2048×1536, 1920×1080, 1280×720 |
| Sub-Stream | 50 Hz: 25 fps60 Hz: 24 fpsResolutions: 704×576, 640×480 |
| Third Stream | 50 Hz: 6 fps60 Hz: 8 fpsResolutions: 1920×1080, 1280×720, 704×576/480, 640×480 |
| Video Compression | Main: H.265+/H.265/H.264+/H.264Sub: H.265/H.264/MJPEGThird: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline/Main/High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding | H.264 encoding |
| ROI | 4 fixed regions per stream |
| Target Cropping | Yes |
| Audio | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM (-S model) |
| Audio Bit Rate | 64Kbps (G.711), 16Kbps (G.722.1/G.726), 32–192Kbps (MP2L2), 32Kbps (PCM) |
| Audio Sampling Rate | 8 kHz to 48 kHz |
| Environment Noise Filtering | Yes (-S model) |
| Network | |
| Protocols | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, etc. |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (S/G/T), ISAPI, SDK, Ehome |
| User/Host | Up to 32 users (admin/operator/user levels) |
| Security | HTTPS, 802.1X, IP filter, watermark, WSSE, digest auth |
| Network Storage | microSD (up to 128 GB), NAS, ANR |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | IE8+, Chrome 41–44, Firefox 30–51, Safari 8–11 |
| Image | |
| Image Settings | Rotate, brightness, contrast, sharpness, etc. adjustable via software/browser |
| Day/Night Switch | Day/Night/Auto/Schedule/Alarm In (-S) |
| WDR | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR, Defog, EIS |
| Picture Overlay | 128×128 24-bit BMP logo overlay |
| Interface | |
| Ethernet | 1 RJ45 10/100/1000M, RS-232 built-in |
| On-Board Storage | microSD/SDHC/SDXC, up to 128 GB |
| Audio | 1 in / 1 out, 3.5 mm (with -S model) |
| Alarm | 2 in / 2 out, max. 24VDC 1A (with -S model) |
| RS-485 | 1 interface (half-duplex, supports HIKVISION, Pelco-P/D, self-adaptive) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection, tampering, exceptions |
| Smart Event | Line crossing, intrusion, region entrance/exit, baggage detection, object removal, scene change, audio exception (-S), defocus |
| Linkage | FTP, NAS, SD, email, alarm, record, capture |
| General | |
| Power | 12VDC ±20%, 24VAC ±20%, PoE (802.3at, Class 4) |
| Power Consumption | 22W max (PoE: 19W) |
| Dimension | Ø250 × 114.9 mm (9.8" × 4.5") |
| Package Dimension | 336 × 261 × 293 mm (13.2" × 10.3" × 11.5") |
| Weight | Approx. 2.2 kg (4.9 lb.) |
| With Package Weight | Approx. 3.9 kg (8.6 lb.) |
| Storage Conditions | -30°C to 60°C, ≤95% RH (non-condensing) |
| Operating Conditions | -30°C to 60°C, ≤95% RH (non-condensing) |
| Languages | 32 languages including English, Russian, German, French, Chinese, etc. |
| General Functions | Anti-flicker, 3 streams, heartbeat, mirror, privacy masks |
| Approval | |
| EMC | FCC, CE-EMC, RCM, IC, KV |
| Safety | UL, CB, BIS |
| Environment | CE-RoHS, WEEE, REACH |
| Protection | IK10, IP67 |
