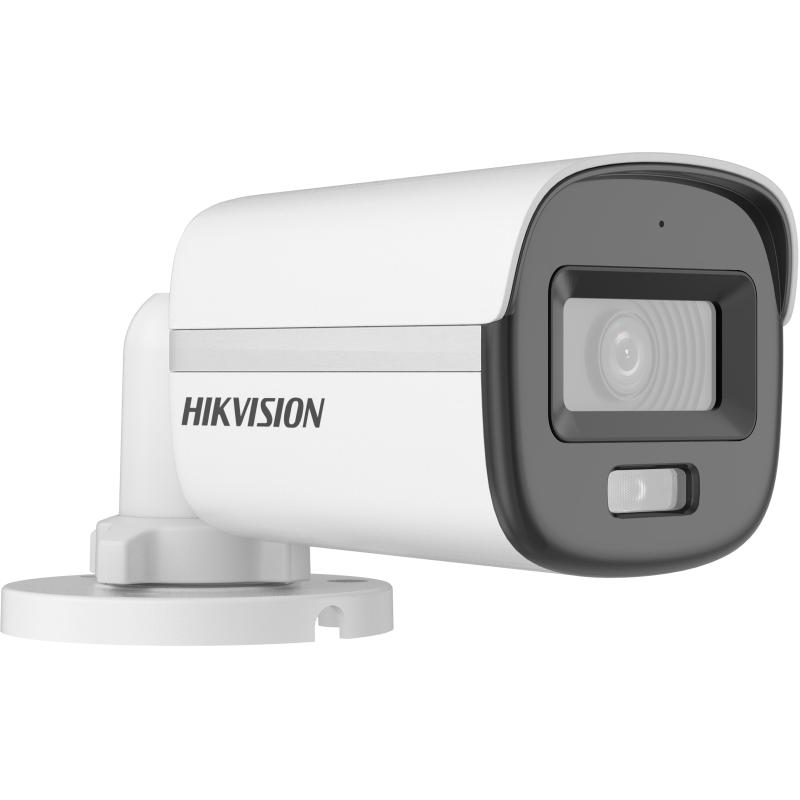

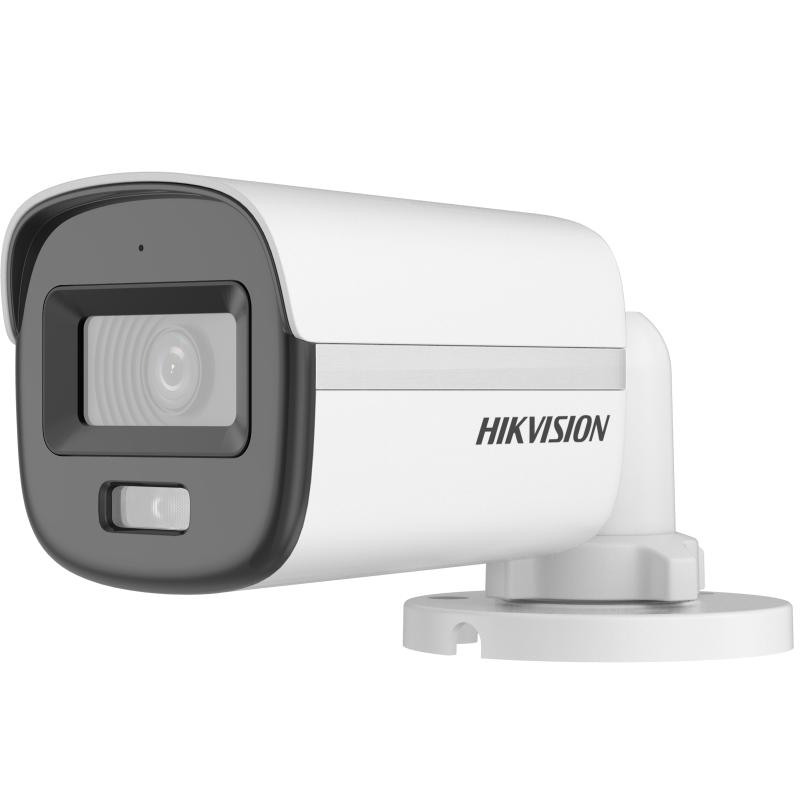

HIKVISION - DS-2CE10DF0T-F 3.6mm - 2 MP ColorVu Fixed Mini Bullet Camera
Part number:
DS-2CE10DF0T-F 3.6mm
Price:
2 MP ColorVu Fixed Mini Bullet Camera, 3.6mm
Features:
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 24/7 color imaging with F1.0 aperture
- 3D DNR technology delivers clean and sharp images
- 2.8 mm, 3.6 mm, 6 mmfixed focal lens
- Up to 20 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
| Specification | |
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
| Signal System | PAL/NTSC |
| Light Alarm | Solid Light Alarm (White Light) |
| Lens | |
| Lens Type | 2.8 mm, 3.6 mm, 6 mm fixed focal lens |
| Focal Length & FOV | 2.8 mm: HFOV 98°, VFOV 51°, DFOV 115°3.6 mm: HFOV 76°, VFOV 41°, DFOV 90°6 mm: HFOV 50°, VFOV 27°, DFOV 58° |
| Lens Mount | M12 |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 20 m |
| Smart Supplement Light | Yes |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Image Settings | Brightness, Mirror, Sharpness, Anti-Banding, AGC |
| Frame Rate | TVI: 1080p@25/30fpsCVI: 1080p@25/30fpsAHD: 1080p@25/30fpsCVBS: PAL/NTSC |
| Day/Night Mode | Color |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | DWDR, BLC, HLC, Global |
| Noise Reduction | 3D DNR / 2D DNR |
| White Balance | Auto/Manual |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| General | |
| Material | Metal |
| Dimension | 161.1 mm × 70 mm × 70 mm (6.34" × 2.76" × 2.76") |
| Weight | Approx. 395 g (0.87 lb) |
| Operating Condition | -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) |
| Communication | HIKVISION-C |
| Language | English |
| Power | 12 VDC ± 25%, Max. 2.4 W*Use one power adapter per camera |
| Approval | |
| Protection | IP67 |
