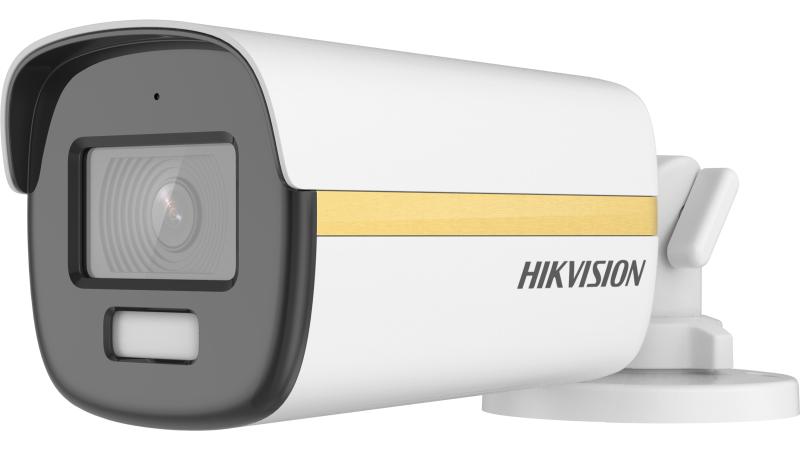

HIKVISION - DS-2CE12DF3T-FS 2.8mm - ColorVu 2MP 2.8m 130dB 40m
Part number:
DS-2CE12DF3T-FS 2.8mm
Price:
2 MP ColorVu Audio Fixed Bullet Camera, 2.8mm
Features:
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 24/7 color imaging with F1.0 aperture
- Clear imaging against strong back light due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- 2.8 mm, 3.6 mm, 6 mm fixed focal lens
- Up to 40 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
- High quality audio with audio over coaxial cable, built-in mic
| Specification | |
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Day & Night | 24/7 Color Imaging |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.8 mm, 3.6 mm and 6 mm fixed focal lens |
| Focal Length & FOV | 2.8 mm, H: 98°, V: 52°, D: 116°3.6 mm, H: 77°, V: 42°, D: 91°6 mm, H: 51°, V: 28°, D: 59° |
| Lens Mount | M12 |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| Image | |
| Image Parameters Switch | STD / HIGH-SAT / HIGHLIGHT |
| Image Settings | Brightness; Contrast; Mirror; Sharpness; Anti-Banding; AGC |
| Frame Rate | TVI: 1080P@30fps / 25fpsAHD: 1080P@30fps / 25fpsCVI: 1080P@30fps / 25fpsCVBS: PAL/NTSC |
| Day/Night Mode | Color |
| Wide Dynamic Range (WDR) | ≥130 dB |
| Image Enhancement | BLC; HLC; Global; HLS |
| Privacy Mask | 4 programmable privacy masks |
| Noise Reduction | 3D DNR / 2D DNR |
| White Balance | Auto / Manual |
| Interface | |
| Video Output | Switchable TVI / AHD / CVI / CVBS |
| Alarm | Solid Light Alarm (White Light) |
| Built-in Microphone | Yes |
| Event | |
| Motion Detection | 4 programmable motion areas |
| General | |
| Power | 12 VDC ± 25%, max. 5.7 W*Use one power adapter per camera |
| Material | Metal |
| Dimension | 194.2 mm × 78 mm × 74.5 mm (7.65" × 3.07" × 2.93") |
| Weight | Approx. 515 g (1.13 lb.) |
| Operating Condition | -40 °C to 50 °C (-40 °F to 122 °F), humidity 90% or less (non-condensing) |
| Communication | HIKVISION-C |
| Language | English |
| Approval | |
| Protection | IP67 |
