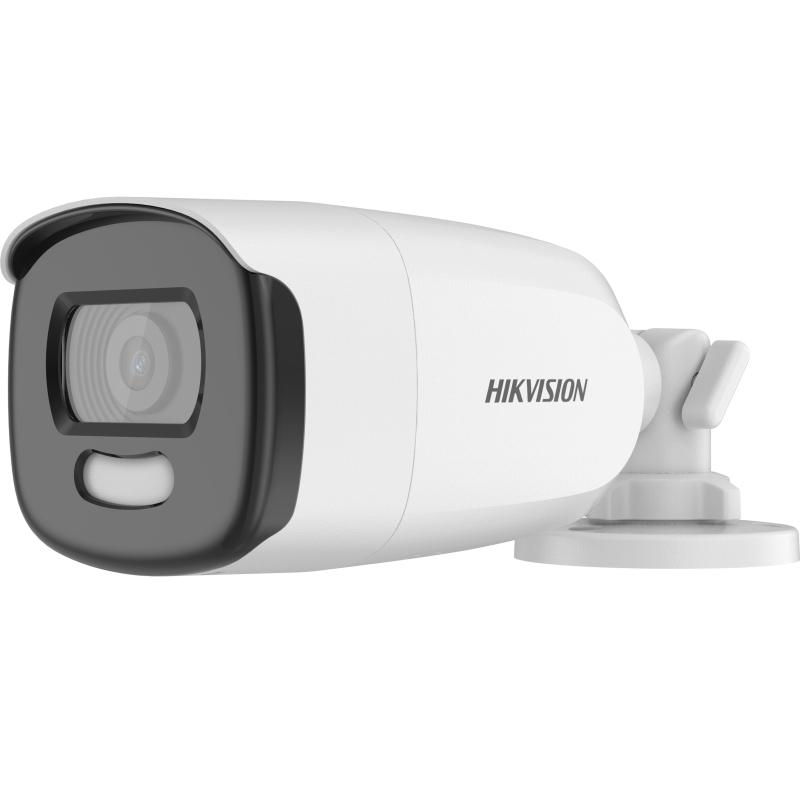

HIKVISION - DS-2CE12HFT-F28 2.8mm - ColorVu 5MP 2.8mm 130dB 40m
Part number:
DS-2CE12HFT-F28 2.8mm
Price:
5 MP ColorVu Fixed Bullet Camera
Features:
- 5 MP full time color bullet camera
- 24/7 full color imaging
- 2.8 mm fixed focal lens
- Warm supplemental light with 40 m range
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
| Specification | |
| Camera | |
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2560 (H) × 1944 (V) |
| Min. Illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 sNTSC: 1/30 s to 1/50,000 s |
| Day & Night | Color |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.8 mm fixed lens |
| Focal Length & FOV | 2.8 mmHorizontal FOV: 99.7°Vertical FOV: 72°Diagonal FOV: 139.8° |
| Lens Mount | M16 |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 40m |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Sharpness, Mirror, Smart Light, AGC |
| Frame Rate | TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fpsCVI: 4MP@30fps, 4MP@25fpsAHD: 5MP@20fps, 4MP@30fps, 4MP@25fpsCVBS: PAL/NTSC |
| Day/Night Mode | Color |
| Wide Dynamic Range (WDR) | ≥130 dB |
| Image Enhancement | BLC, HLC |
| White Balance | Auto/Manual |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| General | |
| Material | Metal |
| Dimension | 82.6 mm × 77.1 mm × 220.4 mm (3.25" × 3.04" × 8.68") |
| Weight | Approx. 565 g (1.25 lb.) |
| Operating Condition | -40°C to 60°C (-40°F to 140°F), Humidity 90% or less (no condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Power | |
| Power | 12 VDC ± 25%, Max. 4.9 W*Use one power adapter per camera |
| Approval | |
| Protection | IP67 |
Name
Description
Size
Downloads
File
Datasheet
1mb
File
User Manual
1.8mb
File
Quick Start Guide
1.1mb
