HIKVISION - DS-2CE12UF3T-E 2.8mm - ● High quality imaging with 8 MP, 3840 × 2160 resolution● 24/7 color imaging● Clear imaging against strong back light due to 130 dB true WDR technology● 3D DNR technology delivers clean and sharp images● 2.8 mm,
Part number:
DS-2CE12UF3T-E 2.8mm
Price:

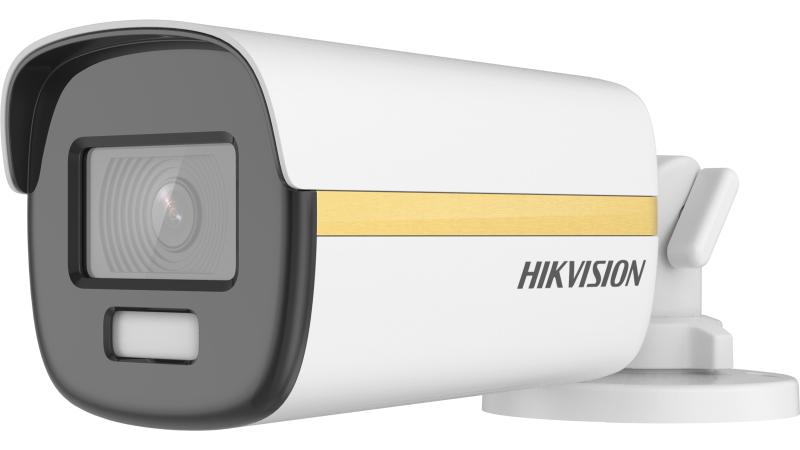

4K ColorVu PoC Fixed Mini Bullet Camera, 2.8mm
Features:
- High quality imaging with 8 MP, 3840 × 2160 resolution
- 24/7 color imaging
- Clear imaging against strong back light due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- 2.8 mm, 3.6 mm, 6mm fixed focal lens
- Up to 40 m white light distance for bright night imaging
- Water and dust resistant (IP67)
| Specification | |
| Camera | |
| Image Sensor | 8 MP CMOS |
| Signal System | PAL/NTSC |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Min. Illumination | 0.0005 Lux@(F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s |
| Day & Night | 24/7 Color Imaging |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° |
| Lens | |
| Lens Type | 2.8 mm, 3.6 mm, 6mm fixed focal lens |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 110°, vertical FOV: 59°, diagonal FOV: 131° 3.6 mm, horizontal FOV: 93°, vertical FOV: 48°, diagonal FOV: 113° 6 mm, horizontal FOV: 57°, vertical FOV: 30°, diagonal FOV: 67° |
| Lens Mount | M16 |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 40 m |
| Image | |
| Frame Rate | TVI: 8 MP @ 12.5 fps/15 fps, 3K @ 20 fps, 1080P @ 25 fps/30 fps |
| Wide Dynamic Range (WDR) | ≥130 dB |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Day/Night Mode | Color |
| White Balance | Auto/Manual |
| Image Enhancement | WDR, BLC, HLC, Global, HLS |
| Privacy Mask | 4 programmable privacy masks |
| Noise Reduction | 3D DNR/2D DNR |
| Image Settings | Brightness, Contrast, Mirror, Sharpness, Anti-Banding, Smart Light, AGC |
| Interface | |
| Video Output | 1 HD analog output |
| Alarm | Solid Light Alarm (White Light) |
| Event | |
| Motion Detection | 4 programmable motion areas |
| General | |
| Language | English |
| Operating Condition | -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) |
| Material | Metal |
| Communication | HIKVISION-C |
| Dimension | 194.2 mm × 78 mm × 74.5 mm (7.65" × 3.07" × 2.93") |
| Weight | Approx. 566 g (1.25 lb.) |
| Power | 12 VDC ± 25%/PoC.at, Max. 5.1 W *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply. |
| Approval | |
| Protection | IP67 |
Name
Description
Size
Downloads
File
Datasheet
1mb
File
User Manual
1.4mb
