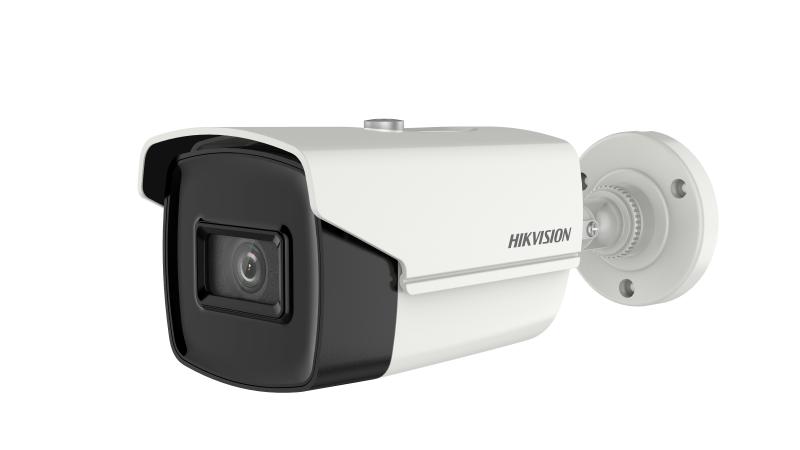

Hikvision - DS-2CE16D3T-IT3F 3.6mm - 2 MP Ultra Low Light Fixed Bullet Camera, 3.6mm
Part number:
DS-2CE16D3T-IT3F 3.6mm
Price:
2 MP Ultra Low Light Fixed Bullet Camera, 3.6mm
Features:
- 2 MP bullet camera
- Strong night performance, capturing images in ultra-low light down to 0.005 lux
- Clear imaging even against strong back lighting due to 120 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- EXIR 2.0: advanced infrared technology with 50 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
| Specification | |
| Camera | |
| Min. Illumination | 0.005 Lux@(F2.0, AGC ON), 0 Lux with IR |
| Signal System | PAL/NTSC |
| Image Sensor | 2 MP CMOS |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Day & Night | IR Cut Filter |
| Slow Shutter | Max. 16 times |
| Lens | |
| Focal Length & FOV | Horizontal FOV: 106° (2.8 mm), 82° (3.6 mm), 51° (6 mm), 39° (8 mm), 24° (12 mm) |
| Lens Mount | M12 |
| Lens Type | Fixed focal lens, 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 50 m |
| Smart Supplement Light | Yes |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness; Sharpness; Mirror; AGC |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | ≥120 dB |
| Frame Rate | PAL: 1080p @ 25 fps; NTSC: 1080p @ 30 fps |
| Image Enhancement | BLC; HLC |
| Noise Reduction | 3D DNR |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS; 1 HD analog output |
| General | |
| Material | Front cover: Metal, Main body: Plastic |
| Dimension | 81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58") |
| Power | 12 VDC ± 25%, max. 5.6 W (One adapter per camera recommended) |
| Weight | Approx. 411 g (0.91 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing) |
| Language | English |
| Approval | |
| Protection | IP67 |
