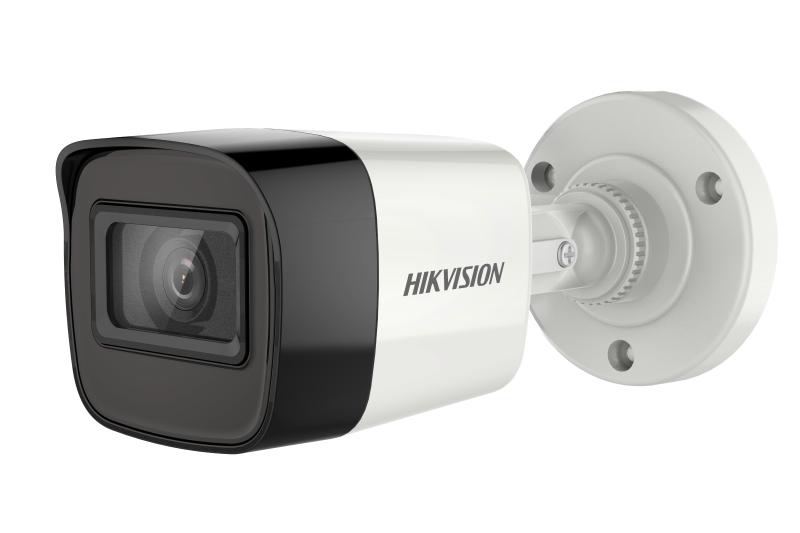

HIKVISION - DS-2CE16U7T-ITF 2.8mm - BL IP67 8MP 2.8mm WDR
Part number:
DS-2CE16U7T-ITF 2.8mm
Price:
4K Ultra Low Light Fixed Mini Bullet Camera, 2.8mm
Features:
- 8 MP high performance bullet camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- EXIR 2.0: advanced infrared technology with 30 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
| Specification | |
| Camera | |
| Image Sensor | 8.29 MP CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Min. Illumination | 0.003 Lux@(F1.6, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 sNTSC: 1/15 s to 1/50,000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Focal Length & FOV | 102° (2.8 mm), 79° (3.6 mm), 51° (6 mm) |
| Lens Mount | M16 |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Sharpness, Mirror, Smart IR |
| Frame Rate | TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fpsAHD: 8MP@12.5fps, 8MP@15fpsCVI: 8MP@12.5fps, 8MP@15fpsCVBS: P/N |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | ≥130 dB |
| White Balance | Auto/Manual |
| AGC | Support |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| General | |
| Material | Metal |
| Dimension | 58 mm × 61 mm × 158.6 mm (2.28" × 2.40" × 6.42") |
| Weight | Approx. 345 g (0.76 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Power Supply | 12 VDC ± 25%Recommended to use one power adapter per camera |
| Consumption | Max. 4.2 W |
| IR Range | Up to 30 m |
| Approval | |
| Protection | IP67 |
Name
Description
Size
Downloads
File
Datasheet
0.8mb
