HIKVISION - DS-2CE19U7T-AIT3ZF - BL IP67 8MP 2.7-13.5MZ WDR
Part number:
DS-2CE19U7T-AIT3ZF
Price:

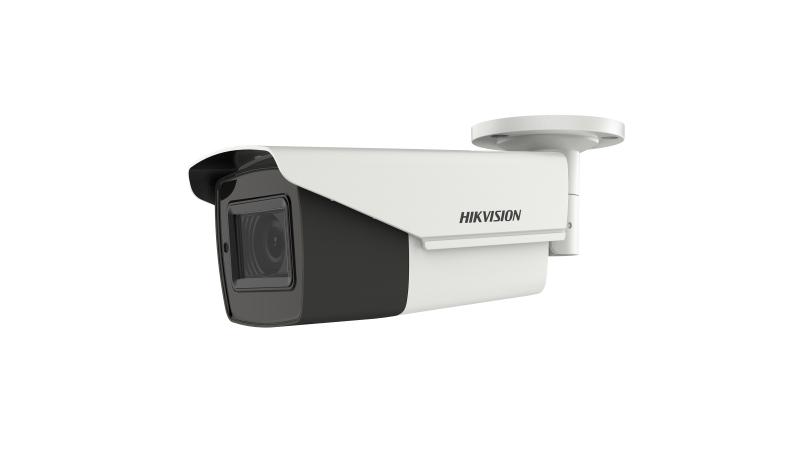

4K Ultra Low Light Motorized Varifocal Bullet Camera
Features:
- 8 MP high performance bullet camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Lens focuses automatically when zooming in or out
- EXIR 2.0, advanced infrared technology with 80 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
| Specification | |
| Camera | |
| Image Sensor | 8.29 megapixel progressive scan CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Min. Illumination | Color: 0.003 Lux @ (F2.4, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s; NTSC: 1/15 s to 1/50,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.7 mm to 13.5 mm motorized varifocal lens |
| Focal Length & FOV | 108.1° to 45.6° |
| Lens Mount | Φ14 |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 80 m |
| Smart Supplement Light | Yes |
| Image | |
| Image Settings | Brightness; Sharpness; Mirror; Smart IR; AGC |
| Frame Rate | TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps |
| CVI: 8MP@12.5fps, 8MP@15fps | |
| AHD: 8MP@12.5fps, 8MP@15fps | |
| CVBS: 960H P/N | |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | ≥130 dB |
| Image Enhancement | BLC; WDR |
| Noise Reduction | 3D DNR |
| White Balance | Auto/Manual |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS; 1 HD analog output |
| General | |
| Power | 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC, max. 10.8W |
| Material | Metal |
| Dimension | 84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10") |
| Weight | Approx. 925 g (2.04 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Approval | |
| Protection | IP67 |
Name
Description
Size
Downloads
File
Datasheet
0.6mb
File
User Manual
1.3mb
