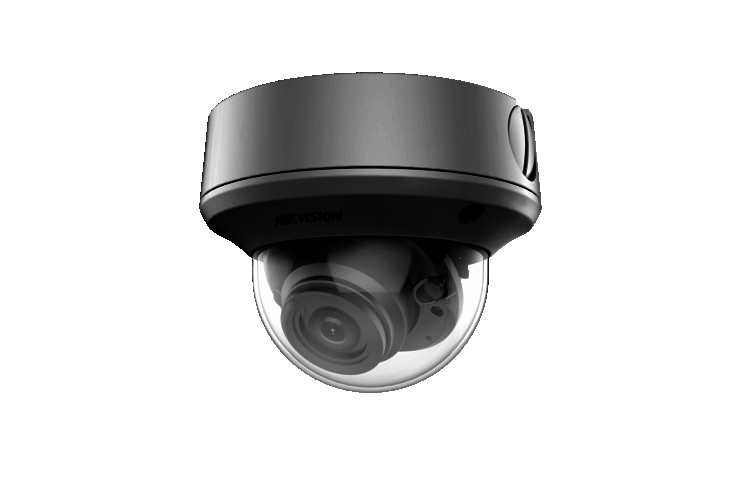

Hikvision - DS-2CE5AD3T-AVPIT3ZFB - 2MP Ultra Low Light Vandal Moto Varifocal Dome Camera
Part number:
DS-2CE5AD3T-AVPIT3ZFB
Price:
2MP Ultra Low Light Vandal Moto Varifocal Dome Camera
Features:
- 2 MP dome camera
- Strong night performance, capturing images in ultra-low light down to 0.005 lux
- Clear imaging even against strong back lighting due to 120 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Lens focuses automatically when zooming in or out
- EXIR 2.0: advanced infrared technology with 70 m IR distance
- Water and dust resistant (IP67) and vandal proof (IK10)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
| Specification | |
| Camera | |
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.005 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 sNTSC: 1/30 s to 1/50,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 340°, Tilt: 0° to 75°, Rotation: 0° to 355° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.7 mm to 13.5 mm |
| Focal Length & FOV | 102° to 31° |
| Lens Mount | Φ 14 |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Sharpness, 3D DNR, Mirror, Smart IR |
| Frame Rate | PAL: 1080p@25fpsNTSC: 1080p@30fps |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | ≥ 120 dB |
| Image Enhancement | Yes |
| AGC | High/Medium/Low |
| Interface | |
| Video Output | TVI/AHD/CVI/CVBS |
| General | |
| Material | Metal |
| Dimension | Ø145 mm × 111.3 mm (5.70" × 4.37") |
| Weight | Approx. 830 g (1.83 lb.)-A: Approx. 870 g (1.92 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Language | English |
| Power Supply | 12 VDC ±25%-A: 24 VAC ±15%, 12 VDC ±20%*Use one power adapter per camera |
| Consumption | Max. 7.7 W-A: Max. 9.7 W |
| IR Range | Up to 70 m |
| Approval | |
| Protection | IP67, IK10 |
