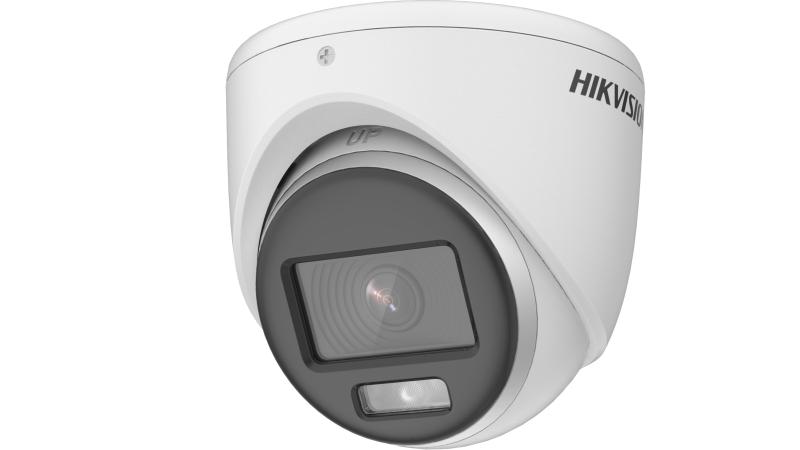

HIKVISION - DS-2CE70DF0T-MF 3.6mm - 2 MP ColorVu Fixed Turret Camera
Part number:
DS-2CE70DF0T-MF 3.6mm
Price:
2 MP ColorVu Fixed Turret Camera, 3.6mm
Features:
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 24/7 color imaging with F1.0 aperture
- 3D DNR technology delivers clean and sharp images
- 2.8 mm, 3.6 mm, 6 mmfixed focal lens
- Up to 20 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
| Specification | |
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Signal System | PAL/NTSC |
| Light Alarm | Solid Light Alarm (White Light) |
| Lens | |
| Lens Type | 2.8 mm, 3.6 mm, 6 mm fixed focal lens |
| Focal Length & FOV | 2.8 mm: H FOV: 98°, V FOV: 51°, D FOV: 115°3.6 mm: H FOV: 76°, V FOV: 41°, D FOV: 90°6 mm: H FOV: 50°, V FOV: 27°, D FOV: 58° |
| Lens Mount | M12 |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 20 m |
| Smart Supplement Light | Yes |
| Image | |
| Image Parameters Switch | STD / HIGH-SAT / HIGHLIGHT |
| Image Settings | Brightness, Mirror, Sharpness, Anti-Banding, AGC |
| Frame Rate | TVI: 1080p@25fps/30fpsCVI: 1080p@25fps/30fpsAHD: 1080p@25fps/30fpsCVBS: PAL/NTSC |
| Day/Night Mode | Color |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | DWDR, BLC, HLC, Global |
| Noise Reduction | 3D DNR / 2D DNR |
| White Balance | Auto / Manual |
| Interface | |
| Video Output | Switchable TVI / AHD / CVI / CVBS |
| General | |
| Material | Metal |
| Dimension | Φ 85.1 mm × 77.62 mm (Φ 3.35" × 3.05") |
| Weight | Approx. 320 g (0.71 lb) |
| Operating Condition | -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) |
| Communication | HIKVISION-C |
| Language | English |
| Power | 12 VDC ± 25%, Max. 2.4 W*Use one power adapter per camera recommended |
| Approval | |
| Protection | IP67 |
