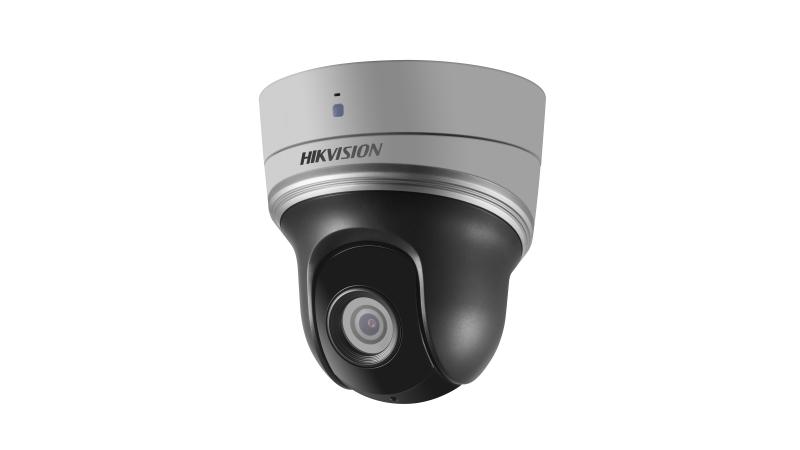

Hikvision - DS-2DE2204IW-DE3 - 2-inch 2 MP 4X IR Network Speed Dome
Part number:
DS-2DE2204IW-DE3
Price:
2-inch 2 MP 4X IR Network Speed Dome Camera
Features:
- High quality imaging with 2 MP resolution
- Clear imaging against strong back lighting due to 90 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 4x optical zoom allows for closer viewing of subjects in expansive areas
- Up to 20m IR range ensures safety at night
| Camera Module | DS-2DE2204IW-DE3 |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Minimum Illumination | Color: 0.05 lux @ (ƒ/2.0, AGC on), B/W: 0.005 lux @ (ƒ/2.0, AGC on) |
| Day/Night | IR cut filter |
| Focus Mode | Auto |
| Shutter Speed | 1/1 to 1/10,000s |
| Digital Zoom | 16x |
| White Balance | Auto/manual/ATW (auto tracking white balance)/indoor/outdoor/daylight lamp/sodium lamp |
| AGC | Auto/manual |
| Backlight Compensation | Yes |
| Wide Dynamic Range | Yes |
| Privacy Mask | 8 programmable privacy masks |
| Lens | - |
| Focal Length | 2.8 mm to 12 mm, 4x |
| Field of View | 100° to 25° (wide−tele) |
| Working Distance | 10 mm to 1500 mm (wide−tele) |
| Zoom Speed | Approximately 2s (optical lens, wide−tele) |
| Aperture Range | ƒ/1.8 to ƒ/2.5 |
| Smart | - |
| Smart Detection | Intrusion, line crossing, audio exception, motion, and video tampering |
| Smart Recording | Edge storage, smart search in smart NVR, and VCA playback |
| Smart Image Enhancement | HLC |
| Smart Encoding | Low bitrate, and ROI (Region of Interest) encoding |
| Smart Alarm | Alarm for network disconnection, IP address conflict, HDD full, HDD error, and illegal login |
| Network | - |
| Stream | Supports three streams |
| Main Stream | 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream | 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Audio Compression | G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK |
| Simultaneous Live View | Up to 20 users |
| User/Host | Up to 32 users, 3 levels: administrator, operator, and user |
| Security Measures | User authentication (ID and PW), host authentication (MAC address), IP address filtering, HTTPS encryption, and IEEE 802.1x port-based network access control |
| Movement Range | Pan: 350°, tilt: 0° to 90° |
| Movement Speed | Pan: 0.1° to 60°/s, tilt: 0.1°to 50°/s |
| Presets | 300 |
| Patrol | 8 patrols, up to 32 presets per patrol |
| Park Action | Preset/patrol/auto scan/tilt scan/random scan/frame scan/panorama scan |
| Power-off Memory | Yes |
| Position Display | On/off |
| IR Distance | Up to 65.6 ft (20 m) |
| Smart IR | Yes |
| Alarm I/O | 1 alarm input, 1 alarm output |
| Alarm Linkage | Actions such as send e-mail, notify surveillance center, upload to FTP/memory card/NAS, trigger recording, etc. |
| Audio I/O | 1 audio input, 1 audio output |
| Ethernet | 1 RJ-45 10M/100M Ethernet interface |
| Memory Card | Built-in memory card slot, supports microSD/SDHC/SDXC, up to 128 GB |
| Client | iVMS-4200 |
| Web Browser | IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+ |
| General | - |
| Language (Web Browser Access) | 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Working Temperature | -14° to 122° F (-10° to 50° C) |
| Working Humidity | ≤90% non-condensing |
| Protection Level | 4,000 V lightning protection, and surge protection |
| Dimensions | Φ4.9" × 5.4" (Φ125 mm × 137.2 mm) |
| Weight | Approximately 1.4 lb (0.65 kg) |
