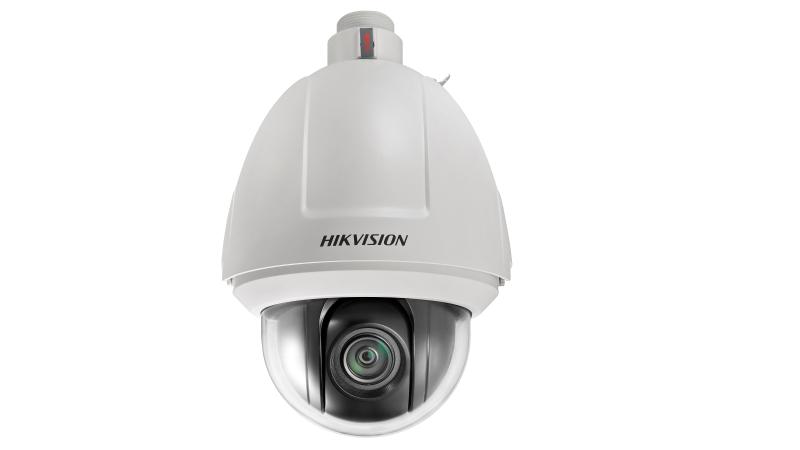

HIKVISION - DS-2DF5232X-AEL - PTZ O 2MP 32X H265+ PoE+/24V
Part number:
DS-2DF5232X-AEL
Price:
5 Series 2 MP 32X DarkFighter Network Speed Dome Camera
Features:
- 1/2.8" progressive scan CMOS
- High quality imaging with 2 MP resolution
- Excellent low-light performance with DarkFighter technology
- 32× optical zoom and 16× digital zoom provide close up views over expansive areas
- 120 dB WDR, 3D DNR, HLC
- Water and dust resistant (IP66) and vandal resistant (IK10)
| DS-2DF5232X-AE3 (D) | DS-2DF5232X-AEL (D) | |
| Camera Module | ||
| Minimum Illumination | Color: 0.002 lux @ (ƒ/1.2, AGC on) B/W: 0.0002 lux @ (ƒ/1.2, AGC on) |
| Shutter Speed | 1/1 s to 1/30,000 s |
| White Balance | Auto/manual/ATW (auto-tracking white balance)/indoor/outdoor/fluorescent lamp/sodium lamp |
| AGC | Auto/manual |
| Day/Night | IR cut filter |
| Digital Zoom | 16x |
| Privacy Mask | 24 programmable polygon privacy masks |
| Focus Mode | Auto/semi-automatic/manual |
| 3D DNR | Yes |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Defog | Yes |
| EIS | Yes |
| Regional Exposure | Yes |
Lens
| Zoom Speed | Approximately 5.6 s (optical lens, wide−tele) |
| Field of View | Horizontal field of view: 58.4° to 2.14° (wide−tele) Vertical field of view: 33.8° to 1.2° (wide-tele), diagonal field of view: 65.6° to 2.46° (wide−tele) |
| Working Distance | 10 mm to 1500 mm (wide−tele) |
| Aperture Range | ƒ/1.2 to ƒ/4.4 |
PTZ
| |
| Pan Speed | Configurable, from 0.1°/s to 300°/s, Preset Speed: 540°/s |
| Movement Range (Tilt) | From -5° to 90° |
| Tilt Speed | Configurable, from 0.1°/s to 240°/s, Preset Speed: 400°/s |
| Proportional Zoom | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-Off Memory | Yes |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
Network
Main Stream | 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720), 60 fps (1920 × 1080, 1280 × 960, 1280 × 720) |
Sub-Stream | 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
Third Stream | 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
SVC | Yes |
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG H.264 with Baseline/Main/High Profile |
Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour |
| Simultaneous Live View | Up to 20 channels |
User/Host | Up to 32 users, 3 levels: Administrator, Operator, and User |
| General | |
| Installation Indoor | Outdoor |
Power 24 VAC (maximum 25 W), Hi-PoE (maximum 25 W) | VAC (maximum 60 W, including maximum 40 W for heater), Hi-PoE (maximum 50 W, including maximum 20 W for heater) |
 10° to 50° C (14° to 122° F) | -40° to 70° C (-40° to 158° F) |
