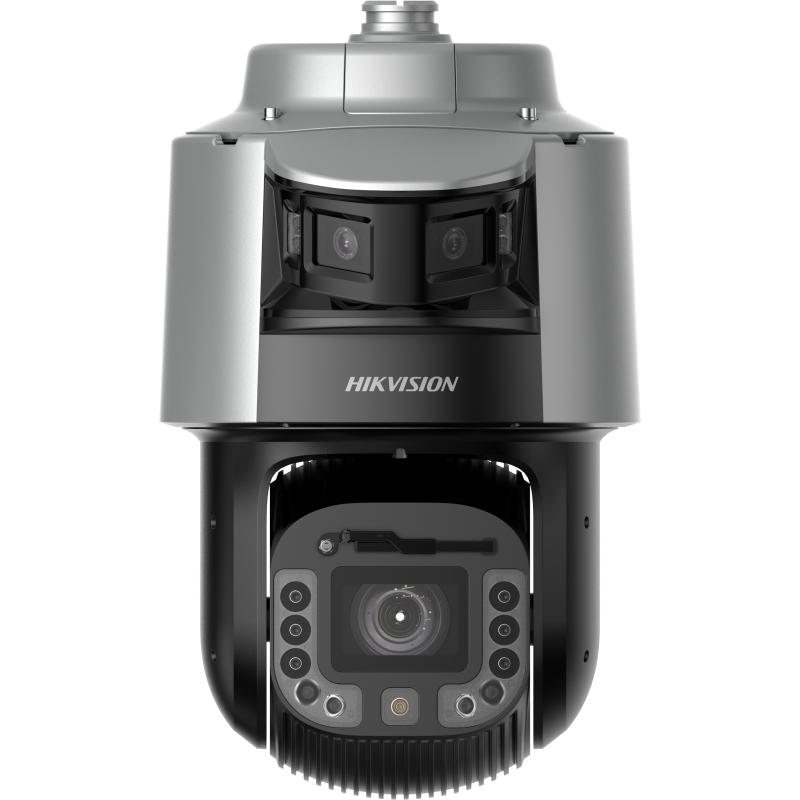

HIKVISION - DS-2SF8C442MXG-ELW/26 F0 - TandemVu PTZ 4MP 42X FOV 190°
TandemVu 8C Series Panoramic 4 MP 42X DarkFighter Network Speed Dome Camera
Features:
- Captures a large area and great details at the same time
- High quality imaging with 6 MP resolution for bullet channel
- 24/7 colorful imaging and excellent low-light performance with DarkFighter technology
- Panoramic channel tilt adjustable from 12° to 24°
- Secures an expansive area with 42 × optical zoom and 16 × digital zoom
- Expansive night view with up to 30 m white light distance and 300 m IR distance
- Supports deep learning functions
- Water and dust resistant (IP67) and vandal resistant (IK10)
| Specification | |
| Camera | |
| Image Sensor | [Panoramic channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS |
Min. Illumination |
[PTZ channel] Color: 0.0005 Lux @ (F1.3, AGC ON), B/W: 0.0001 Lux @ (F1.3, AGC ON), 0 lux with IR,[Panoramic channel] Color: 0.0005 Lux @ (F1.4, AGC ON), B/W: 0.0001 Lux @ (F1.4, AGC ON), 0 Lux with light |
| Shutter Speed | 1 s to 1/30000 s |
| Slow Shutter | Yes |
| Day ＆ Night | [Panoramic channel] Color, [PTZ channel] IR cut filter |
| Zoom | [PTZ channel] 42 × optical, 16 × digital |
| Max. Resolution | [Panoramic channel] 3632 × 1632, [PTZ channel] 2560 × 1440 |
| Lens | |
FOV | [Panoramic channel] horizontal field of view: 190° ± 5°, vertical field of view: 80°±5°, [PTZ channel] horizontal field of view: 59° to 2°, vertical field of view: 34.2° to 11°, diagonal field of view: 67.1° to 2.3° |
| Zoom Speed | [Panoramic channel] No, [PTZ channel] approx. 5.6 s |
| Focus | Auto,semi-auto,manual |
| Focal Length | [Panoramic channel] 2.8 mm, [PTZ channel] 6 to 252 mm |
| Aperture | [Panoramic channel] F1.0, [PTZ channel] F1.3 |
| Illuminator | |
| Supplement Light Range | [Panoramic channel] white light: up to 30 m, [PTZ channel] IR: up to 300 m |
| Smart Supplement Light | Yes |
| PTZ | |
| Movement Range (Pan) | 360° endless |
| Movement Range (Tilt) | [Panoramic channel] 12° to 24°, [PTZ channel] -20° to 90° |
| Pan Speed | [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s |
| Tilt Speed | [PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s,[Panoramic channel] tilt speed configurable |
| Proportional Pan | [Panoramic channel] No, [PTZ channel] Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Yes |
| Park Action | Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output |
| Video | |
Main Stream | [PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720),[Panoramic channel] 50 Hz: 25 fps (3680 × 1656，3632 × 1632), 60 Hz: 30 fps (3680 × 1656，3632 × 1632) |
Sub-Stream | [PTZ channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 576，640 × 480，352 × 288),[Panoramic channel] 50 Hz: 25 fps (1200 × 536、960x432), 60 Hz: 30 fps (1200 × 536、960x432) |
Third Stream | [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),[Panoramic channel] No |
Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline profile,Main profile,High profile |
| H.265 Type | Main profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Audio | |
| Audio Compression | G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC |
| Audio Bit Rate | 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz,16 kHz,32 kHz,48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| API | ISAPI,SDK,ISUP,ONVIF |
| Network Storage | NAS (NFS, SMB/CIFS),auto network replenishment (ANR) |
| Protocols | IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,T CP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
Security | Password protection,complicated password,IP address filter,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),watermark |
| Client | iVMS-4200,HikCentral Pro,Hik-Connect |
| Web Browser | IE 10+, Chrome 57+, Firefox 52+, Safari 12+ |
| Image | |
| Wide Dynamic Range (WDR) | [Panoramic channel] 120 dB, [PTZ channel] 120 dB |
| Day/Night Switch | Day,night,auto,schedule |
| Image Enhancement | HLC,3D DNR |
| Privacy Mask | [Panoramic channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable |
| Defog | Optical defog |
| Image Stabilization | EIS (Built-in gyroscope to improve EIS performance) |
| Regional Exposure | Yes |
| Regional Focus | [Panoramic channel] No, [PTZ channel] Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Image Parameters Switch | Yes |
| SNR | ≥ 52 dB |
| Supplement Detection | |
| Satellite Positioning | No |
| Gyroscope | Yes |
| Compass | No |
| Interface | |
| Ethernet Interface | 1 RJ45 100M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Alarm | 7 input(s), 2 output(s) |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset | Yes |
| Event | |
| Basic Event | [PTZ channel & panoramic channel] alarm input and output, exception,[PTZ channel] motion detection, video tampering alarm |
Smart Event | [Panoramic channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection |
Linkage | [Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) |
| Smart Tracking | [PTZ channel] yes |
| Smart Linkage | Manual tracking, tracking takeover, linked tracking capture |
| Deep Learning Function | |
| Multi-Target-Type Detection | [PTZ channel] Supports simultaneous detection and capture of human body and face |
| Perimeter Protection | PTZ and Panoramic channel both support |
| General | |
| General Function | mirror,password protection |
Power | 36 VDC ± 25%, max. 60 W, Hi-PoE,including max. 6 W for heater and max. 3 W for supplement light of panoramic channel, and max. 6 W for heater and max. 12 W for supplement light of PTZ channel |
| Operating Condition | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F) |
| Wiper | Yes |
| Demist | Yes |
| Material | ADC12 |
| Dimension | Ø290 mm × 453.2 mm (Ø11.42" × 17.84") |
| Weight | Approx. 10.5 kg (23.15 lb.) |
