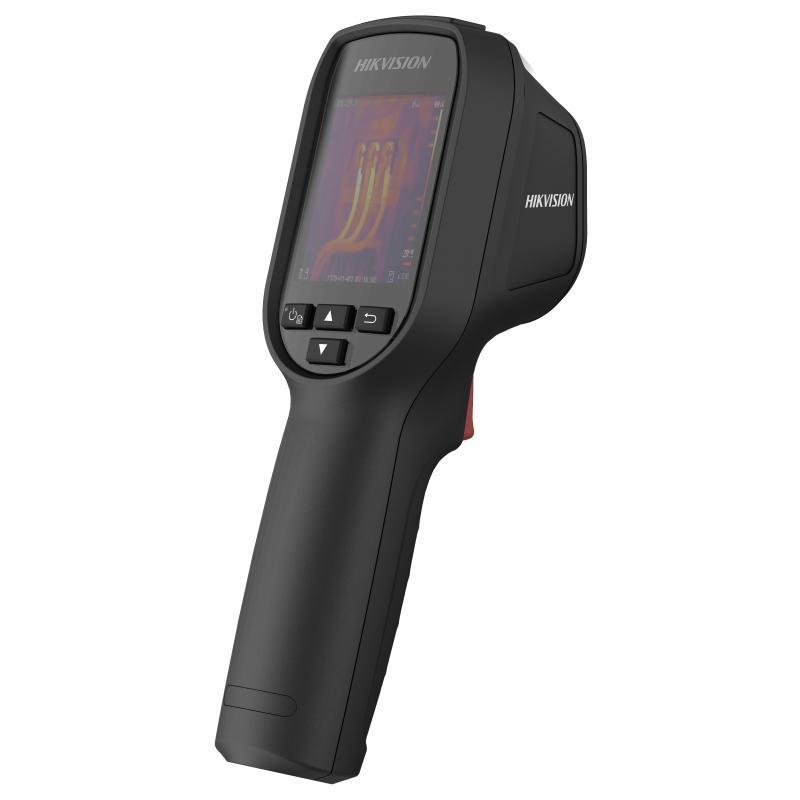

HIKVISION - DS-2TP31B-3AUF - Thermographic Handhled
Part number:
DS-2TP31B-3AUF
Price:
The Temperature Screening Handheld Thermography Camera, specially designed for surface temperature measurement. It’s equipped with a 160 × 120 resolution thermal detector. It helps to detect high temperature quickly. Note that the device is not for medical use.
Features:
- High sensitivity sensor with 160 x 120 resolution
- High quality 320 x 240 resolution 2.4'' LCD display
- Up to 4 palettes
- Wide temperature measurement range: 30°C - 45°C
- High temperature measurement accuracy: Up to ±0.5° C
- Built-in rechargeable Li-ion battery
- Up to 8 hours continuous operation
Model Parameter | DS-2TP31B-3AUF | |
| Temperature Screening Handheld Thermography Camera | ||
Thermal Module | Image sensor | Uncooled Focal Plane Arrays |
| Max. Resolution | 160 × 120 | |
| Pixel Pitch | 17μm | |
| Response waveband | 8μm to 14μm | |
| NETD | < 40mK (@ 25 °C,F#=1.0) | |
| Field of View | 37.2° × 50 ° | |
| Focal length | 3.1 mm | |
| IFOV | 5.48 mrad | |
| Min. Focus Length | ≥ 150 mm | |
| Aperture | F 1.1 | |
| Image Display | Monitor | 320 × 240 resolution 2.4’’ LCD display |
| Palettes | Black hot, White hot, Rainbow, Ironbow | |
Thermography | Rules | Max. Temperature; Min. Temperature; Center Temperature |
| Thermographic Range | 30 °C to 45 °C | |
| Thermographic Accuracy | ± 0.5 °C | |
| Battery | Battery Type | Rechargeable Lithium Battery |
| Battery Operating Time | 8 hours continuous running @ 25 °C | |
Function | Storage | Replaceable memory card (default 8 G, support up to 128 G storage) |
| Photo | Thermal image | |
General | Language | English |
| Power | 3.7 VDC/0.4 A | |
| Power Consumption | Less than 1.2 W | |
| Hardware Interface | micro USB | |
| Working Temperature | 10 °C to 35 °C (50 °F to 95 °F) | |
| Protection level | IP54 | |
| Drop Test Height | 2 m (6.56 feet) | |
| Dimension | 196 mm × 117 mm × 59 mm (7.7″ × 4.6″ × 2.3″) | |
| Weight | Less than 350 g (0.77 lb) | |
