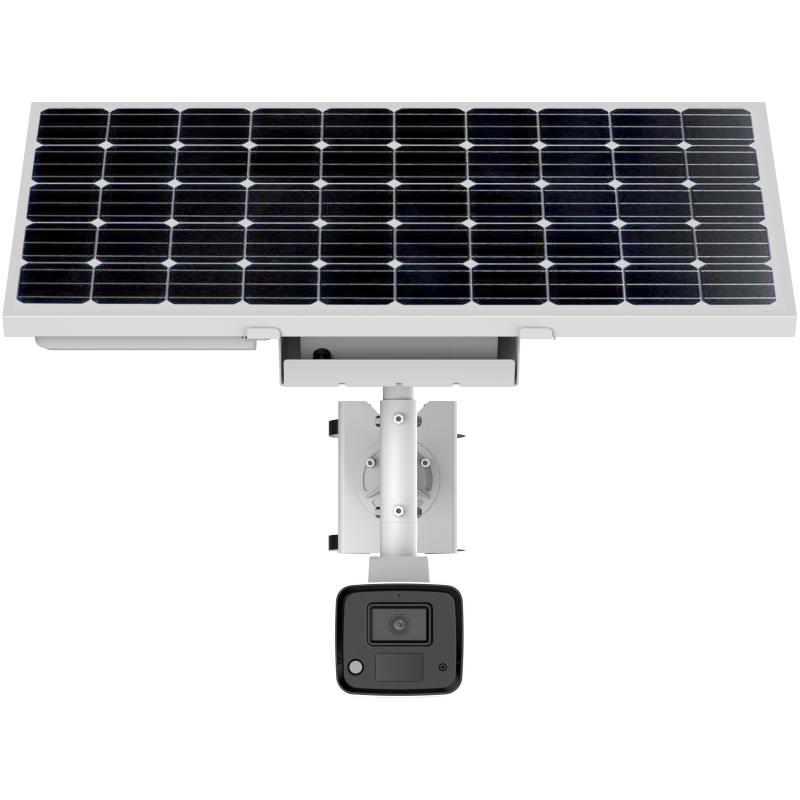

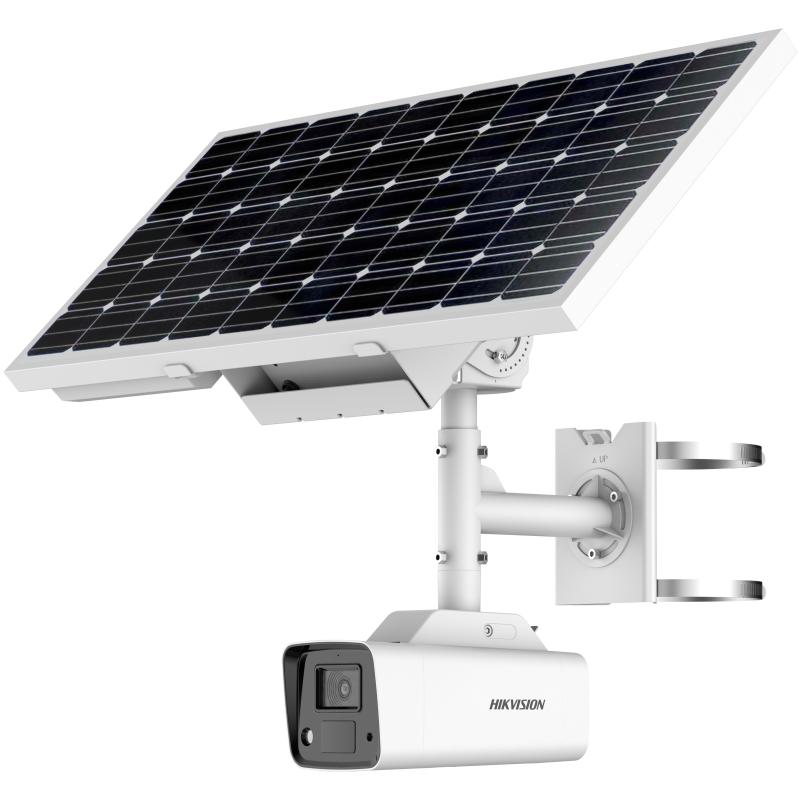

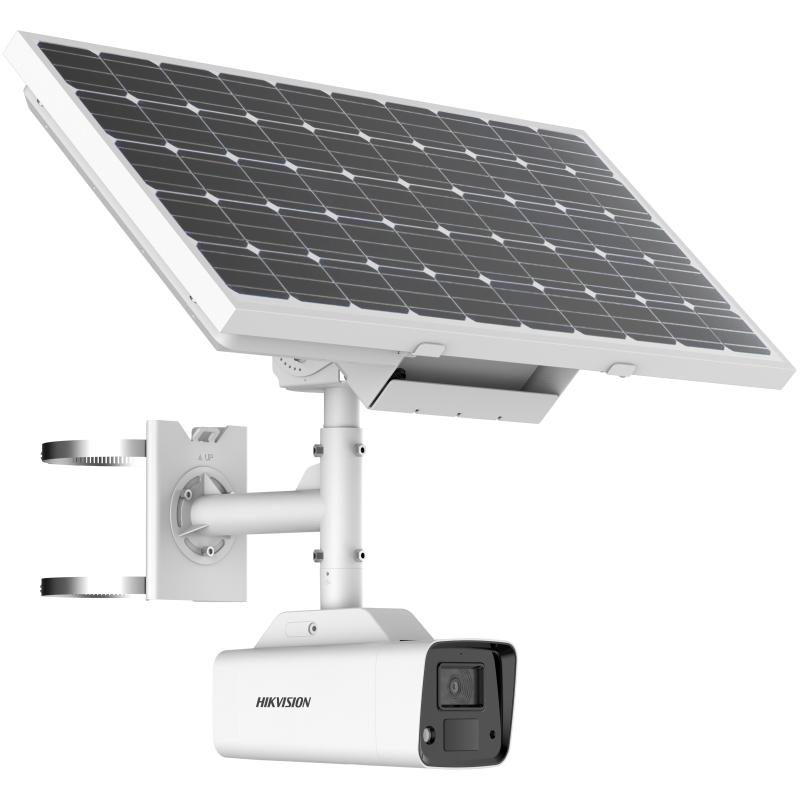

HIKVISION - DS-2XS2T47G1-LDH/4G/C18S40 - 4MP Solar ColorVu PIR Human
Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses, high performance sensors and friendly lighting. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light.
Features:
- High quality imaging with 4 MP resolution
- Standalone with solar panel and built-in battery
- 24/7 colorful imaging
- Support Human Detection
- Efficient H.265+ compression technology
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP67)
- Stability against category 12 typhoon
- Support 4G (LTE-TDD/LTE-FDD/TD-SCDMA) communication
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | 24/7 color imaging |
| Angle Adjustment | Solar panel: pan: 0° to 358°, tilt: -40° to 0°; camera: pan: 0° to 360°, tilt: -60° to 0° |
| Lens | |
| Lens Type | Fixed focal lens, 4 and 6 mm optional |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 4 mm: 2.7 m to ∞ 6 mm: 5.9 m to ∞ |
| Focal Length & FOV | 4 mm, Horizontal FOV: 75°, Vertical FOV: 40°, Diagonal FOV: 89° 6 mm, Horizontal FOV: 49°, Vertical FOV: 27°, Diagonal FOV: 57° |
| Lens Mount | M12 |
| DORI | |
| DORI | 4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m 6 mm, D: 120 m, O: 47 m, R: 24 m, I: 12 m |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Performance mode: up to 30 m, proactive mode: up to 10 m |
| Smart Supplement Light | Yes |
| Video | |
| Main Stream | 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360) |
Video Compression | Main stream: H.265/ H.264, Sub-stream: H.265/H.264/MJPEG, H.264+ and H.265+: main stream supports under performance mode |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region(s) for main stream |
| Audio | |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Network | |
| API | ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK, ISUP, OTAP |
| Security | Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface |
| Simultaneous Live View | Up to 6 channels |
| Protocols | TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Network Storage | Auto Network Replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
Web Browser | Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+ |
| Mobile Communication | |
| SIM Card Type | Micro SIM |
| Uplink and Downlink Data Rate | Cat 4, uplink: 50 Mbps Mbps, downlink: 150 Mbps |
Frequency | NL668-EU: LTE-TDD: B38/B40/B41 LTE-FDD: B1/B3/B5/B7/B8/B20/B28 WCDMA: B1/B5/B8 GSM: B3/B5/B8 NL668-LA: LTE-TDD: B38/B40 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66 WCDMA: B1/B2/B3/B4/B5/B8 GSM: B2/B3/B5/B8 NL668-US: LTE-FDD: B2/B4/B5/B12/B13/B17/B66/B71 WCDMA: B2/B4/B5 |
| Standard | LTE-TDD, LTE-FDD, WCDMA, GSM |
| Image | |
| SNR | ≥ 52 dB |
| Wide Dynamic Range (WDR) | Digital WDR |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Interface | |
On-Board Storage | Built-in eMMC storage, up to 64 GB, Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB, For eMMC storage, 50 GB is available for recording. |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Linkage | Upload to memory card, notify surveillance center, trigger recording, trigger capture, audible warning |
| General | |
Power | Power Consumption and Current: Typical power scenarios: 1.85 W (4G working) Standby scenarios: 40 mW Max. power consumption: 6 W Power Supply: 12 VDC ± 25% *For debugging only 40 W (deviation: ± 2 W) Solar panels Power Interface: Power supply interface: Ø5.5 mm coaxial power plug Extened solar panel: four-core aviation connector |
| Material | ADC12 |
| Storage Conditions | 0 °C to 60 °C (32 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Ukranian |
| General Function | Heartbeat, mirror, flash log |
Startup and Operating Conditions | 0 °C to 60 °C (32 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Dimension | 679 mm × 443 mm × 760 mm (26.7" × 17.4" × 29.9") |
| Package Dimension | 910 mm × 350 mm × 450 mm (35.8" × 13.8" × 17.7") |
| Weight | Approx. 11.575 kg (25.5 lb.) |
| With Package Weight | Approx. 16.21 kg (35.7 lb.) |
| Battery | |
| Battery Type | Ternary Lithium |
| Capacity | 8.4 Ah × 2 packs |
| Max. Charging Voltage | 12.6 V |
| Operating Temperature | Charging: 0 °C to 45 °C (32 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F) |
| Battery Voltage | 9 V to 12.6 V |
Cycle Lifetime | Performance mode: 3.6 days, Proactive mode: 6 days, Standby mode: 30 days |
| Battery Life | More than 500 cycles |
| Battery Weight | Approx. 1400 g (3.1 lb.) |
| Approval | |
| EMC | CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014 |
| RF | CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G) |
| Safety | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
