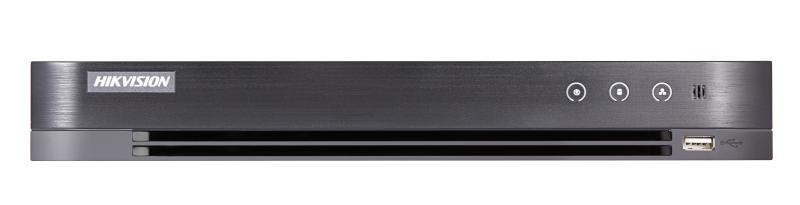

HIKVISION - DS-7204HQHI-K1-1TB - TRI DVR 4-ch 2MP H.265 1TB
Part number:
DS-7204HQHI-K1-1TB
Price:
4-ch 1080p 1U H.265 DVR
Features:
- 4 channels and 1 HDD 1U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 6 network cameras can be connected
| Specification | |
|---|---|
| Recording | |
| Video Compression | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| Encoding Resolution | Without 1080p Lite: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIFWith 1080p Lite: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Frame Rate | Main stream:Without 1080p Lite:- 4 MP stream: 4 MP lite@15fps; others@25fps (P)/30fps (N)- 3 MP stream: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps- 1080p stream: 1080p/720p@15fps; others@25fps (P)/30fps (N)- 720p stream: 720p and below@25fps (P)/30fps (N)With 1080p Lite:- 4 MP lite/3 MP@15fps; others@25fps (P)/30fps (N)Sub-stream:- WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| Dual Stream | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bit Rate | 64 Kbps |
| Video and Audio | |
| IP Video Input | 2-ch (up to 6-ch), up to 6 MP resolution, supports H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 4-ch BNC interface (1.0 Vp-p, 75 Ω), coaxitron supported |
| AHD Input | 4 MP, 1080p25/30, 720p25/30 |
| HDCVI Input | 1080p25/30, 720p25/30 |
| CVBS Input | PAL/NTSC |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (uses first audio input) |
| Synchronous Playback | 4-ch |
| HDTVI Input | 4 MP, 3 MP*, 1080p30/25, 720p60/50/30/25*3 MP only on specific channels depending on model |
| VGA/HDMI Output | 1-ch, 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), PAL: 704×576, NTSC: 704×480 |
| Network | |
| Remote Connections | 32 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Network Interface | 1 × RJ45 10M/100M self-adaptive Ethernet |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 10 TB per disk |
| Alarm In/Out | N/A |
| USB Interface | 2 × USB 2.0 |
| Serial Interface | RS-485 (half-duplex) |
| General | |
| Power Supply | 12 VDC |
| Working Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Working Humidity | 10% to 90% |
| Dimensions (W × D × H) | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weight (without HDD) | ≤ 1.16 kg (2.6 lb) |
| Power Consumption | ≤ 6 W (without HDD) |
