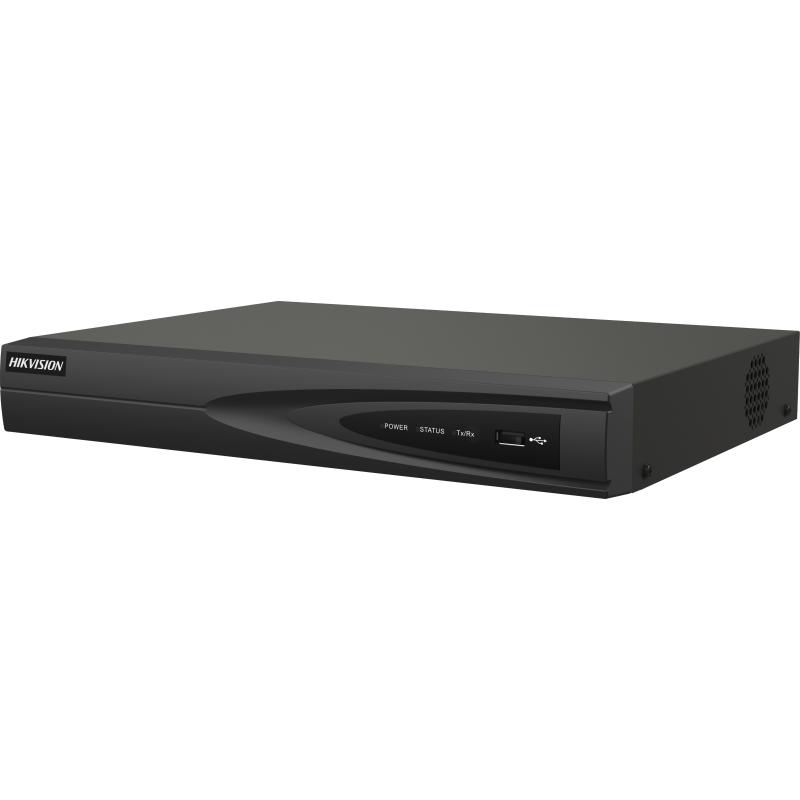

HIKVISION - DS-7604NI-Q1/4P-2TB - 4CH NVR POE 1SATA HDMI 2TB
4-ch 1U 4 PoE 4K NVR 2TB
Features:
- Up to 4-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
- Up to 40 Mbps incoming bandwidth
Professional and Reliability
- 265+ compression effectively reduces the storage space by up to 75%
HD Video Output
- Provide simultaneous HDMI and VGA outputs
- HDMI video output at up to 4K resolution
Storage and Playback
- 1 SATA interface for HDD connection (up to 8 TB capacity per HDD)
- Smart search/smart playback to improve the playback efficiency
Smart Function
- 1-ch Motion Detection 0
- Support multiple VCA (Video Content Analytics) events
- Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, )
Network & Ethernet Access
- 4 independent PoE network interfaces
- 1 self-adaptive 10/100 Mbps Ethernet interface
- Hik-Connect for easy network management
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | 1-ch |
| Video and Audio | |
| IP Video Input | 4-ch |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 80 Mbps |
HDMI Output | 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
| VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Decoding | |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous playback | 4-ch |
Decoding Capability | 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels. |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726 |
| Network | |
| Remote Connection | 32 |
Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 1 RJ-45 10 /100 Mbps self-adaptive Ethernet interface |
| PoE | |
| Interface | 4-ch, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 50 W |
| Standard | IEEE 802.3 af/at |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 8 TB capacity for each disk |
| USB Interface | 2 × USB 2.0 |
| Alarm In/Out | N/A (4/1 is optional) |
