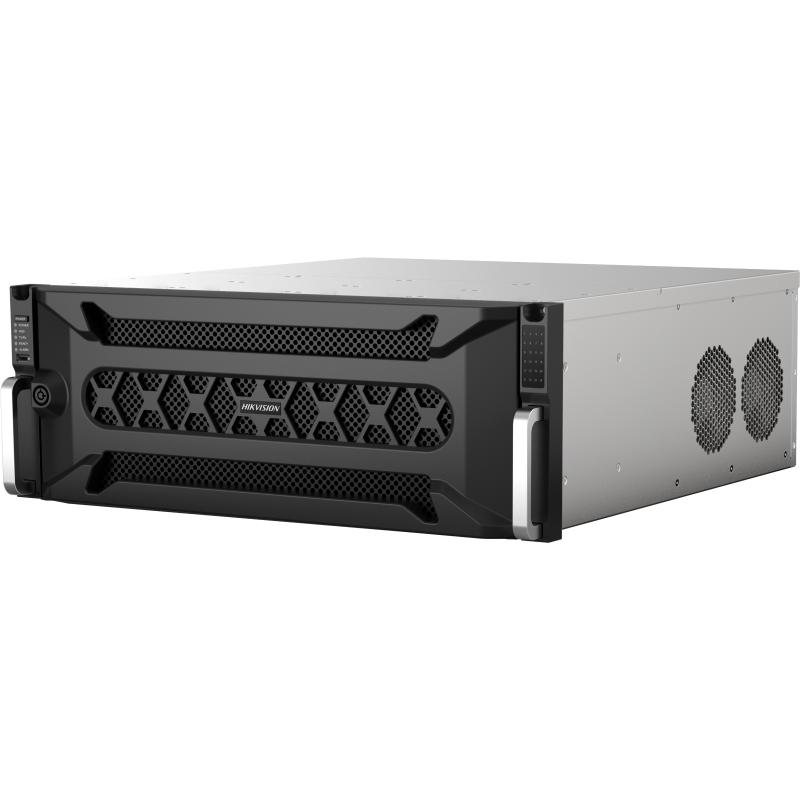

Hikvision - DS-96128NI-I24/H - NVR 128CH 8-HDMI 24SATA NOHDD
128-ch 4U 4K Super NVR
Features:
- Up to 128 channel IP cameras can be connected
- Up to 768 Mbps high incoming bandwidth ensures IP cameras can be connected
- 2 HDMI interfaces (different source), 1 VGA interfaces, and 1 decoding board
- 24 HDD can be used for continuous video recording
- Redundant power supply improves system stability
- Supports some special cameras, including people counting camera/ANPR(automatic number plate recognition) camera/fisheye camera
- Advanced streaming technology enables smooth live view in poor network conditions
- Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
Professional and Reliable
- New logical and visualized GUI
- Adopts professional embedded hardware and software, and pioneering dual-OS design to ensure the reliability of system
- Supports redundant power supply to improve the system
- Supports HDD hot swap with RAID0, RAID1, RAID5, RAID 6, and RAID10 storage scheme
- Either normal or hot spare working mode is configurable to constitute an N+1 hot spare
Video Input and Transmission
- Up to 128/256 IP cameras can be
- Support live view, storage, and playback of the connected camera at up to 12 megapixels
- 265+ compression effectively reduces the storage space by up to 75%.
- 4 self-adaptive 10M/100M/1000M network
- Adopt stream over TLS encryption technology (enhanced SDK service and RTP over HTTPS protocol)
- Connectable to the third-party network cameras like ACTI, Arecont, AXIS, Bosch, Brickcom, Canon, ONVIF, PANASONIC, Pelco, SAMSUNG, SANYO, SONY, Vivotek and ZAVIO.
HD Output
- Simultaneous HDMI 1/VGA output as the main output and the HDMI 2 works as the auxiliary
- HDMI and VGA1 simultaneous outputs by Asynchronous outputs configurable.
- Video outputs at up to 4K (4096×2160)
- Supports decoding up to 20 channels at 1080p
HD Storage
- Up to 24 SATA interfaces and 1 eSATA interface provided for HDD
- 10 TB capacity for each HDD.
- HDD health
- Supports HDD quota and group modes; different capacity can be assigned to different
- Normal/Important/Custom video
Various Applications
- Centralized management of IP cameras is supported, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
- Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be
- VCA detection alarm is
- VCA search for facial detection, people counting, heat map,
- Supports starting record with one
- Realizes instant playback for assigned channel during multi-channel display
- Smart search for the selected area in the video; and smart playback to improve the playback
| Model | DS-96128NI-I24/H | DS-96256NI-I24/H | |
Video & Audio input | IP video input | 128-ch | 256-ch |
Incoming/outgoing bandwidth | 768 Mbps/512 Mbps | 768 Mbps/768 Mbps | |
Incoming/outgoing bandwidth (RAID mode) | 768 Mbps/512 Mbps | 768 Mbps/768 Mbps | |
| TLS outgoing bandwidth | 128 Mbps, or 64 Mbps (when RAID is enabled) | ||
| Protocol | HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO | ||
Video & Audio output | HDMI output | Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160) /30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz | |
| VGA output | 1-ch. Resolution: 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz | ||
| LCD output (optional) | One 7 inch LCD | ||
| Audio output | 1-ch. RCA (2.0 Vp-p, 1 KΩ) | ||
Video & Audio decoding | Decoding format | H.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only) | |
| Video resolution | 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 to 4 when ultra HD resolution mode is enabled. | ||
| Synchronous playback | Up to 16 channels | ||
| Capability | 1-ch@32 MP (8160 × 3616, 30 fps)/5-ch@8 MP(30 fps)/10-ch@4 MP(30 fps)/20-ch@1080p(30 fps)/40-ch@720p(30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels. | ||
| HDD | Interface | 24 SATA interfaces supporting hot-plug | |
| Capacity | Up to 10 TB for each HDD | ||
| Storage extension | 1 × eSATA interface, 2 × mini SAS interface (optional) | ||
| RAID | RAID Type | RAID0, RAID1, RAID5, RAID 6, and RAID10 | |
Network management | Protocol | IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS | |
| Network interface | 4, RJ45 10M/100M/1000M self-adaptive Ethernet interface | ||
| External interface | Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) | |
| Serial port | RS-232; RS-485; Keyboard | ||
| USB interface | Front Panel: 1 × USB 2.0; Rear Panel: 2 × USB 3.0 | ||
| Alarm input/output | 16/8 | ||
| Decoding board | 1 | ||
Extension board (optional) | One extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs. | ||
| General | Power supply | 100 to 240 VAC, 50 to 60Hz, 5 A | |
| Fan | Redundant dual ball bearing fan; Speed adjustable | ||
Consumption (without HDD) | ≤ 140W | ||
| Working temperature | 0 °C to + 50 °C (32 °F to 122 °F) | ||
| Working humidity | 10% to 90% | |
| Dimension (W × D × H) | 447 × 528 × 172mm (17.6 × 20.8 × 6.8 inch) | |
| Weight (without HDD) | ≤ 23 kg (50.7 lb) |
| Video wall management | HDMI output/input | 6/1 |
HDMI output resolution | 4K (3840x2160)/60Hz, 4K (3840x2160)/30Hz, 2K (2560x1440)/60Hz, 1080p (1920x1080)/60Hz, SXGA (1280x1024)/60Hz, 720p (1280x720)/60Hz, XGA (1024x768)/60Hz | |
| HDMI input resolution | 1080p (1920x1080), SXGA (1280x1024), 720p 1280x720), XGA (1024x768) | |
| Decoding capacity | 48-ch@1080p | |
| Decoding resolution | 12 MP/8 MP/7 MP/6 MP/5 MP/3 MP/1080p/UXGA/720p/VGA/4CIG/DCIF/2CIF/CIF/QCIF | |
| Collage | Supported | |
| Auto-switch | Supported | |
| Open window | Supported | |
| Layer overlay | Supported | |
| Window roaming | Supported | |
Display local signal source on video wall | Supported |
