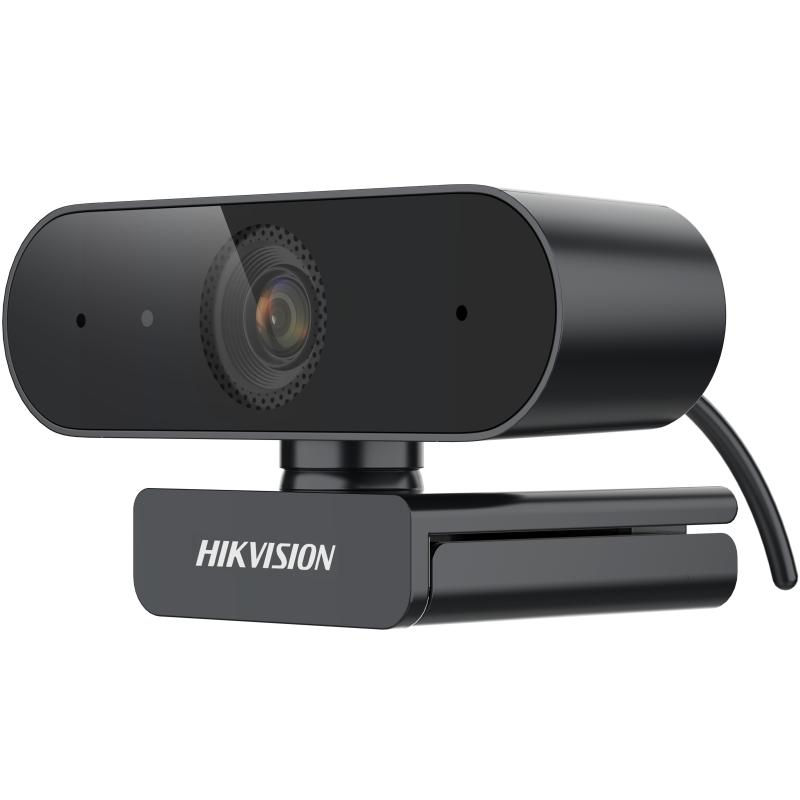

HIKVISION - DS-U02 - USBCAM 2MP 3.6MM
Part number:
DS-U02
Price:
2 MP Web Camera
Features:
- 2 MP CMOS
- High quality imaging with 1920 × 1080 resolution
- Min. illumination: 0.1 Lux @ (F1.2, AGC ON)
- AGC for self-adaptive brightness
- Built-in microphone with clear sound
- Type A interface, supporting USB 2.0 protocol. Plug-and-play, no need to install driver software
| Specification | |
| Camera | |
| Image Sensor | 2 MP CMOS |
| Signal System | PAL/NTSC |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.1 Lux @ (F1.2, AGC ON) |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Day & Night | 24/7 Color Imaging |
| Angle Adjustment | pan: 360°; tilt: -15° to 15°; ratation: 0° |
| Lens | |
| Lens Type | 3.6 mm fixed focal lens |
| Focal Length & FOV | horizontal FOV: 86°, vertical FOV: 55°, diagonal FOV: 95° |
| Lens Mount | M8 |
| Object Distance Range | 0.5 m to ∞ |
| Image | |
| Frame Rate | MJPG:1920 × 1080 @ 30/25 fps1280 × 960 @ 30/25 fps1280 × 720 @ 30/25 fps640 × 480 @ 30/25 fps640 × 360 @ 30/25 fpsYUV:1920 × 1080 @ 5 fps1280 × 960 @ 5 fps1280 × 720 @ 5 fps640 × 480 @ 30 fps640 × 360 @ 30 fps |
| White Balance | Auto |
| Audio | |
| Audio Sampling Rate | 16 kHz |
| Interface | |
| Video Output | USB 2.0 |
| Audio | Built-in mic |
| Indicator | White: Normally WorkingLight Off: Standby |
| General | |
| Operating Condition | -10°C to 45°C, Humidity: 90% or less (non-condensing) |
| Material | Plastic |
| Dimension | 80.16 mm × 48.6 mm × 42.18 mm (3.16" × 1.91" × 1.66") |
| Weight | Approx. 89 g (0.2 lb.) |
| Packing List | Camera × 1Quick Start Guide × 1 |
| Power | DC 5V ± 5% (USB), Max. 1.2 W |
| Cable Length | 1.5 m |
| System Requirement | Recommended systemsWindows 7/8/10/11Android 8.1 and above versionLinux 4.14 and above versionmacOS 10.12 and above versionChrome OS |
Name
Description
Size
Downloads
File
Datasheet
0.5mb
File
Quick Start Guide
0.5mb
