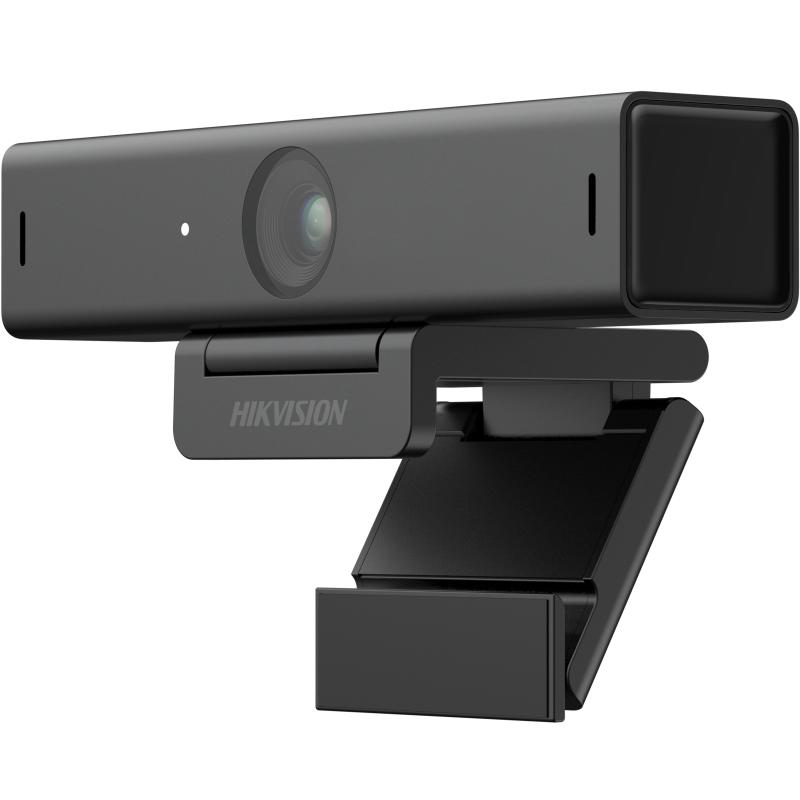

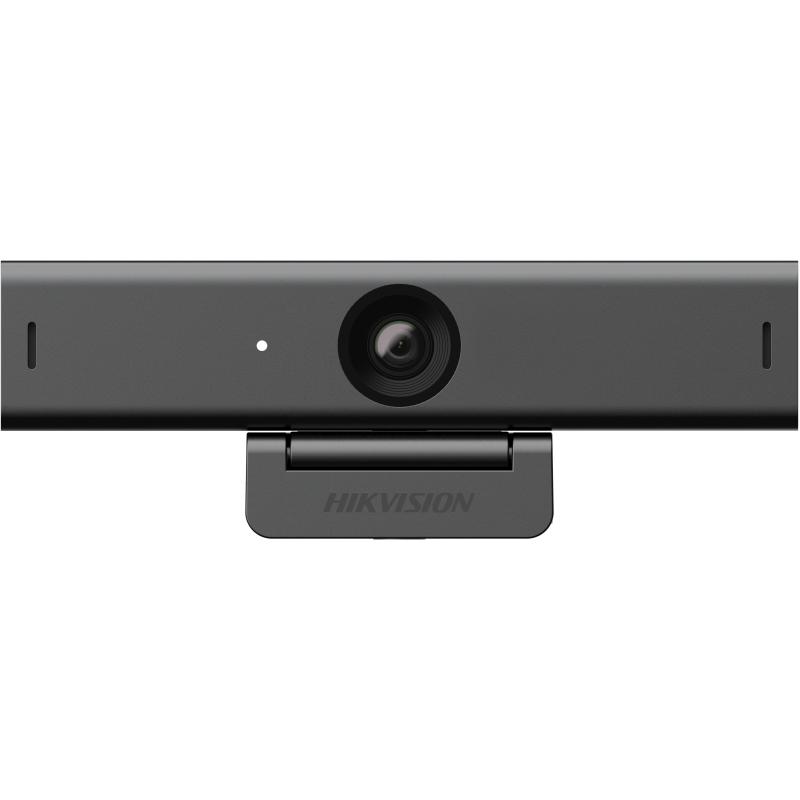

HIKVISION - DS-UC4 - USBCAM 2K 3.6MM
Part number:
DS-UC4
Price:
4 MP Web Camera
Features:
- High quality imaging with 2560 × 1440 resolution
- Low distortion lens for reducing image distortion
- Built-in dual-microphone with clear sound
- USB Type-C interface, supporting USB 2.0 protocols
- Plug-and-play, no need to install driver software
- Support auto focus
| Specification | |
| Camera | |
| Image Sensor | 4 MP CMOS |
| Signal System | PAL/NTSC |
| Max. Resolution | 2560 (H) × 1440 (V) |
| Min. Illumination | 0.1 Lux @ (F1.2, AGC ON) |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Day & Night | 24/7 Color Imaging |
| Angle Adjustment | pan: 0° to 360°; tilt: 0° to 90°; rotation: 0° |
| Digital Zoom | 1.5 × |
| Lens | |
| Lens Type | 3.6 mm fixed focal lens |
| Focal Length & FOV | horizontal FOV: 80°, vertical FOV: 50°, diagonal FOV: 88° |
| Lens Mount | M8 |
| Object Distance Range | 5 cm to ∞ |
| Image | |
| Frame Rate | MJPG：2560 × 1440 @ 30 fps/25 fps1920 × 1080 @ 60 fps/50 fps/30 fps/25 fps1280 × 960 @ 60 fps/50 fps/30 fps/25 fps1280 × 720 @ 60 fps/50 fps/30 fps/25 fps640 × 480 @ 60 fps/50 fps/30 fps/25 fps640 × 360 @ 30 fps/25 fpsYUV2：1920 × 1080 @ 5 fps1280 × 960 @ 5 fps1280 × 720 @ 10 fps640 × 480 @ 30 fps640 × 360 @ 30 fps |
| Wide Dynamic Range (WDR) | Digital WDR |
| White Balance | Auto |
| Audio | |
| Audio Sampling Rate | 16 kHz |
| Interface | |
| Video Output | USB 2.0 |
| Indicator | White: Normally Working |
| Built-in Microphone | 2 built-in microphones, picking up sounds in the radius up to 5 meters |
| General | |
| Operating Condition | -10°C to 40°C (-40°F to 104°F), Humidity: 90% or less (non-condensing) |
| Material | Metal |
| Dimension | 120 mm × 27.9 mm × 25.6 mm (4.72" × 1.10" × 1.01") |
| Weight | Approx. 147 g (0.32 lb.) |
| Packing List | Camera × 1USB Cable × 1Quick Start Guide × 1 |
| Power | DC 5V ± 5% (USB), Max. 2.5 W |
| Cable Length | 2 m |
| System Requirement | Recommended systemsWindows 7/8/10/11 (resolution higher than 1080P is only available in Windows 8.1 and above version)Android 8.1 and above versionLinux 4.14 and above versionmacOS 10.12 and above versionChrome OS |
