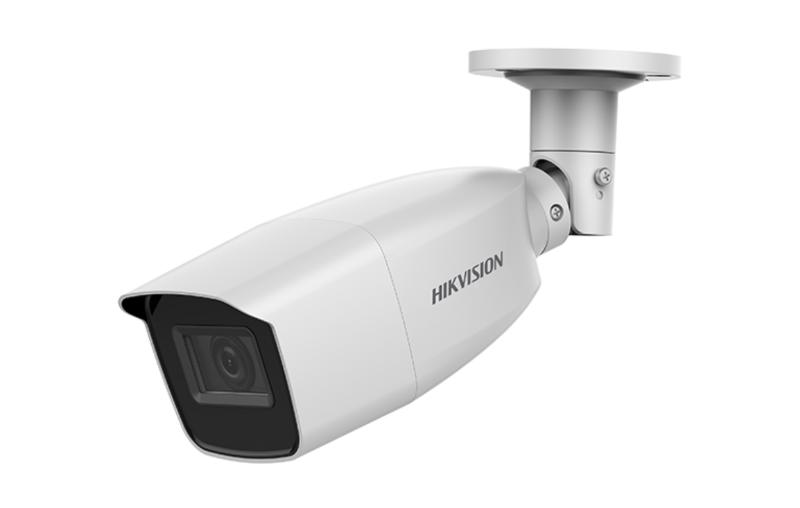

Hikvision - ECT-B32V2 - 2MP Manual Varifocal Bullet Camera
Part number:
ECT-B32V2
Price:
2MP Manual Varifocal Bullet Camera
Features:
- 1080p vari-focal bullet camera
- EXIR 2.0: advanced infrared technology with 40 m IR distance
- Water and dust resistant (IP66)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
| Specification | ||
| Camera | ||
| Image Sensor | 2 MP CMOS | |
| Max. Resolution | 1920 (H) × 1080 (V) | |
| Min. Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time | 1/25 s to 1/50,000 s | |
| Day ＆ Night | IR Cut Filter | |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360° | |
| Signal System | PAL/NTSC | |
| Lens | ||
| Lens Type | 2.8 mm to 12 mm | |
| Focal Length ＆ FOV | 111.5° to 33.4° | |
| Lens Mount | Φ14 | |
| Illuminator | ||
| Supplement Light Type | IR | |
| Supplement Light Range | Up to 40 m | |
| Smart Supplement Light | Yes | |
| Image | ||
| Image Settings | Brightness,Mirror,Sharpness,AGC | |
| Frame Rate | PAL:1080p@25fps NTSC: 1080p@30fps | |
| Day/Night Mode | Auto/Color/BW (Black and White) | |
| Wide Dynamic Range (WDR) | Digital WDR | |
| Image Enhancement | BLC | |
| Noise Reduction | 2D DNR | |
| Interface | ||
| Video Output | Switchable TVI/AHD/CVI/CVBS,1 HD analog output | |
| General | ||
| Power | 12 VDC ± 15%, max. 5 W | |
| Material | Front cover: Metal, Main body: Plastic | |
| Dimension | 256.4 mm × 83.3 mm × 78.2 mm (10" × 3.2" × 3") | |
| Weight | Approx. 605 g (1.33 lb.) | |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing) | |
| Language | English | |
| Approval | ||
| Protection | IP66 | |
