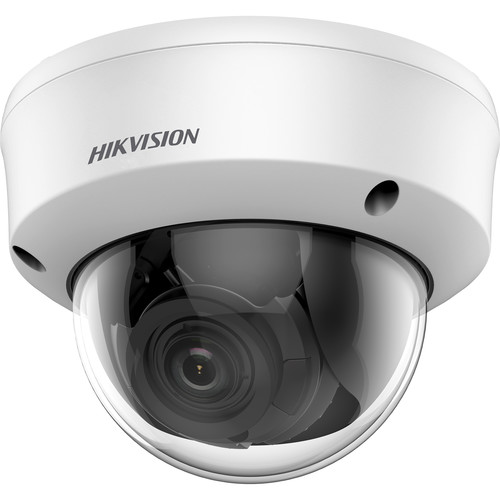

Hikvision - ECT-D32V2 - 2 MP EXIR VF Dome Camera
Part number:
ECT-D32V2
Price:
2 MP EXIR VF Dome Camera
Features:
- 1080p vari-focal bullet camera
- EXIR 2.0: advanced infrared technology with 40 m IR distance
- Water and dust resistant (IP66)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
| Specification | |
| Selection Parameter | |
| Resolution | 2MP |
| Case Type | Dome |
| Length Type | Varifocal Lens |
| IR Distance | 30~60m |
| WDR | DWDR |
| Star Light | N/A |
| Power Supply | DC12V |
| Protection Level | IP66 |
| Video Output | 4 in 1 |
| Camera | |
| Lens | 2.8 mm to 12 mm |
| Horizontal Field of View | 111.5° to 33.4° |
| Lens Mount | Φ14 |
| Day ＆ Night | IR cut filter |
| Synchronization | Internal synchronization |
| Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355° |
| Image Sensor | 2 MP CMOS image sensor |
| Signal System | PAL/NTSC |
| Frame Rate | PAL:1080p@25fps,NTSC: 1080p@30fps |
| Resolution | 1920 (H) × 1080 (V) |
| Min. illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25 (1/30) s to 1/50,000 s |
| Menu | |
| AGC | High/Medium/Low/Off |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Backlight Compensation | Support |
| DWDR (Digital Wide Dynamic Range) | Support |
| Language | English |
| Functions | Brightness, Sharpness, DNR, Mirror, Smart IR |
| Interface | |
| Video Output | 1 HD analog output |
| Switch Button | TVI/AHD/CVI/CVBS |
| General | |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) |
| Power Supply | 12 VDC ± 15% |
| Power Consumption | Max. 4.2 W |
| Material | Metal |
| IR Range | Up to 40 m |
| Dimensions | Ø 143 mm × 106.7 mm ( Ø 5.62" × 4.19") |
| Weight | 630 g (1.39 lb.) |
| Ingress Protection | IP66,IK10 |
