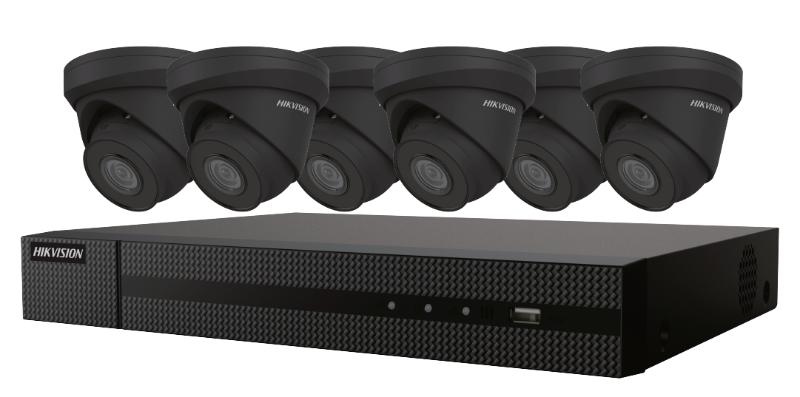

Hikvision - EKI-K82T46B - KIT 4K 8CH 2T 6TR BLK 4MP 2.8M
Part number:
EKI-K82T46B
Price:
4 MP Turret PoE Kit
Cameras:
1/3" (4 MP) Progressive Scan CMOS
2560 x 1440 (4 MP) Resolution
2.8 mm Fixed Lens
EXIR 2.0 with 100 ft (30 m) IR Range
H.265+/H.265/H.264+/H.264/MJPEG
IP67 Protection
Durable Metal Housing
120 dB WDR for Clear Images
NVR:
Up to 8 MP Resolution Recording
H.265+/H.265/H.264+/H.264/MPEG
Plug-and-Play with 4, 8, or 16 PoE Cameras
Up to 2 SATA Interfaces
Features:
- Up to 8 MP Resolution Recording
- 2560 x 1440 (4 MP) Resolution
- 2.8 mm Fixed Lens
- H.265+/H.265/H.264+/H.264/MPEG
- Plug-and-Play
- EXIR 2.0 with 100 ft (30 m) IR Range
| Specification | |
| Camera | |
| Camera Model | ECI-T2(4)4F2 |
| Image Sensor | 1/3" (4 MP) progressive scan CMOS |
| Minimum Illumination | Color: 0.15 lux @ (ƒ/2.0, AGC on); 0.03 lux @ (ƒ/2.0, AGC on), 0 lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Auto-Iris | No |
| Day/Night | IR cut filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 120 dB |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360° |
| Lens | |
| Focal Length | 2.8 mm |
| Aperture | ƒ/2.0 |
| Field of View | Horizontal 980°, vertical 53°, diagonal 114° |
| Lens Mount | M12 |
| IR | |
| IR Range | Up to 100 ft (30 m) |
| Wavelength | 850 nm |
| Compression Standard | |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; sub-stream: H.265+/H.265/H.264+/H.264/MJPEG |
| H.264 Type | Baseline profile/main profile/high profile |
| H.264+ | Main stream |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Smart Features | |
| Region of Interest | One fixed region for main stream and sub-stream |
| Image | |
| Maximum Resolution | 2560 × 1440 |
| Main Stream | 20 fps (2560 × 1440), 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 30 fps (640 × 480, 640 × 360, 320 × 240) |
| Image Enhancement | BLC, 3D DNR |
| Image Setting | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or Web browser |
| Day/Night Switch | Auto, scheduled |
| Network | |
| Network Storage | Supports NAS (NFS, SMB/CIFS) |
| Alarm Trigger | Motion detection, video tampering alarm, illegal login |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1x, QoS, IPv6, UDP, Bonjour |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users; three levels: administrator, operator, and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | IE 8+, Chrome 31 to 44, Firefox 30.0 to 51, Safari 8.0+ |
| Interface | |
| Communication Interface | 1-Port RJ-45 10M/100M self-adaptive Ethernet port |
| General | |
| Operating Conditions | -22° to 122° F (-30° to 50° C); humidity: 95% or less (non-condensing) |
| Power Supply | 12 VDC ±25%, 5.5 mm coaxial power plug; PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.4 A, maximum: 5 W; PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, maximum: 6.5 W |
| Protection Level | IP67 |
| Material | Metal |
| Dimensions | Camera: Ø5.0" x 3.7" (Ø127 mm x 95.9 mm) |
| Weight | Camera: 1.37 lbs (620 g) |
| NVR | |
| Video/Audio Input | |
| IP Video Input | 8-ch |
| Resolution | Up to 8 MP resolution |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1k Ω) |
| Network | |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Video/Audio Output | |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| HDMI Output Resolution | 1-ch, 4K (3840 × 2160)/30 Hz, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output Resolution | 1-ch, 1920 × 1080p, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768 |
| Audio Output | 1-ch, RCA (linear, 1k Ω) |
| Decoding | |
| Decoding Format | H.265/H.265+/H.264/H.264+/MPEG4 |
| Live View/Playback Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 8-ch |
| Capability | 1-ch @ 8 MP/4-ch @ 1080p |
| Network Management | |
| Network Protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Hard Disk | |
| SATA | 1 SATA interface |
| Drive Bays | 1 |
| Capacity for Each Disk | Up to 6 TB |
| External Interface | |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| USB Interface | 2 × USB 2.0 |
| PoE Interface | |
| Interface | 8, RJ-45 10/100 Mbps self- adaptive Ethernet interface |
| Power | ≤80 W |
| Standard | IEEE 802.3 af/at |
| General | |
| Power Supply | 48 VDC |
| Power | ≤180 W |
| Consumption (w/o Hard Disk) | ≤10 W (w/o enabling PoE) |
| Working Temperature | 14 to 131º F (-10 to 55º C) |
| Working Humidity | 10% to 90% (non-condensing) |
| Chassis | 1U chassis |
| Dimensions (W × D × H) | 12.4" × 9.4" × 1.9" (315 mm × 240 mm × 48 mm) |
| Weight (w/o Hard Disk) | 2.2 lb (≤1 kg) |
