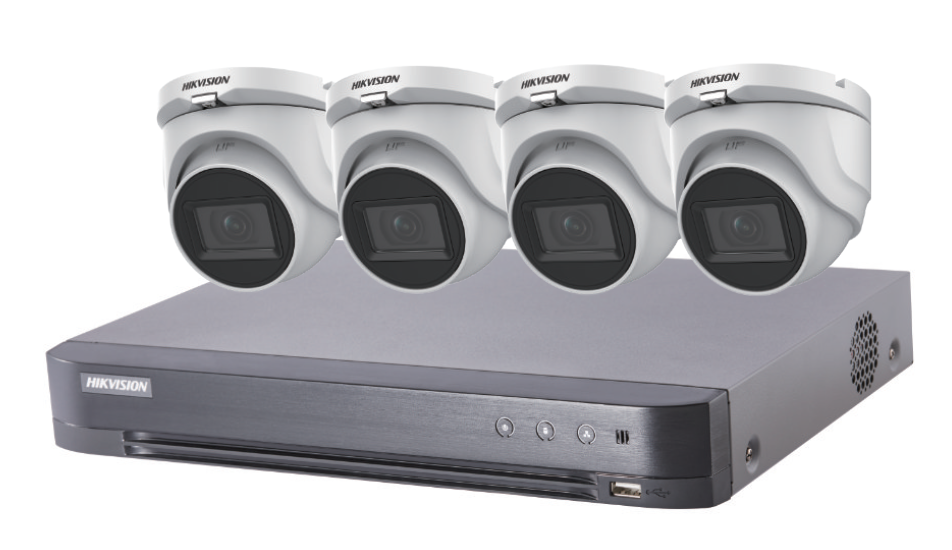

Hikvision - T7204U1TA4 - 4-ch 5MP Turbo Kit, 4cam+1TB
Part number:
T7204U1TA4
Price:
5 MP TurboHD Kits
Cameras
• 5 MP High Performance CMOS
• Up to 2560 x 1944 Resolution
• 2.8 mm Fixed Lens
• EXIR 2.0 with up to 65 ft (20 m) IR Range
• Digital WDR, 3D DNR, BLC
• IP67 Protection
DVR
• Up to 5 MP Resolution Recording
• 4- or 8-ch 6 MP IP Cameras Input (8- or
16-ch if Analog Channels Are Disabled)
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• 4- or 8-ch Synchronous Playback
• 1 SATA Interface (10 TB Capacity per HDD)
Features:
- Hikvision T72xxUxTAx Series 5 MP kits are cost effective solutions for value-oriented users.
- Each kit is supplied with four or six network
- cameras with 5 MP image sensors and a 4-, or 8-
- channel DVR in the same box.
- Kit DVRs are pre-installed with a 1 or 2 TB HDD
| Specification DS-2CE56H0T-ITMF | |
| Camera | |
| Image Sensor | 5 MP CMOS image sensor |
| Effective Pixels | 2560 (H) × 1944 (V) |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Lens | 2.8 mm, 3.6 mm, 6 mm fixed Lens |
| Horizontal Field of View | 85.5° (2.8 mm), 80.1° (3.6 mm), 57.1° (6 mm) |
| Lens Mount | M12 |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360° |
| Synchronization | Internal synchronization |
| Frame Rate | PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps |
| Menu | |
| AGC | Support |
| D/N Mode | Auto/Color/BW (Black and White) |
| White Balance | ATW/MWB |
| BLC | Support |
| DWDR (Digital Wide Dynamic Range) | Support |
| Language | English |
| Functions | Brightness, Sharpness, DNR, Mirror, Smart IR |
| Interface | |
| Video Output | 1 HD analog output |
| Switch Button | TVI/AHD/CVI/CVBS |
| General | |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Power Supply | 12 VDC ±25% |
| Power Consumption | Max. 4.3 W |
| Protection Level | IP67 |
| Material | Metal |
| IR Range | Up to 20 m |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimensions | 91 mm × 82.6 mm × 68.3 mm (3.58" × 3.25" × 2.69") |
| Weight | Approx. 350 g (0.77 lb.) |
| Specification - DS-7204HUHI-K1 | |
| Recording | |
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding resolution | 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/,CIF, |
| Frame rate | Main stream: ,8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Video bit rate | 32 Kbps to 10 Mbps |
| Dual stream | Support |
| Stream type | Video, Video & Audio |
| Audio compression | G.711u |
| Audio bit rate | 64 Kbps |
| Video and Audio | |
| IP video input | 4-ch (up to 8-ch);Up to 8 MP resolution, : The 8 MP signal input is only available for channel 1 of DS-7204HUHI-K1.,Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog video input | 4-ch;BNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection |
| AHD input | 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| CVBS input | PAL/NTSC |
| HDMI/VGA output | 1-ch, ,2K (2560 × 1440)/60Hz,,1920 × 1080/60Hz, ,1280 × 1024/60Hz, ,1280 × 720/60Hz, ,1024 × 768/60Hz, |
| Audio input | 4-ch, RCA (2.0 Vp-p, 1 KO) |
| Audio output | 1-ch, RCA (Linear, 1 KO) |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 KO) (using the first audio input) |
| Synchronous playback | 4-ch |
| HDTVI input | 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
| VGA/HDMI output | 1-ch, ,2K (2560 × 1440)/60Hz,,1920 × 1080/60Hz, ,1280 × 1024/60Hz, ,1280 × 720/60Hz, ,1024 × 768/60Hz |
| PoC camera input | Support Hikvision PoC camera : PoC access capability see Appendix. |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 O),,resolution: PAL: 704 × 576, NTSC: 704 × 480, |
| Network | |
| Remote connections | 32 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Network interface | 1, ,RJ45 10M/100M ,self-adaptive ,Ethernet interface |
| Auxiliary interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 10 TB capacity for each disk |
| Alarm in/out | 1-Apr |
| USB interface | 2 × USB 2.0 |
| Serial interface | RS-485 (half-duplex) |
| General | |
| Power supply | 48 VDC |
| Working temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Working humidity | 10% to 90% |
| Dimensions (W × D × H) | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weights (without HDD) | = 1.5 kg (3.3 lb) |
| Consumption(without HDD) | = 40 W |
