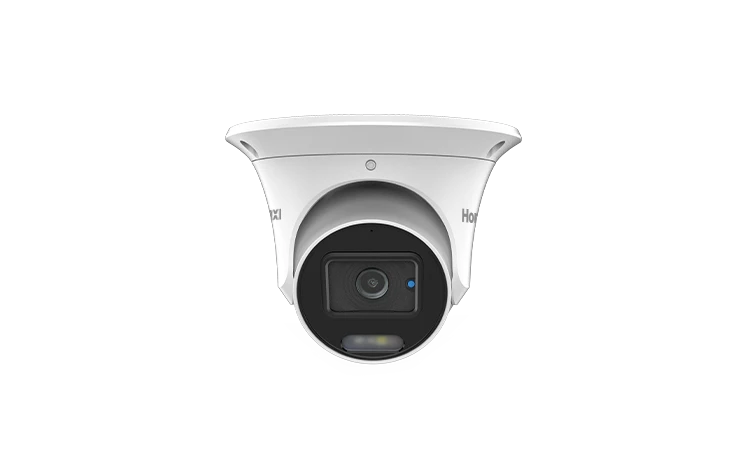

Homaxi - IPC4TF4R4-I1-TMCR - 4MP Smart Dual Light Fixed Turret Network Camera
Part number:
IPC4TF4R4-I1-TMCR
Price:
With advanced deep learning algorithm, Homaxi S Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With Smart Dual Light technology, the camera records the full-color video and information of key events and reduces light pollution efficiently when the target is out of the monitoring area.
Features:
- High quality imaging with 4MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 120 dB WDR technology
- 24/7 colorful imaging
- Water and dust resistant (IP67)
- Built-in microphone for real-time audio security
| Camera | |
| Image Sensor | 1/2.7"" Progressive scan CMOS Sensor |
| Min. Illumination | 0.006 Lux(Color), 0 Lux(with light) |
| Illumination Distance | 30m (IR light) 30m (warm light) |
| StrobeLight | N/A |
| Smart Light | Support |
| Pan/Tilt/Rotation Range | Pan: 0°~360° Tilt: 0°~75° Rotation: 0°~360° |
| Lens | |
| Focal Length | 2.8mm |
| Aperture | F1.6 |
| FOV | 2.8mm@F1.6 horizontal FOV: 111° , vertical FOV: 60°diagonal FOV: 132° |
| Lens Mount | M12 |
| DORI | |
| DORI | 2.8 mm, D: 67 m, O: 25 .5 m, R: 12 .8 m, I: 6.4 m |
| Compression Standard | |
| Video Compression | H.265/H.265+/H.264/H.264+/MJPEG |
| H.264 Codec profile | Base/Main/High profile |
| H.265 Codec profile | Main profile |
| Video Bit Rate | 11 Kbps~8 Mbps |
| Triple Streams | N/A |
| Audio Compression | G.711A(-A Model), G711U |
| Audio Bit Rate | 64 Kbps(-A Model) |
| Image | |
| Max. Image Resolution | 4MP(2688 × 1520) |
| Main Stream | 50Hz: 20fps 4M(2688 × 1520) 25fps 4M(2560 × 1440) 25fps 1080P(1920 × 1080) 60Hz: 20fps 4M(2688 × 1520) 30fps 4M(2560 × 1440) 30fps 1080P(1920 × 1080) |
| Sub Stream | 50Hz: 25fps 720P(1280 × 720) 25fps D1(704 × 576), 25fps CIF(352 × 288) 60Hz: 30fps 720P(1280 × 720) 30fps D1(704 × 480), 30fps CIF(352 × 240) |
| Third Stream | N/A |
| Image Setting | Brightness/Contrast/Saturation/Hue/Sharpness |
| Shutter Time | Auto/Manual, 1/3~1/100000s |
| Day/Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120dB |
| Digital noise reduction | 2D/3D DNR |
| BLC | Support |
| HLC | Support |
| ROI | Support |
| Rotate | Support |
| Smart Feature | |
| Basic Event | Motion detection (human and vehicle targets classification),Video Shelter |
| Smart Event | Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle)) |
| Face Detection | N/A |
| Network | |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P |
| System compatibility | Onvif(Profile S, Profile G, T), SDK |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Web Browsers | Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ |
| User | Up to 10 users |
| Mobile Surveillance | iOS, Android |
| Interface | |
| Communication interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-board storage | up to 256GB |
| MIC | Support |
| Speaker | N/A |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Reset button | Support |
| General | |
| Operating Conditions | (-40°C ~ 60°C) (-40° F ~ 140°F) Humidity 95% or less (non-condensing) |
| Power Supply | DC12V ± 25% |
| POE | PoE (802.3af) |
| Power Consumption | MAX.6.3W |
| Protection Level | IP67 |
| Material | Metal |
| Dimensions | Φ5.51'' × 4.12'' (140 × 104.7 mm) |
| Gross Weight | 1.76 lb (800 g) |
