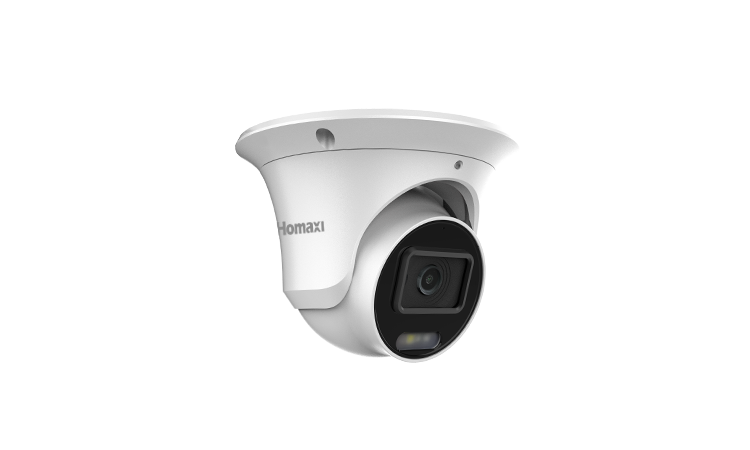

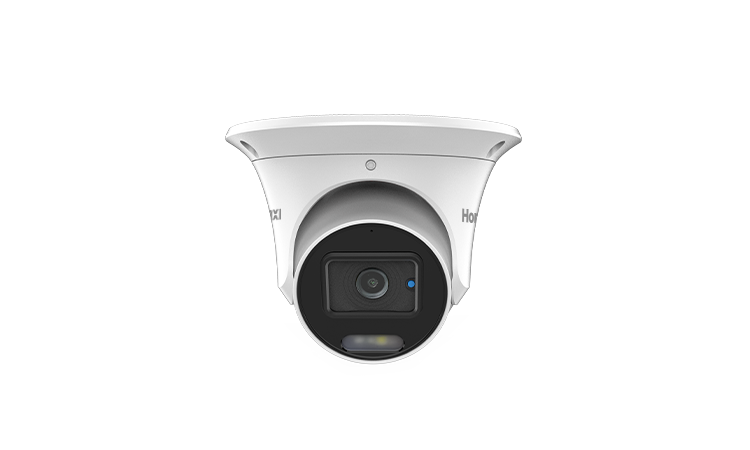

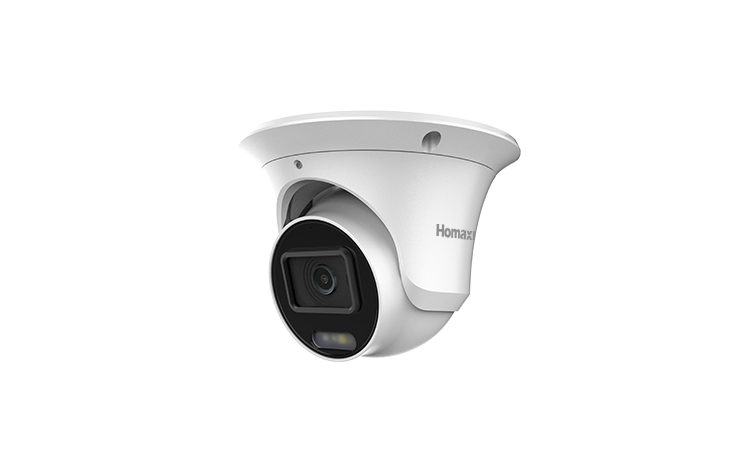

Homaxi - IPC4TF4R8-I1-TMCR - 8MP Smart Dual Light Fixed Turret Network Camera
Part number:
IPC4TF4R8-I1-TMCR
Price:
With advanced deep learning algorithm, Homaxi S Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With Smart Dual Light technology, the camera records the full-color video and information of key events and reduces light pollution efficiently when the target is out of the monitoring area.
Features:
- High quality imaging with 8MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 120 dB WDR technology
- 24/7 colorful imaging
- Water and dust resistant (IP67)
- Built-in microphone for real-time audio security
| Camera | |
| Image Sensor | 1/2.8"" Progressive Scan CMOS Sensor |
| Min. Illumination | Color: 0.006 Lux (F1.6, AGC ON) , 0 Lux with light |
| Illumination Distance | 30m (IR light) 30m (Warm light) |
| Strobe Light | N/A |
| Smart IR | Support |
| Pan/Tilt/Rotation Range | Pan: 0° ~ 360° Tilt: 0° ~ 75° Rotation: 0° ~ 360° |
| Lens | |
| Focal Length | 2.8 mm |
| Aperture | F1.6 |
| FOV | 2.8 mm @ F1.6 Horizontal FOV: 106°, Vertical FOV: 58°, Diagonal FOV: 125° |
| Lens Mount | M12 |
| DORI | |
| DORI | 2.8 mm, D: 88 m, O: 34.7 m, R: 17.4 m, I: 8.7 m |
| Compression Standard | |
| Video Compression | H.264/H.264+/H.265/H.265+/MJPEG |
| H.264 Codec Profile | Base/Main/High profile |
| H.265 Codec Profile | Main Profile |
| Video Bit Rate | 11 Kbps ~ 11 Mbps |
| Triple Streams | N/A |
| Audio Compression | G.711A, G.711U |
| Audio Bit Rate | 64 Kbps |
| Image | |
| Max. Image Resolution | 8MP (3840 × 2160) |
| Main Stream | 50Hz: 20fps 8MP (3840 × 2160) , 20fps 6MP (3200 × 1800) , 25fps 5MP (3072 × 1728) 25fps 4MP (2560 × 1440) , 25fps 1080P (1920 × 1080) 60Hz: 20fps 8MP (3840 × 2160) , 20fps 6MP (3200 × 1800) , 30fps 5MP (3072 × 1728) 30fps 4MP (2560 × 1440) , 30fps 1080P (1920 × 1080) |
| Sub Stream | 50Hz: 25fps 720P (1280 × 720) 25fps D1 (704 × 576) , 25fps CIF (352 × 288)（ Default D1） 60Hz: 30fps 720P (1280 × 720) 30fps D1 (704 × 480) , 30fps CIF (352 × 240) |
| Third Stream | N/A |
| Image Setting | Brightness/Contrast/Saturation/Hue/Sharpness |
| Shutter Time | Auto/Manual, 1/3~1/100000s |
| Day/Night | IR cut filter |
| Wide Dynamic Range | 120 dB |
| Digital Noise Reduction | 2D/3D DNR |
| BLC | Support |
| HLC | Support |
| ROI | Support |
| Rotate | Support |
| Smart Feature | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle) ) , Video Shelter |
| Smart Event | Line crossing detection, intrusion detection (human and vehicle targets classification) |
| Face Detection | N/A |
| Network | |
| Network Storage | NAS (NFS, SMB/CIFS) , ANR |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP- TM, P2P |
| System Compatibility | Onvif (Profile S, Profile G, T), SDK |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1. 1/1.2, WSSE and digest authentication for Open Network Video Interface |
| User | Up to 10 users |
| Web Browsers | Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ |
| Mobile Surveillance | IPhone, Android devices |
| Interface | |
| Communication Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-board Storage | Up to 256GB |
| MIC | Support |
| Speaker | N/A |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Reset Button | Support |
