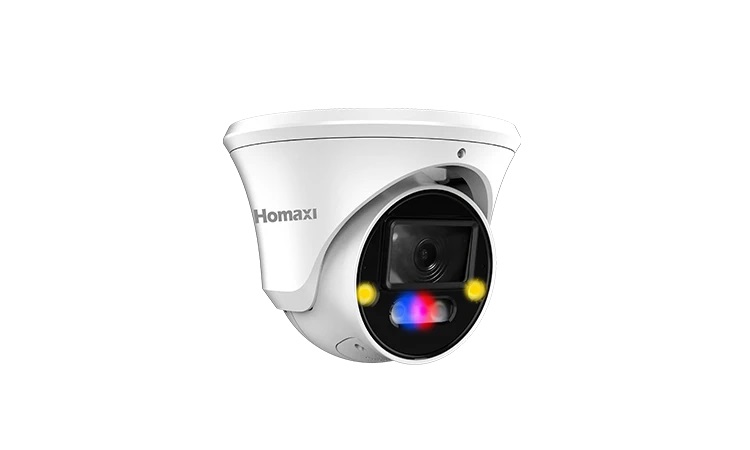

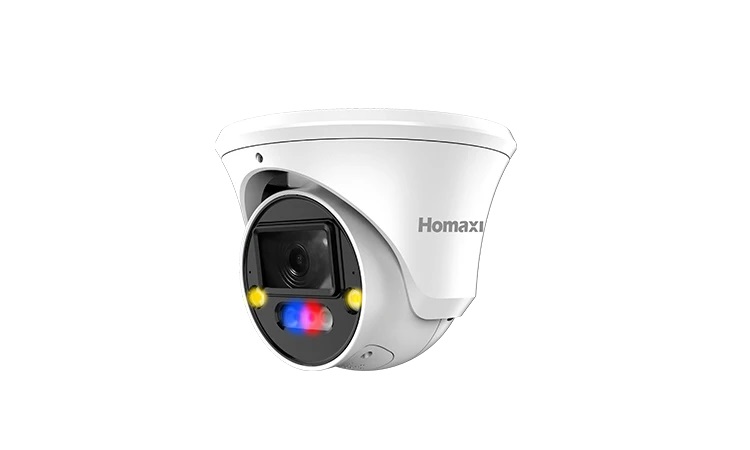

Homaxi - IPC6TF4R8-AD-TPMSCR - 8MP Active Deterrence Fixed Turret Network Camera
Part number:
IPC6TF4R8-AD-TPMSCR
Price:

Empowered by deep learning algorithms, Homaxi iQSense technology brings human and vehicle targets classification alarms to front and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness. With siren and strobe light, the camera can realize the deterrence and effective intervention.



Features:

  • High quality imaging with 8MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong backlight due to 120dB WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • Active warm light and audio alarm to warn intruders off
  • Water and dust resistant (IP67)
  • Built-in microphone & speaker, audio and alarm interface available
  • NDAA Compliant
Camera
Image Sensor1/2.8" Progressive scan CMOS Sensor
Min. Illumination0.003 lux (Color), 0 lux (IR on)
Illumination Distance30m (IR light)
30m (Warm light)
StrobeLightN/A
Smart LightSupport
Pan/Tilt/Rotation RangePan: 0°~360°
Tilt: 0°~75°
Rotation: 0°~360°
Lens
Focal Length2.8mm
ApertureF1.0
FOV2.8 mm @ F1.0 horizontal FOV: 105° , vertical FOV: 56°diagonal FOV: 126°
Lens MountM12
DORI
DORI2.8 mm, D: 94 m, O: 36.7 m, R: 18.4 m, I: 9.2 m
Compression Standard
Video CompressionH.264/H.264+/H.265/H.265+/MJPEG
H.264 Codec profileBase/Main/High profile
H.265 Codec profileMain profile
Video Bit Rate11 Kbps~16 Mbps
Triple StreamsSupport
Audio CompressionG.711A, G.711U
Audio Bit Rate64 Kbps
Max. Image Resolution8MP(3840 × 2160)
Main Stream50Hz: 25fps 8MP(3840 × 2160),
25fps 6MP(3200 × 1800), 25fps 5MP(3072 × 1728)
25fps 4MP(2560 × 1440), 25fps 1080P(1920 × 1080)

60Hz:30fps 8MP(3840 × 2160),
30fps 6MP(3200 × 1800), 30fps 5MP(3072 × 1728)
30fps 4MP(2560 × 1440), 30fps 1080P(1920 × 1080)
Sub Stream50Hz: 25fps 720P(1280 × 720)
25fps D1(704 × 576),25fps CIF(352 × 288)
60Hz: 30fps 720P(1280 × 720)
30fps D1(704 × 480),30fps CIF(352 × 240)
Third Stream50Hz: 25fps CIF(352 × 288)
60Hz: 30fps CIF(352 × 240)
Image SettingBrightness/Contrast/Saturation/Hue/Sharpness
Shutter TimeAuto/Manual, 1/3~1/100000s
Day/NightIR cut filter
Wide Dynamic Range120dB
Digital noise reduction2D/3D DNR
BLCSupport
HLCSupport
ROISupport
RotateSupport
Smart Feature
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), Video Shelter
Smart EventLine crossing detection, Area intrusion, Region Entrance, Region Exiting(support alarm triggering by specified target types (human and vehicle)), Scene Change Detection, video blur detection
Face DetectionSupport
Network
Network StorageNAS (NFS, SMB/CIFS), ANR
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P
System compatibilityOnvif(Profile S, Profile G, T), SDK
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
UserUp to 40 users
Web BrowsersPlug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
Mobile SurveillanceIOS, Android
Interface
Communication interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-board storageup to 256GB
MICSupport
SpeakerSupport
Audio I/O1/1
Alarm I/O1/1
Reset buttonSupport
General
Operating Conditions-40°C ~ 60°C (-40°F ~ 140°F)
Humidity 95% or less (non-condensing)
Power SupplyDC12V ± 25%
POEPoE (802.3af)
Protection LevelIP67
MaterialMetal
DimensionsΦ144.5 × 113.5mm
Gross Weight2.30 lb (1045 g)
