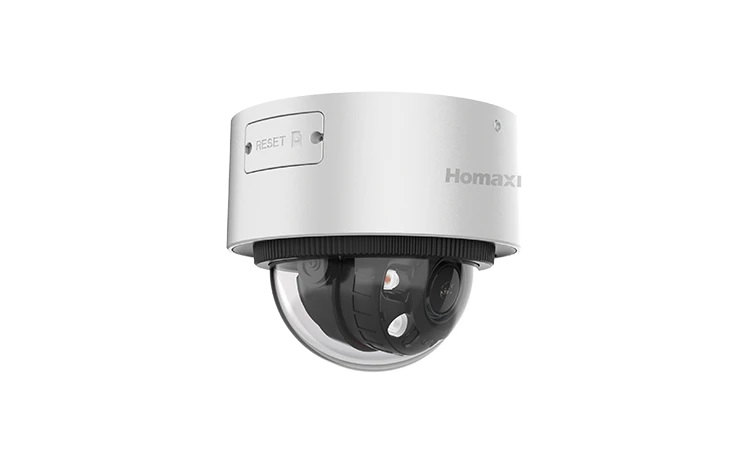

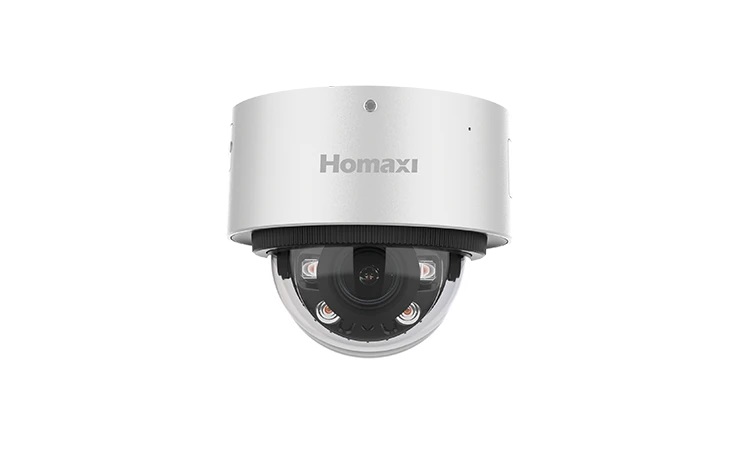

Homaxi - IPC8DV4R4-I2-TPMCZ - 4MP ColorView Motorized Dome Network Camera
Part number:
IPC8DV4R4-I2-TPMCZ
Price:
Homaxi Colorview technology delivers vivid, full-color images around the clock, thanks to its F1.0 advanced lenses and high-performance sensors. The F1.0 super- aperture gathers more light to generate brighter visuals, while cutting-edge sensor technology significantly enhances the use of existing light sources.
Features:
- High quality imaging with 4MP resolution
- Motorized varifocal lens for easy installation and monitoring
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 130dB WDR technology
- 24/7 colorful imaging
- Water and dust resistant (IP67) and vandal proof (IK10)
- Built-in microphone, audio and alarm interface available
- NDAA Compliant
| Camera | |
| Image Sensor | 1/1.8" Progressive scan CMOS Sensor |
| Min. Illumination | 0.0005 Lux(Color), 0 Lux with Light |
| Illumination Distance | 40m (warm light) |
| Strobe Light | N/A |
| Smart IR | N/A |
| Pan/Tilt/Rotation Range | Pan: 0° ~ 355° Tilt: 0° ~ 75° Rotation: 0° ~ 355° |
| Lens | |
| Focal Length | 2.8- 12mm |
| Aperture | F1.0 |
| FOV | horizontal FOV:105°~56°, vertical FOV:54°~31°, diagonal FOV: 131°~65° |
| LED | 4pcs Warm LED |
| Lens Mount | Integrated |
| DORI | |
| DORI | 2.8- 12 mm, D: 68 m to 114 m, O: 26 .3 m to 44 .7 m, R: 13.2 m to 22 .4 m, I: 6.6 m to 11 .2 |
| Compression Standard | |
| Video Compression | H.264/H.264+/H.265/H.265+/MJPEG |
| H.264 Codec profile | Base/Main/High profile |
| H.265 Codec profile | Main profile |
| Video Bit Rate | 11 Kbps~10 Mbps |
| Triple Streams | Support |
| Audio Compression | G.711A/G.711U |
| Audio Bit Rate | 64 Kbps |
| Image | |
| Max. Image Resolution | 4M(2688 × 1520) |
| Frame Rate | 50Hz: 25fps 4M(2688 × 1520) 25fps 4M(2560 × 1440) 25fps 1080P(1920 × 1080) 60Hz: 30fps 4M(2688 × 1520) 30fps 4M(2560 × 1440) 30fps 1080P(1920 × 1080) |
| Sub Stream | 50Hz: 25fps 720P(1280 × 720) 25fps D1(704 × 576), 25fps CIF(352 × 288) 60Hz: 30fps 720P(1280 × 720) 30fps D1(704 × 480), 30fps CIF(352 × 240) |
| Third Stream | 50Hz: 25fps CIF(352 × 288) 60Hz: 30fps CIF(352 × 240) |
| Image Setting | Brightness/Contrast/Saturation/Hue/Sharpness |
| Shutter Time | Auto/Manual, 1/3~ 1/100000s |
| Day/Night | 24/7 color imaging |
| Wide Dynamic Range | 130 dB |
| Digital Noise Reduction | 2D/3D DNR |
| BLC | Support |
| HLC | Support |
| ROI | Support |
| Defog | Support |
| Rotate | Support |
| Smart Feature | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle) ) , Video Shelter |
| Smart Event | Line crossing detection, Area intrusion, Region Entrance, Region Exiting (support alarm triggering by specified target types (human and vehicle) ) Scene Change Detection |
| Face Detection | Support |
| Network | |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P |
| System compatibility | Onvif(Profile S, Profile G, T), SDK |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| User | Up to 40 users |
| Web Browsers | Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ |
| Mobile Surveillance | IOS, Android |
| Active Deterrence | |
| Red/Blue Light Warning | N/A |
| Sound Warning | N/A |
| Interface | |
| Communication interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board storage | Up to 256GB |
| MIC | Support |
| Speaker | N/A |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Reset button | Support |
| General | |
| Operating Conditions | -40°F ~ 140°F (-40°C ~ 60°C) Humidity 95% or less (non-condensing) |
| Power Supply | DC12V ± 25% |
| POE Supply | PoE (802.3af) |
| Power Consumption | MAX. 11.5W |
| Protection Level | IP67 |
| Vandalproof | Metal |
| Dimensions | Φ5.55'' × 4.7'' (140.5 × 119.3 mm) |
| Weight | 3.04 lb (1380 g) |
