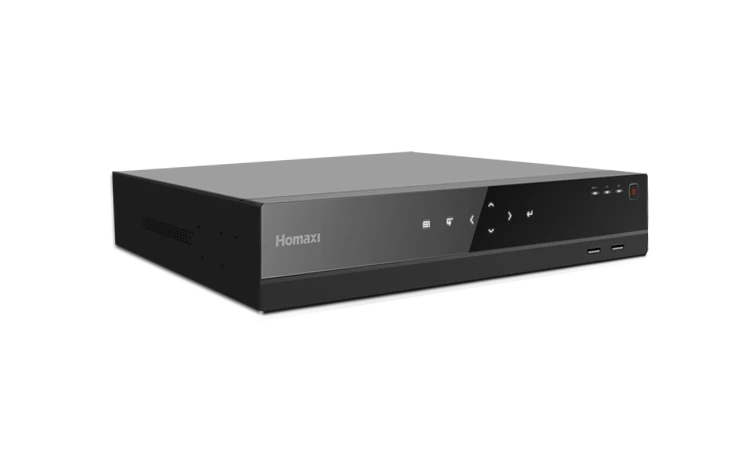

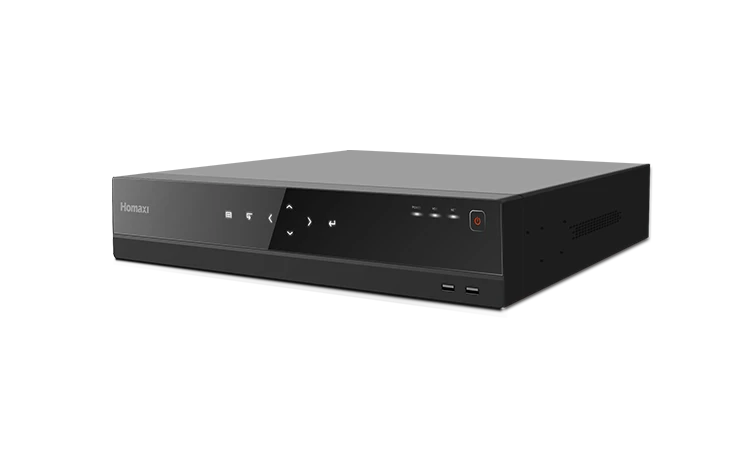

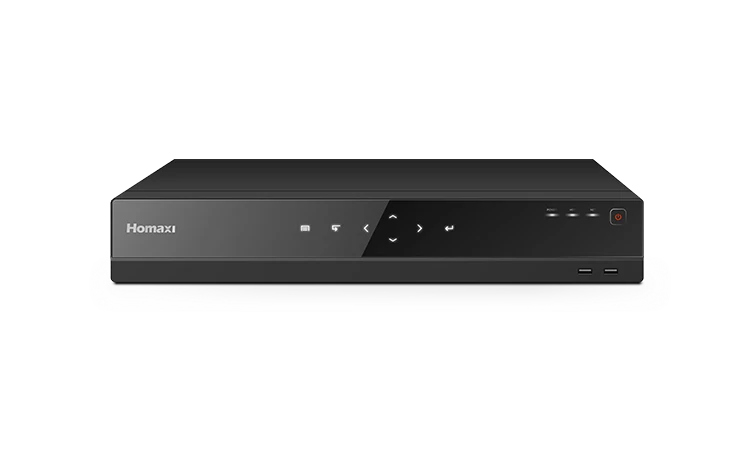

32 Channel 1.5U 4HDD 16POE Network Video Recorders
Features:
- 32CH IP Video input,up to 12MP
- H.265+/H.265 dual-stream video compression
- Incoming/Outgoing Bandwidth:256Mbps/256Mbps
- Decoding: 16CH 1080P@30fps/8CH 4MP@30fps/6CH 5MP@30fps/4CH 4K@30fps
- Supports mainstream cameras of ONVIF and RTSP protocol
- VGA/HDMI asynchronous video output, maximum resolution of HDMI® is 4K
- AI by Camera:SMD,perimeter protection,face detection,etc.
- NDAA Compliant
| Video & Audio Input | |
| IP Video Input | 32ch |
| Audio input | 1ch, RCA (Linear, 1kΩ) |
| Video & Audio Output | |
| HDMI | 4K(3840×2160)/30Hz, 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| VGA | 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| Audio Output | 1ch, RCA (Linear, 1kΩ) |
| Recording | |
| Compression | H.265+/H.265/H.264+/H.264 |
| Resolution | 12MP/8MP/5MP/4MP/3MP/1080P/720P/D1/CIF/QCIF |
| Bit Rate per Channel | 64Kbps~10Mbps |
| Playback & Backup | |
| Playback Resolution | 12MP/8MP/5MP/4MP/3MP/1080P/720P/D1/CIF/QCIF |
| Decoding Capability | 2ch@12M 20fps 4ch@8M 30fps 6ch@5M 30fps 8ch@4M 30fps 16ch@1080P 30fps |
| Synchronous Playback | 16ch |
| Playback Mode | Smart Playback/Normal/Time Division/ Label/ Event |
| Backup Mode | USB Device/Network/eSATA |
| Advanced Features | |
| Smart Detection by Camera | Area Intrusion, Line crossing, Region Entrance /Region Exiting, Fast Moving, Object Missing, Unattended Object, Loitering Detection, Parking Detection, Face Detection, People Gathering Detection, Blurred detection, Scene change detection, Audio exception detection, SMD, PP |
| Smart Playback | Face detection/Line Crossing/Are Intrution/Motion Detection/Human Detection/Vehicle Detection |
| Cloud Storage | Support |
| Cloud Upgrade | Support |
| Network | |
| Incoming Bandwidth | 256Mbps |
| Outgoing Bandwidth | 256Mbps |
| Ethernet | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Network Compatibility | HTTPs, HTTP, TCP/IP, IPv4, UPnP, RTSP, UDP, SMTP, SNMP, Multicast, NTP, DHCP, DNS, IP Filter, DDNS, FTP, P2P, ONVIF |
| Smart Phone | IOS(iPhone, iPad), Android(Phone, Pad) |
| Hard Disk | |
| SATA | 4 SATA interface |
| Capacity | Up to 18TB capacity for each HDD |
| External Interface | |
| POE Port | 16 independent 10/100 Mbps PoE Ethernet interfaces |
| USB Interface | Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0 |
| eSata | 1 × eSATA |
| RS 485 | 2 |
| Alarm In | 16ch |
| Alarm Out | 4ch |
| General | |
| Power Supply | AC 100~240V |
| Power Consumption | ≤30W(without HDD and POE) |
| Working Environment | 14°F ~ 131°F(-10°C ~ 55°C ) Humidity 10% to 90% |
| Dimension (W×D×H) | 17.32"" × 17.64"" × 2.76"", 1.5U (440 × 448 × 70mm) |
| Weight | 6.3KG |
