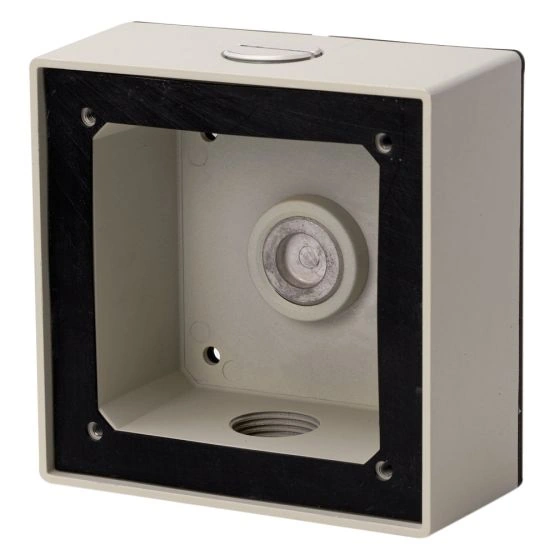

AV-JBA - Square Junction Box Adapter - IDIS
Part number:
Price:
The AV-JBA Square Junction Box Adapter is an essential accessory for optimising camera installations. Designed to provide a seamless connection for cables through a 3/4" conduit, it enhances compatibility with the HSG2 and D4S wall mounts. Designed to withstand challenging environments, this durable junction box is suitable for a variety of applications.
• Easy Installation and Superior Design
• Heavy Duty Enclosure Protection for Applications in Harsh Environments
• Die-Cast Aluminum is Resistant to Impact and Salt Damage
| Compatibility | |
|---|---|
| Compatible with | 3/4" NPT standard |
| Works with | ConteraIP® Bullet |
| Mechanical | |
| Casing | Die-cast aluminum IP66 weather proof standard IK-10 impact-resistant |
| Color | Arecont Vision® White (Pantone® Cool Gray 1C) |
| Dimensions | 4.7" L (120mm) x 4.7" W (120mm) x 1.89" H (48.1mm) |
| Weight w/o Camera | 1.3lbs (0.63kg) |
Name
Description
Size
Downloads
File
Accessories_Contera_DS_ENG.pdf
1.6mb
