AV-WMJB - Wall Mount Bracket with Junction Box - IDIS
• Easy Installation and Superior Design
• Heavy Duty Enclosure Protection for Applications in Harsh Environments
• Die-Cast Aluminum is Resistant to Impact and Salt Damage
| Compatibility | |
|---|---|
| Compatible with | 1.5" NPT Female |
| Works with | ConteraIP® Outdoor Dome and ConteraIP® Panoramic |
| Mechanical | |
| Casing | Die-cast aluminum IP66 weather proof standard IK-10 impact-resistant |
| Color | Arecont Vision® White (Pantone® Cool Gray 1C) |
| Dimensions | 7.68" L (195.05mm) x 4.69" W (119.2mm) x 4.69" W (119.2mm) |
| Weight w/o Camera | 2.49lbs (1.13kg) |

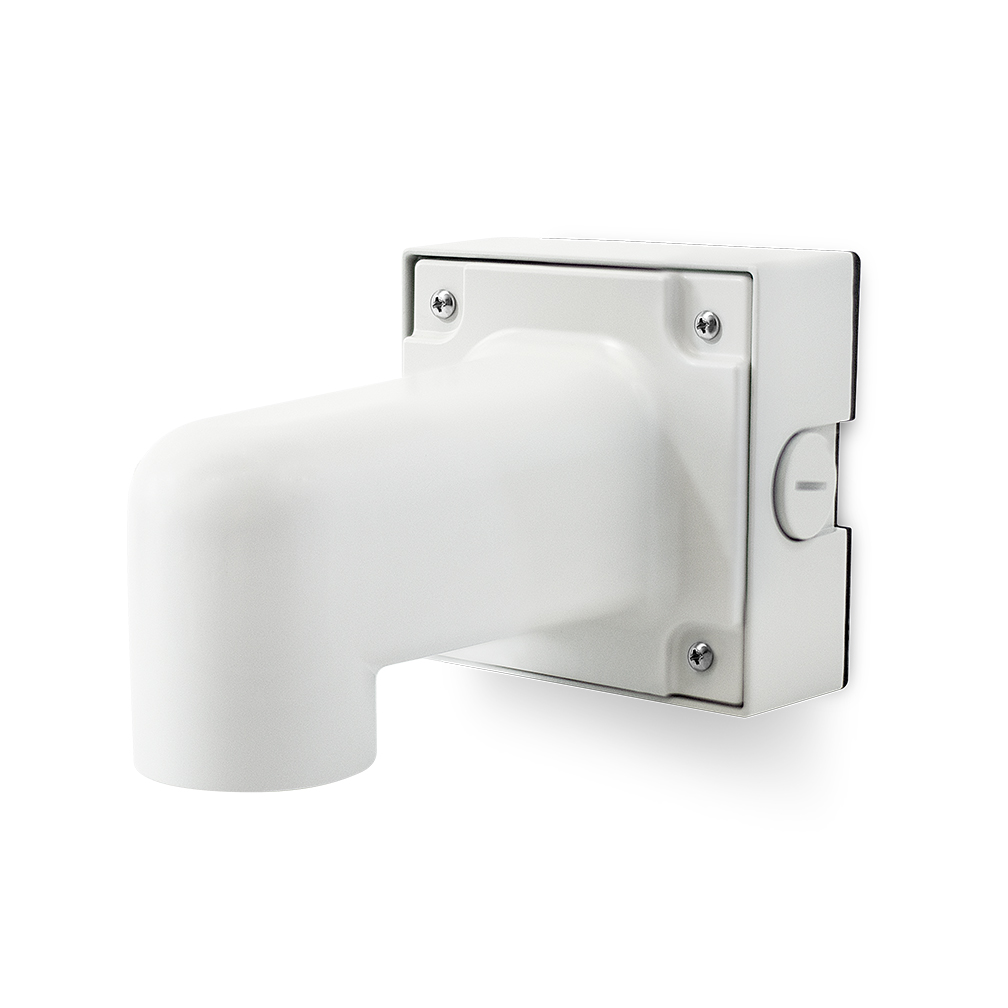

This is a wall mount bracket with an integrated junction box. It is compatible with cameras featuring a 1.5" NPT female connection and is designed for use with specific ConteraIP outdoor dome and panoramic models. The casing is die-cast aluminum with an IP66 weatherproof rating and IK-10 impact resistance. The product color is white. Its physical dimensions are 7.68" L x 4.69" W x 4.69" H and it weighs 2.49 lbs without a camera. The provided specifications do not include details on operating temperature, included hardware, or specific power/connection passthrough capabilities.
