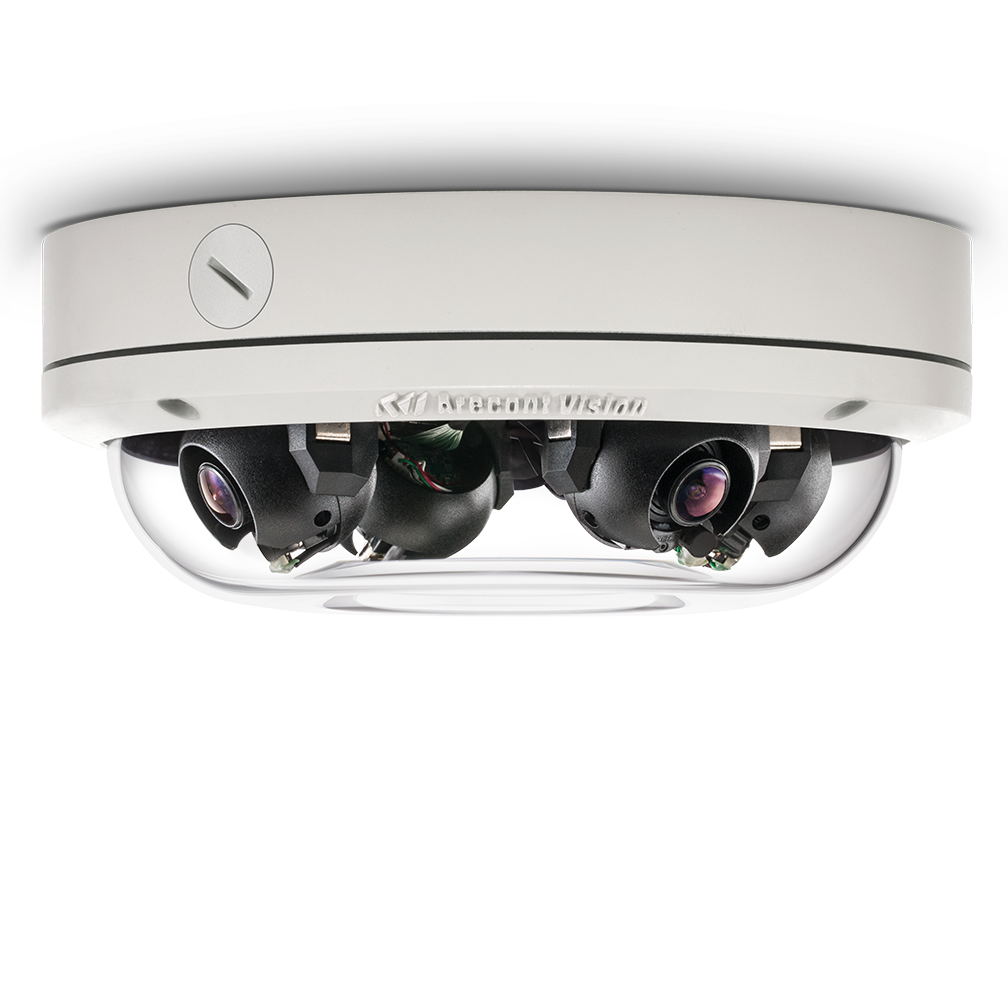

AV12276DN-08 - SurroundVideo Omni G2 Multi-Megapixel Camera - IDIS
Part number:
Price:
- • NDAA Compliant
- • SNAPstream™ Capability to Reduce Bandwidth without Impacting Image Quality
- • 12MP Resolution
- • 4 x 8mm Lenses
- • 3-Axis Gimbal
- • Remote Focus
- • True Day/Night
- • Enhanced WDR™
- • Surface Mount
- • Power Over Ethernet (PoE)
- • Indoor/Outdoor
- • IP66 Weather Rated
- • IK-10 Impact Resistant
| Imaging Sensor | |
|---|---|
| Model | AV12276DN (with 8mm Lens) |
| Image Sensor (CMOS) | 12MP (4 x 3MP) |
| Optical Format | 1/3.2" |
| Pixel Pitch | $2.2\mu\text{m}$ |
| Minimum Illumination | |
| Color (Day Mode) | 0.2 Lux |
| Color Binning (Day Mode) | 0.1 Lux |
| B/W (Night Mode) | 0.02 Lux, IR sensitive |
| Resolution & Dynamics | |
| Full FOV Resolution (Total) | Total 8192 H x 1536 V |
| Full FOV Resolution (Per Sensor) | Per Sensor 2048 H x 1536 V |
| 1/4 Resolution (Total) | Total 4096 H x 768 V |
| 1/4 Resolution (Per Sensor) | Per Sensor 1024 H x 768 V |
| Dynamic Range | WDR up to 100dB |
| Frame Rates (At Max Resolution) | 10fps (8192x1536) |
| Frame Rates (1/4 Resolution) | 14fps (4096x768) |
| Frame Rates (Binning Mode) | 14fps (4096x768) |
| Lens (8mm Option) | 8mm, F1.6, H-FOV = 33° |
| Programmability | |
| Optics | M12 lens and remote focus module |
| Low Light Performance | Pixel Binning Mode |
| Picture-in-Picture | Simultaneous delivery of full field-of-view and zoomed images |
| Programmable Shutter Speed | Controls motion blur, 1ms–500ms |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| MoonLight™ Mode | Extended exposure and noise cancellation |
| Flexible Cropping | Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264 |
| Backlight Compensation | Auto multi-matrix white balance |
| Flicker Control | 5Hz–255Hz adjustable |
| Wide Dynamic Range | Auto switch control adjustment between WDR and LDR modes (WDR models) |
| Efficiency | SNAPstream™ (Smart Noise Adaptation and Processing) Bit rate and bandwidth limitation control Bandwidth and storage savings by running at 1/4 resolution |
| Sharpness | Selectable enhancement level |
| Miscellaneous | Programmable resolution, brightness, saturation, gamma, tint Simultaneous delivery of full field-of-view and zoomed images Electronic pan, tilt, zoom (PTZ) Auto Exposure (AE) and Gain Control (AGC) > 120dB Programmable shutter speed to help control motion blur |
| Data Transmission | |
| Compression Type | H.264 (MPEG-4, Part 10)/Motion JPEG 21 levels of quality |
| Network Protocols | HTTP, IPv4, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP |
| Network Interface | 100Base-T Ethernet |
| Multi-Streaming | 8 non-identical streams |
| Compliance | |
| Industry Standard | ONVIF Profile S conformant |
| Listings | UL (CB) |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings (CE) | EN 55022:2010 Class A, EN 55024:2010, EN 61000-3-2:2006+A1:2009+A2:2009, EN61000-3-3: 2008, EN60950-1:2006+A11:2009+A1:2010+A12:2011, (UL) IEC 60950-1 (ed. 2) and IEC 60950-22 (ed. 1) |
| CoO | Made in the USA |
| Environmental | |
| Operating Temperature | -40°C (-40°F) to +50°C (122°F) |
| Humidity | 0% to 90% (non-condensing) |
| Storage Temperature | -40°C (-40°F) to +60°C (140°F) |
| Electrical | |
| Alarm Input/Output | 1 input /1 output |
| Power Over Ethernet | PoE 802.3af, Class 3 |
| Auxiliary Power | 18–48V DC, 24V AC |
| Power Consumption | 14W max (auxiliary) |
| Mechanical | |
| Casing | Die-cast aluminum chassis with polycarbonate dome bubble IP66 weather proof standard Impact resistant, IK-10 rated |
| Gimbal | Easily adjustable, 3-axis w/360° pan, 90° tilt, and 360° z-axis |
| Dimensions (Unit) | Ø 7.7" (196mm) x 3.1" H (78.5mm) |
| Dimensions (Bubble Only) | Ø 6.7" (169.2mm) x 1.3" H (33.4mm) |
| Dimensions (Packaged) | 8" W (203mm) x 8" L (203mm) x 4" H (102mm) |
| Weight (Unit) | 2.8lbs (1.27kg) |
| Weight (Packaged) | 3.4lbs (1.54kg) |
Name
Description
Size
Downloads
File
MegaIP_Quick_Guide_Line_Card_010720_Web.pdf
1.4mb
File
AV12276DN_A&E_001_ENG_002.docx
0.2mb
File
SurroundVideo-Omni-G2_DS.pdf
0.7mb
File
Lens-MPM_DS_ENG.pdf
1.5mb
File
Accessories-StandardDome_DS_ENG.pdf
1.4mb
This is a multi-sensor panoramic camera housing four independent 3MP sensors for a total composite resolution of 8192 x 1536 (12MP). Each sensor uses a 1/3.2" CMOS with a fixed 8mm (F1.6) M12-mount lens providing a 33-degree horizontal field of view per sensor. The camera supports pixel binning for low-light sensitivity and does not have integrated IR illumination. It supports video compression in H.264 and MJPEG formats. The camera includes up to 100dB WDR, day/night operation, a pixel binning mode, and features like simultaneous full-view and zoomed image delivery. It is housed in an IK-10 and IP66-rated die-cast aluminum casing. It operates on PoE (802.3af) or 18-48V DC/24V AC, with max auxiliary consumption of 14W, and within a temperature range of -40°C to +50°C (-40°F to 122°F).
