AV2756DN-F - ConteraIP MicroDome Series - IDIS
Part number:
Price:
- • 1080p (2.1MP) Resolution
- • 2.8mm Lens
- • Remote Focus Module
- • Easily Adjustable 3-Axis Gimbal
- • Ultra Low-Profile Design / Small Size
- • SNAPstream+™ Capability to Reduce Bandwidth without Impacting Image Quality
- • NightView™ for Strong Low Light Performance
- • True Day/Night Functionality with Mechanical IR Cut Filter
- • Enhanced WDR™ up to 120dB at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
- • CorridorView™ Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
- • Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, Multicasting, and Scaling
- • On-Screen Display (OSD)
- • Defog Technology
- • Triple Encoder: H.265/H.264/MJPEG
- • Network Protocols Include SNMP, HTTPS, IPv6, DHCP, 802.1x, and More
- • All-in-One PoE Solution
- • Audio In / Out (Accessory Sold Separately)
- • Integrated Microphone
- • Spring-Arm Design for Very Easy Installation
- • Tamper-Resistant Housing
| Camera | |
|---|---|
| Image Sensor | 1080p (2.1MP) CMOS Progressive |
| Optical Format | 1/2.8" |
| Minimum Illumination (Color - Day Mode) | 0.04 Lux |
| Minimum Illumination (B/W - Night Mode) | 0.004 Lux |
| Full FOV Resolution | 1920 H x 1080 V |
| Scaling | Yes (See Scaling Resolutions Below) |
| IR Illumination | No |
| Dynamic Range | 120dB |
| Frame Rates (Single Stream)1 | Up to 30fps (1080p) |
| Frame Rates (Multi-Stream)1 | Up to 30fps (1080p) + 20fps (1080p) Up to 30fps (1080p) + 30fps (720p) + 30fps (VGA) |
| Lens3 | Fixed Iris MPM2.8C 2.8mm, 1/2.7", F/2.0, IR corrected, M12-mount H-FOV 106.7° |
| Programmability | |
| Optics | M12 lens and remote focus module |
| Low-Light Performance | NightView technology |
| Programmable Shutter Speed | Auto/manual 0.1ms ~ 500ms |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| Backlight Compensation | Auto |
| White Balance Mode | Auto/manual |
| Gain Control | Auto |
| Flicker Control* | 5Hz–255Hz adjustable |
| Image Rotation | CorridorView (90°, 180°, and 270° image rotation) + mirror |
| Scaling Resolutions (1080p) | 1920x1080, 1280x720, 960x540, 640x480, 640x360, 320x240 |
| Wide Dynamic Range | Adjustment between WDR and LDR modes |
| Efficiency | SNAPstream+ (Smart Noise Adaptation and Processing) Bit rate and bandwidth limitation control |
| Defog | Supported |
| Miscellaneous Controls | Programmable brightness, contrast, sharpness, saturation, hue |
| Password | 16-digit ASCII character password |
| On-Screen Display (OSD) | Time/date/camera name/custom text |
| Data | |
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG |
| Bit Rate Control | 64K–8000K |
| Smart Codec | Smart GOP/Smart ROI |
| Transmission Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, QoS, DDNS, Zero Configure 10/100Base-T Ethernet network interface, RJ45 |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream |
| Users | Live viewing/Administrator for up to 10 clients |
| Event | |
| Event Trigger | Motion detection, tampering detection, alarm in |
| Notifications | Send a message via e-mail/FTP/NAS, SD Card Recording, Record JPG/MP4 |
| Compliance & Listings | |
| Industry Standard | ONVIF Profile S, G, and T conformant |
| Listings | UL60950-1, E489591 |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings (CE) | EN55032 Class A, EN55035, EN61000-3-2, EN61000-3-3 |
| Mechanical | IK-10 (EN62262), IP66 (EN60529) |
| Environmental | |
| Operating Temperature | -5°C (23°F) to +50°C (122°F) (-F Models) |
| Humidity | 0% to 90% (non-condensing) |
| Storage Temperature | -40°C (-40°F) to +60°C (140°F) |
| Electrical | |
| Alarm Input/Output | 1 input (wet contact)/1 output (wet contact) |
| Power Over Ethernet | PoE IEEE 802.3af, Class 3 Total PoE solution (no external power) |
| Power Consumption | 5.5W PoE max (1080p -F Models) |
| Audio | |
| Streaming | Two-way |
| Compression | G.711 PCM 8 kHz |
| Input/Output | Line in4 / Line output |
| Microphone | Integrated |
| Mechanical | |
| Casing | Tamper-resistant housing, IK-10 impact-resistant In-ceiling mount with die-cast aluminum cover and 2" polycarbonate dome bubble IP66 weather proof standard 3/8" NPT w/ 1/2" NPT adapter included |
| Gimbal | Easy 3-axis camera adjustment w/ 359° pan and 90° tilt and 360° z-axis |
| Unit Dimensions | Ø 4" (100mm) x 3.1" H (78.5mm) (See Dimensions) |
| Packaged Dimensions | 5.6" W (142mm) x 5.6" L (142mm) x 3.5" H (90mm) |
| Unit Weight | 0.95lbs (0.43kg) |
| Packaged Weight | 1.3lbs (0.6kg) |
| On Board Storage | MicroSDXC slot up to 256GB (card not included) |
| Body Color | AV Costar White (Pantone® Cool Gray 1C) |
Name
Description
Size
Downloads
File
ConteraIP_Micro_Dome.pdf
0.8mb
File
ConteraIP_MicroDome.docx
0.1mb

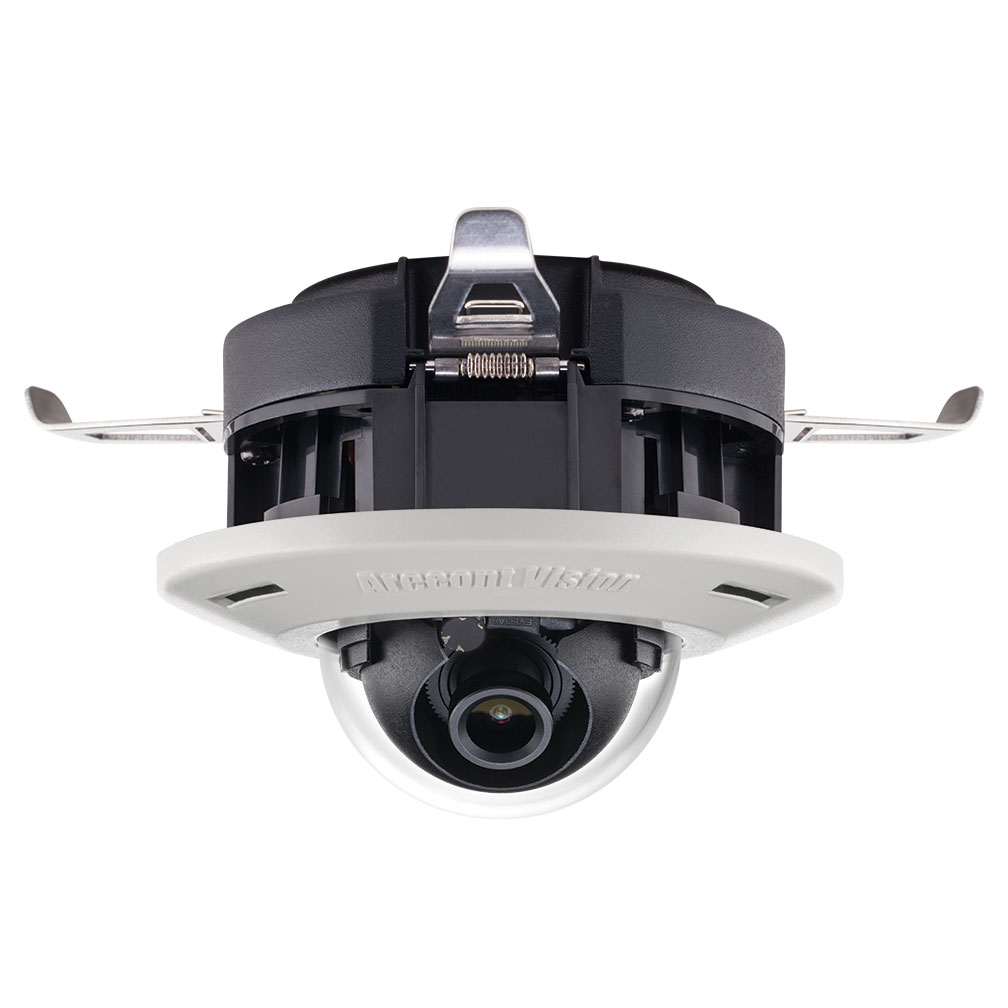

This is a 2-megapixel (1080p) microdome IP camera designed for in-ceiling mounting. It uses a 1/2.8" CMOS sensor and features a fixed M12-mount lens with a focal length of 2.8mm (F2.0) and a 106.7-degree horizontal field of view. It does not have integrated IR illumination. The camera supports video compression in H.265, H.264, and MJPEG formats. The camera includes a 120dB WDR function, day/night operation, defog, and features like CorridorView image rotation. It has an integrated microphone and supports two-way audio. It is housed in an IK-10 and IP66-rated tamper-resistant casing. It operates on PoE (802.3af), with max consumption of 5.5W, and within a temperature range of -5°C to +50°C (23°F to 122°F).
