- • High resolution 1/3” Pixim CMOS Seawolf technology
- • 3.6mm fixed lens
- • 540 TVL / 690 HTVL-E resolution
- • 0.8 Lux @ F1.2 50IRE sensitivity
- • User adjustable height 19.3” ~ 26.3”
- • 1” height interval to adjust the height (height control range 7”)
- • Adjustable lens tilting angle – 10° ~ 10°
- • Adjustable base panning angle – 45° ~ 45°
- • Wide Dynamic Range (WDR)
- • Power requirements: DC12V (included)
| Power | |
| Power Source | DC12V |
| Power Consumption | 170mA (2.0 Watts) |
| Sensor and General Information | |
| Image Sensor | 1/3” Pixim CMOS |
| Lens | 3.6mm fixed lens |
| Minimum Illumination | 0.8 Lux (F1.2) |
| Resolution | 690 HTVL-E |
| Total Pixels | 768 H x 548 V |
| Scanning Frequency | 15.73KHz H x 59.94KHz V |
| Electronic Shutter | 1/25 ~ 1/30, 720 sec. |
| Video Output | 1.0 Vp-p (75Ω Load) |
| Video S/N Ratio | > 50dB (AGC Off) |
| Camera Features | |
| AGC | Yes (Auto) |
| Auto Exposure | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Digital Slow Shutter | Yes |
| Wide Dynamic Range | Yes |
| White Balance | Yes |
| General Information | |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Operating Humidity | 96% RH Max |
| Weight | 2.42lbs (1.1Kg) |
| Dimensions | 2.9” W x 19.3~26.3” H |
| Base | 5.2” x 5.2” |

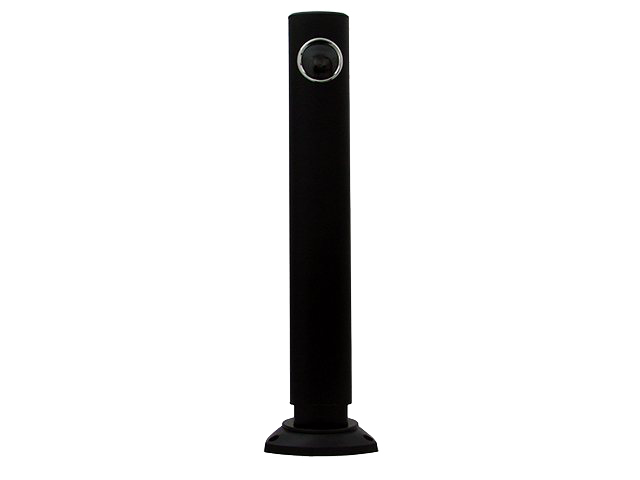

This is a standard definition analog surveillance camera utilizing a 1/3-inch Pixim CMOS image sensor that provides a 690 HTVL-E resolution. It is equipped with a fixed 3.6mm lens and has a minimum illumination requirement of 0.8 lux at an F1.2 aperture. The camera incorporates several processing features for image quality: Wide Dynamic Range for high-contrast scenes, Digital Noise Reduction, and Automatic Gain Control. It also supports Day/Night functionality and Digital Slow Shutter for low-light capture. The unit operates within a temperature range of -10°C to 50°C (14°F to 122°F) and a humidity of up to 96% RH. It is powered by a 12V DC source and has a low power consumption of 2.0 watts (170mA). The dimensions of the camera body are 2.9 inches wide with an adjustable height ranging from 19.3 to 26.3 inches, and it mounts on a 5.2 x 5.2 inch base.
