- • 2 Megapixel Resolution
- • 1/2.8” Sony STARVIS™ CMOS Image Sensor
- • 20x Optical Zoom 16x Digital Zoom Lens
- • 4 IR LEDs upto 196 feet Range
- • Back Light Compensation (BLC)
- • Digital Noise Reduction (DNR)
- • True Wide Dynamic Range (TWDR)
- • Up-the-Coax (UTC)
- • Weatherproof IP66 Rated
- • IP66 Rated
- • 12VDC
| Power | |
|---|---|
| Source | 12VDC |
| PoE | --- |
| Consumption | 1.5A,18W@12VDC |
| Image Sensor | |
| Image Sensor | 1/2.8˝ Sony Starvis™ Sensor |
| Scanning Mode | Progressive Scan |
| Resolution | 1920x1080 |
| Lens | |
| Lens Type | Optical Zoom 20X |
| Lens Focal Length | 4.7-94mm |
| Aperture | F2.5 |
| Iris Control | Auto |
| Performance | |
| Minimum Illumination | 0.35 Lux @ F2.5 (Color) 0.013 Lux @ F2.5 (BW) |
| S/N Ratio | More than 45dB |
| Dynamic Range | True WDR (120db) |
| Electronic Shutter | Auto 1/10,000~1sec, Manual |
| Anti-Flicker | 60Hz |
| Auto Exposure | Yes |
| Auto White Balance | Yes |
| Back Light Compensation | Yes |
| Day / Night | IR Cut Filter with Auto Switch |
| Digital Noise Reduction | 3DNR |
| Pan/Tilt | |
| Tilt Range / Tilt Speed | -5°~90° / Max.380° / sec. (preset) |
| Auto Scan / Preset | 16 / 240 |
| Tour / Pattern | 8/8 |
| Home Function | Yes |
| Audio & Alarm | |
| Alarm In/Out | Input 4 ea / Output 2 ea |
| Audio In/Out | --- |
| Event & Detection | |
| Event Buffering | --- |
| Privacy Masking | --- |
| Event Notification | --- |
| Event Trigger | --- |
| Motion Detection | --- |
| Video Output | |
| CVBS Video Output | BNC |
| Physical | |
| Dimensions (Ø x H x D) | 7.18"Ø x 8. |
| Approvals | |
| Approvals | FCC, CE, KC |
Name
Description
Size
Downloads
File
Camera_Solution_HD_Analog_TVI_PTZ_Cameras_CDT2H20IPZ_Spec_Sheet_CDT2H20IPZ_spec_sheet.pdf
0.1mb

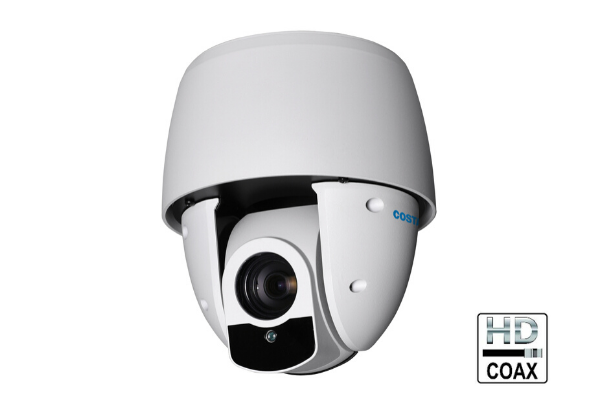

This is a 2-megapixel Full HD (1080p) PTZ dome camera that outputs its video in Analog HD (TVI) format. It features a high-sensitivity 1/2.8-inch Sony Starvis CMOS sensor and a powerful 20x optical zoom lens (4.7-94mm), allowing it to cover wide areas and zoom in on distant details.
It is equipped with True Wide Dynamic Range (120 dB) for challenging lighting and 3D Digital Noise Reduction (DNR). A key feature is its PTZ functionality, supporting 240 preset positions, 8 tour patterns, and a fast preset speed of up to 380°/sec. It provides 4 alarm inputs and 2 alarm outputs for external device integration. It includes a BNC connector for CVBS video output. The camera is powered by 12V DC with a consumption of 18 watts.
