• 2 Megapixel Resolution
• 1/3" CMOS Image Sensor
• 2.8-12mm Remote Focus and Zoom Lens
• 15 IR LEDs with an 65 feet (20m) Range
• Back Light Compensation (BLC)
• Digital Noise Reduction (DNR)
• Wide Dynamic Range (WDR)
• Up-the-Coax (UTC)
• Weatherproof IP66 Rated
• 12VDC or 24VAC
| Power | |
|---|---|
| Source | 12VDC or 24VAC |
| Consumption | 4.5 watts (375mA) |
| Camera | |
| Auto Gain Control | 0-20 steps |
| Brightness | 0-20 steps |
| Day & Night | YES, IR Cut Filter |
| Defog | Yes |
| Motion Detection | Yes |
| Digital Noise Reduction | Yes, 3D |
| Video | |
| Wide Dynamic Range | WDR 120dB |
| Max Distance | 985 FEET (300m) |
| Video Output | HD-TVI(1080P), HD-AHD(1080P) CVBS(960H) 1Vp-p Composite Output(75 Ω /BNC) |
| Sensor | |
| Image Sensor | 1/3” Panasonic CMOS |
| Signal System | PAL/NTSC |
| Resolution (H x V) | 1920x1080 |
| Lens Focal Length | 2.8-12mm Motorized Lens |
| Iris Control | Auto Iris |
| Frame Rate | PAL:25fps ,NTSC:30fps |
| IR LED | 15pcs |
| IR Wavelength | 850nm |
| IR Range | 65 Feet (20m) Range |
| Minimum Illumination | Color:1.0LUX, BW: 0.5 LUX Color DSS:0.017LUX, BW DSS: 0.0008 LUX |
| Shutter Speed | PAL:1/50-1/50000, NTSC:1/60-1/60000 |
| S/N Ratio | More than 42dB(AGC off) |
| Up the Coax | Pelco C, UTC (H) |
| General | |
| IP Rating | IP66 |
| Humidity | 85% RH Max |
| Temperature | 14°F to 131°F (-10°C to 55°C) |
| Dimensions | 5.11" x 4.40" (130 x 112mm) |
| Weight | 0.925 lbs. (420g) |
| Approvals | FCC, CE |

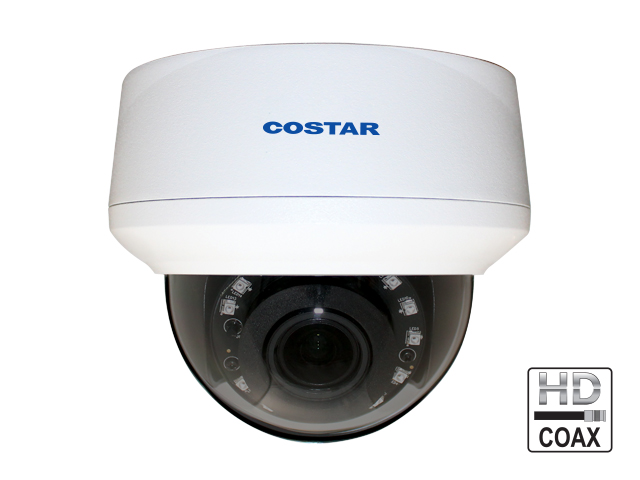

The CDT2S12IFW is a versatile 2MP (1920x1080) HD over Coax dome camera with a motorized varifocal lens (2.8-12mm), allowing for remote adjustment of zoom and focus after installation. It features a 1/3” Panasonic CMOS sensor. The camera supports multiple HD over Coax formats (HD-TVI and HD-AHD) as well as standard CVBS output simultaneously over a single coaxial cable, with a maximum transmission distance of 300 meters (985 ft). It includes key features such as 120dB WDR (Wide Dynamic Range) and 3D Digital Noise Reduction. It is equipped with 15 IR LEDs providing a range of 20 meters (65 ft). It is built for outdoor use with an IP66 rating for protection against dust and powerful water jets. The camera operates within a temperature range of -10°C to 55°C (14°F to 131°F) and up to 85% humidity. It can be powered by 12V DC or 24V AC, consuming 4.5 watts.
