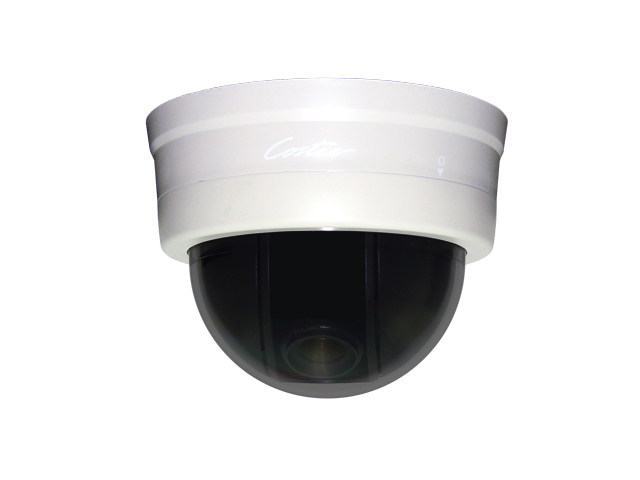

CDC3128IWDWv2 - 1000 TVL FlexDome Camera 2.8-12mm Lens - IDIS
• 1000 TV Lines of resolution
• Indoor Housing (Cool Grey)
• 2.8 - 12 mm Lens (CDC3128IWDC)
• 5 - 50 mm Lens (CDC3150IWDC)
• DC Auto Iris Lens
• Day/Night (D/N)
• Wide Dynamic Range (True WDR)
• Back Light Compensation (BLC)
• Digital Noise Reduction (DNR)
• Unshielded Twisted Pair UTP (optional)
• 12VDC / 24VAC
| Power | |
|---|---|
| Power Source | 12VDC / 24VAC |
| Power Consumption | 1.5 Watts |
| Camera Functions | |
| Auto Gain Control | Yes |
| Auto White Balance | Yes |
| Back Light Compensation | Yes |
| Day / Night | Yes |
| Digital Noise Reduction | Yes; 3DNR |
| Maximizer | Yes; X2 ~ X64 |
| Motion Detection | Yes; 4 zones |
| Privacy Masking | Yes; 16 zones |
| Wide Dynamic Range | Yes; Real WDR |
| Sensor | |
| Image Sensor | 1/3" Sony CMOS Sensor |
| Active Pixels Number | 1.3 megapixels |
| Scanning Mode | Progressive Scan |
| Resolution | 1000TVL |
| Video Output | 1.0 Vp-p (75Ω Load) |
| Minimum Illumination | Color: 0.1 Lux B&W: 0.01 Lux |
| Shutter Speed | 1/60 ~ 1/60,000 sec |
| Scanning Frequency | 62.25Hz (CDC3128IWD) 59.94Hz (CDC3150IWD) |
| S/N Ratio | ≥ 55dB |
| Model | |
| Model Lens Resolution | CDC3128IWDC 2.8 - 12 mm 1000TVL CDC3150IWDC 5 - 50 mm 1000TVL |
| General Information | |
| Temperature | -14°F to +140°F (-10°C to +60°C) |
| Humidity | 85% RH Max |
| Weight | 1.03 lbs. (450g) |
| Dimensions | Ø5.27” (134mm) Weight 2.09 lbs. (0.95kg) |
| Power Input | 2-Point Screw |
| Video Output | BNC Connector |
| Lens Mount | Fixed Mount |
The CDC3128IWDWv2 is a high-resolution analog dome camera designed for professional surveillance. It features a 1/3" Sony CMOS sensor delivering 1000 TVL (TV Lines) of resolution. It offers a flexible 2.8-12mm varifocal lens (with a 5-50mm variant in the similar CDC3150IWDC model), allowing for manual adjustment of the field of view during installation. The camera provides good image quality with features like Real WDR (Wide Dynamic Range) for high-contrast scenes and 3D Digital Noise Reduction (DNR). It has a minimum illumination of 0.1 lux (color) / 0.01 lux (B&W) and includes Day/Night functionality with an IR cut filter. It outputs a standard 1.0 Vp-p composite video signal via a BNC connector. It can be powered by 12V DC or 24V AC, consuming only 1.5 Watts. The camera operates within a wide temperature range of -10°C to 60°C (-14°F to 140°F) and up to 85% humidity.
