• 2 Megapixel Resolution (1080p)
• 1/2.8″ CMOS Image Sensor
• 2.8-12 mm Remote Focus and Zoom Lens
• 30 IR LEDs with a 131.2 feet (40 m) Range
• Back Light Compensation (BLC)
• Digital Noise Reduction (DNR)
• Wide Dynamic Range (WDR)
• Up-the-Coax (UTC)
• Weatherproof IP67 Rated
• 12 VDC or 24 VAC
| Power | |
|---|---|
| Source | 12 VDC or 24 VAC |
| Max Consumption | 5.5 W |
| Sensor and Optics | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Resolution | 1920 x 1080 |
| Frame Rate | PAL: 25 fps; NTSC: 30 fps |
| Minimum Illumination | Color: 0.001 Lux (F1.2, AGC ON); B/W: 0 Lux (IR LED ON) |
| S/N Ratio | More than 42 dB |
| Dynamic Range | 120 dB (True WDR) |
| Electronic Shutter | Auto/Manual, 1/30-1/30000s |
| Lens Type | Motorized Vari-focal |
| Lens Focal Length | 2.8-12 mm |
| Aperture | F1.6 |
| Iris Control | Auto Iris |
| IR LEDs | 30 ea |
| IR Range | 131.2 ft (40 m) |
| Viewing Angle | Wide : 108.3°~ 43.2° (H), 57.4°~ 24.3° (V) |
| Video Features | |
| Max Signal Distance | 985 ft (300m) |
| Video Output | AHD/TVI/CVI Output 1; CVBS Output 2 |
| Camera Functions | |
| On Screen Display | Yes |
| Gain Control | Auto/Manual |
| White Balance | Auto/Manual |
| Back Light Compensation | Yes |
| Mirroring | Yes |
| Day / Night | IR Cut Filter with Auto Switch |
| Defog | Yes |
| Privacy Masking | Yes |
| Motion Detection | Yes |
| Digital Noise Reduction | Yes, 3D |
| General Information | |
| Environmental Rating | IP67 |
| Approvals | FCC, CE |
| Humidity | Less than 85% RH |
| Temperature | 14°F ~ +131°F (-10°C ~ +55°C) |
| Dimensions (L x W x H) | 9.14" x 3.15" x 3.15" (232 mm × 80 mm × 80 mm) |
| Weight | 1.43 lbs (0.65 kg) |

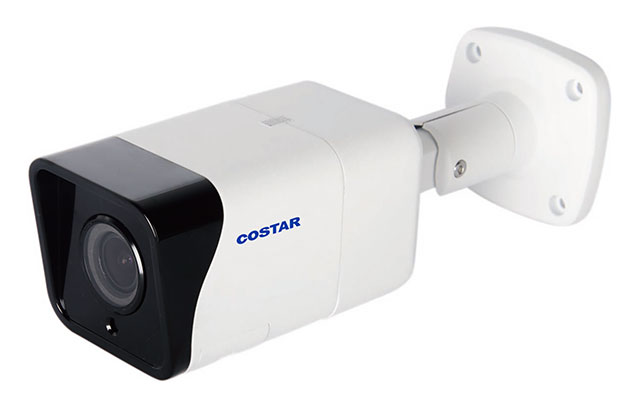

The CBT2S12VIFW is a versatile 2MP (1920x1080) HD over Coax bullet camera designed for robust outdoor performance. Its key feature is a motorized varifocal lens with a focal length of 2.8-12mm, allowing remote adjustment of the field of view (from 108.3° to 43.2° horizontally) without physical access to the camera. It features a 1/2.8" CMOS sensor and provides exceptional low-light capability with 0.001 lux in color mode and illumination down to 0 lux using its 30 built-in IR LEDs, which have a range of 40 meters (131 ft). The camera includes 120dB True WDR and is rated IP67 for dust and water resistance. It supports multiple HD over Coax formats (AHD, TVI, CVI) and standard CVBS output simultaneously over a single coaxial cable, with a maximum transmission distance of 300 meters (985 ft). It can be powered by 12V DC or 24V AC, with a maximum consumption of 5.5W. The camera operates within a temperature range of -10°C to 55°C (14°F to 131°F) and up to 85% humidity.
