CDT2S12IFW-B - 2MP HDoC Outdoor Dome Camera - IDIS
Part number:
Price:
- • 2 megapixel resolution (1080p)
- • 2.8 – 12 mm remote focus and zoom lens
- • 1/3″ CMOS Progressive Scan image sensor
- • 15 IR LEDs with a 65 foot (20m) range
- • True day/night with IR cut filter
- • Back Light Compensation (BLC)
- • Digital Noise Reduction (DNR)
- • Wide Dynamic Range (WDR)
- • Up-the-Coax camera control (UTC)
- • 12VDC or 24VAC
| Power | |
|---|---|
| Source | 12VDC or 24VAC |
| Consumption | 4.5 watts (375mA) |
| Camera Functions | |
| Auto Gain Control | 0-20 steps |
| Brightness | 0-20 steps |
| Day & Night | YES, IR Cut Filter |
| Defog | Yes |
| Motion Detection | Yes |
| Digital Noise Reduction | Yes, 3D |
| Wide Dynamic Range | WDR 120dB |
| Max Distance | 985 FEET (300m) |
| Video Features | |
| Video Output | HD-TVI(1080P), HD-AHD(1080P) CVBS(960H)1Vp-p Composite Output(75 Ω /BNC) |
| Signal System | PAL/NTSC |
| Frame Rate | PAL:25fps ,NTSC:30fps |
| Up the Coax | Pelco C, UTC (H) |
| Sensor and General Information | |
| Image Sensor | 1/3” Panasonic CMOS |
| Resolution (H x V) | 1920x1080 |
| Lens Focal Length | 2.8-12mm Motorized Lens |
| Iris Control | Auto Iris |
| IR LED | 15pcs |
| IR Wavelength | 850nm |
| IR Range | 65 Feet (20m) Range |
| Minimum Illumination | Color:1.0LUX, BW: 0.5 LUX Color:DSS:0.017LUX, BW DSS: 0.0008 LUX |
| Shutter Speed | PAL:1/50-1/50000, NTSC:1/60-1/60000 |
| S/N Ratio | More than 42dB(AGC off) |
| IP Rating | IP66 |
| Humidity | 85% RH Max |
| Temperature | 14°F to 131°F (-10°C to 55°C) |
| Dimensions | 5.11˝ x 4.40˝ (130 x 112mm) |
| Weight | 0.925 lbs. (420g) |
| Approvals | FCC, CE |
Name
Description
Size
Downloads
File
Dome_Cameras_Indoor_CDT2S12IFW_Spec_Sheet.pdf
0.5mb

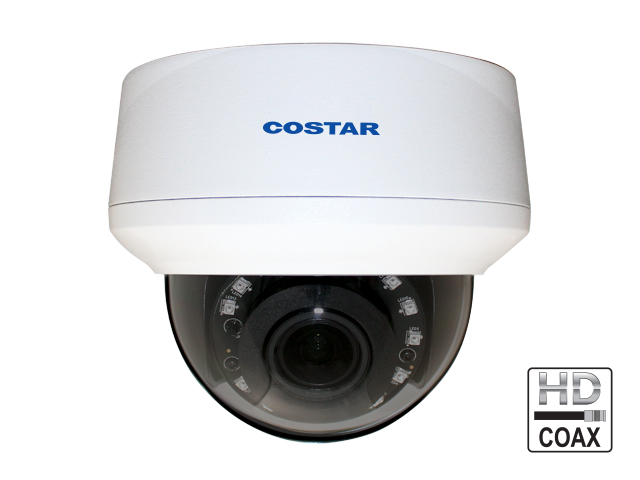

This is a 2-megapixel Full HD (1080p) analog HD dome camera designed for outdoor use. It features a 1/3-inch Panasonic CMOS sensor and a manual 2.8mm to 12mm motorized vari-focal lens, allowing the field of view to be adjusted from wide-angle to a more focused telephoto setting. It supports multiple analog HD formats (HD-TVI and HD-AHD) and standard CVBS output.
For night vision, it incorporates 15 infrared LEDs with an effective range of 20 meters. It features 120 dB Wide Dynamic Range and 3D Digital Noise Reduction. It is designed for outdoor use with an IP66 weatherproof rating and operates within a temperature range of -10°C to 55°C. It can be powered by 12V DC or 24V AC, with a low power consumption of 4.5 watts.
