• Converts TVI / AHD / CVI signals to composite (CVBS) video
• Built in Loop out
• Status lights
• Green: Power on / off
• Blue: Video signal present
• 2" x 4.5" x 1" (49mm x 112 x 24)
• 0.21lbs (140g)
• 12VDC, 250mA
| Resolution | AHD/HD-TVI/CVI: 720p@25/30, 720p@50/60hz, 1080p@25/30Hz |
| Video Output | CVBS (NTSC、PAL) x 1 , HD Loop out x 1 |
| Video Input | BNC x1 |
| LED Indication | LED x 2 (Green, Blue) |
| Power Supply | DC 12V 500mA |
| Power Consumption | 350mA (Max) |
| Temperature | Operation: -10～70℃, Storage: -20～85℃, Humidity: up to 95% |
| Dimension (mm) | 49.2 x 111.4 x 25 |
| Weight (g) | 140 |
Name
Description
Size
Downloads
File
CAT01C_Spec_Sheet.pdf
1.8mb
File
CAT01_Quick_Start_Guide.pdf
0.3mb

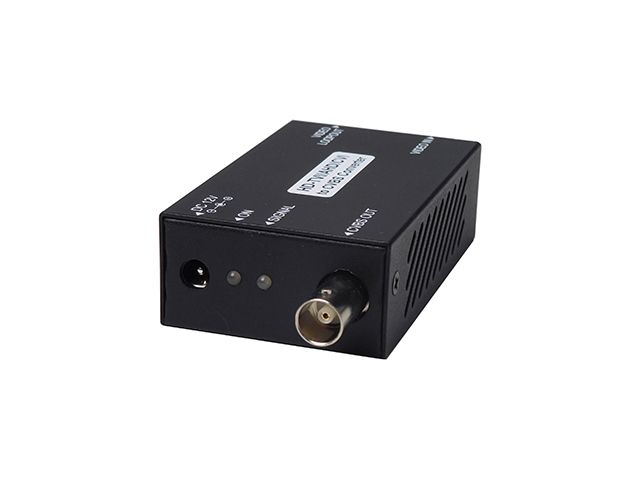

This is a video signal converter that accepts a high-definition analog input (AHD, HD-TVI, or CVI) at resolutions up to 1080p and outputs a standard-definition CVBS signal (NTSC/PAL). It features one BNC video input, one CVBS output, and one high-definition loop-through output. The device is powered by a 12V DC, 500mA supply with a maximum consumption of 350mA. It operates within a temperature range of -10°C to 70°C and up to 95% humidity. Its dimensions are 49.2 x 111.4 x 25 mm and it weighs 140 grams.
