• 2 Megapixel Resolution
• 1/3" CMOS Image Sensor
• 2.8-12mm AI Manual Focus Lens
• 12 IR LEDs with an 65 feet (20m) Range
• Back Light Compensation (BLC)
• Digital Noise Reduction (DNR)
• Wide Dynamic Range (WDR)
• Up-the-Coax (UTC)
• Weatherproof IP66 Rated
• 12VDC or 24VAC
| Power | |
|---|---|
| Source | 12VDC or 24VAC |
| Consumption | 4.5 watts (375mA) |
| Camera | |
| Auto Gain Control | 0-20 steps |
| Brightness | 0-20 steps |
| Day & Night | Yes, IR Cut Filter |
| Defog | Yes |
| Motion Detection | Yes |
| Digital Noise Reduction | Yes, 3D |
| Video | |
| Wide Dynamic Range | 120dB (WDR) |
| Max Distance | 985 Feet (300m) |
| Video Output | HD-TVI(1080P), HD-AHD(1080P) CVBS(960H) 1Vp-p Composite Output(75 Ω /BNC) |
| Sensor | |
| Image Sensor | 1/3” Panasonic CMOS |
| Signal System | PAL/NTSC |
| Resolution (H x V) | 1920x1080 |
| Lens Focal Length | 2.8-12mm |
| Iris Control | Auto Iris |
| Frame Rate | PAL:25fps ,NTSC:30fps |
| IR LED | 12pcs |
| IR Wavelength | 850nm |
| IR Range | 65 Feet (20m) Range |
| Minimum Illumination | Color:1.0LUX, BW: 0.5 LUX Color DSS:0.017LUX, BW DSS: 0.0008 LUX |
| Shutter Speed | PAL:1/50-1/50000, NTSC:1/60-1/60000 |
| S/N Ratio | More than 42dB(AGC off) |
| Up the Coax | Pelco C, UTC (H) |
| General | |
| IP Rating | IP66 |
| Humidity | 85% RH Max |
| Temperature | -10°F to 131°F (-23°C to 55°C) |
| Dimensions | 5.11" x 4.40" (130 x 112mm) |
| Weight | 1.984 lbs. (900g) |
| Approvals | FCC, CE |

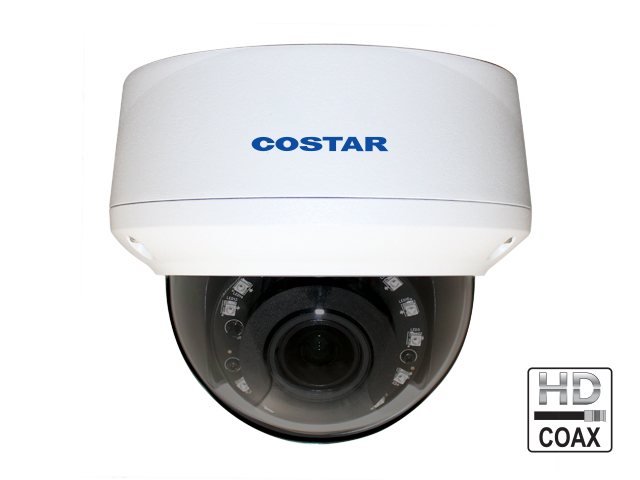

The CDT2S12VI is a versatile 2MP (1920x1080) HD over Coax dome camera designed for outdoor surveillance. It features a 1/3” Panasonic CMOS sensor and a varifocal lens (2.8-12mm) with auto iris, allowing for manual adjustment of the field of view during installation. The camera supports multiple HD over Coax formats (HD-TVI and HD-AHD) as well as standard CVBS output simultaneously over a single coaxial cable, with a maximum transmission distance of 300 meters (985 ft). It includes key features such as 120dB WDR (Wide Dynamic Range) and 3D Digital Noise Reduction. It is equipped with 12 IR LEDs providing a range of 20 meters (65 ft). It is built for outdoor use with an IP66 rating for protection against dust and powerful water jets. The camera operates within a wide temperature range of -23°C to 55°C (-10°F to 131°F) and up to 85% humidity. It can be powered by 12V DC or 24V AC, consuming 4.5 watts.
