CCC1K36BW - 3.6 mm 850 TVL Micro Camera Color - IDIS
• 850 Horizontal TV Lines
• 3.6mm Lens
• 1/3.2˝ 1.3M SONY STARVIS CMOS Sensor
• WDR, 2D Noise Reduction
• Digital Day & Night
• CVBS(1.0Vp-p Composite 75Ω)
| Power | |
|---|---|
| Source | 12VDC (±10%) |
| Consumption | 12VDC (±10%), 60mA max. |
| Sensor | |
| Image Sensor | 1/3.2" Exmor RS Progressive Scan SONY STARVIS CMOS |
| Effective Pixels | 1.27MP 1297(H) x 977(V) |
| Max. Video Resolution Horizontal | 850TV Lines |
| Lens Type | Board Mount Lens |
| Focal Length | 3.6mm, F2.0 |
| Angle of View | 94.91° (D) x 81.9° (H) x 66.5° (V) |
| Minimum Illumination | 0.2 Lux (30IRE, F2.0, AGC MAX) |
| Gamma | γ=0.45 |
| White Balance | ATW / PUSH / USER1 / USER2 / MANUAL / PUSH LOCK |
| Dynamic Range | WDR/BLC WDR / ATR / OFF D-WDR OFF / HLC / BLC Level 138.1dB |
| Electronic Shutter Speed | AUTO or 1/60(50) ~ 1/100,000 |
| Auto Gain Control(AGC) | MIN, 6, 12, 18, 24, 30, 36, 42, 48, MAX |
| Day & Night | Electronic Day & Night |
| Noise Reduction | 2D-DNR (Y/C, Y, C, OFF) |
| Image Rotation | OFF, H-FLIP, V-FLIP, HV-FLIP |
| Defog | OFF, AUTO |
| Sharpness | 0-255 |
| General | |
| OSD control | Joystick |
| Video Output Mode | CVBS(1.0Vp-p Composite 75Ω) NTSC/PAL |
| IP Rating | IP67 |
| Operating Temperature | -10°C ~ +50°C (Humidity less than 80%) |
| Storage Temperature | -20°C ~ +60°C (Humidity less than 80%) |
| Dimension (H x W x L) | 1.18" x 1.18" x 0.71" (30 x 30 x 18.1 mm) |
| Weight | Approx. 27.7g |

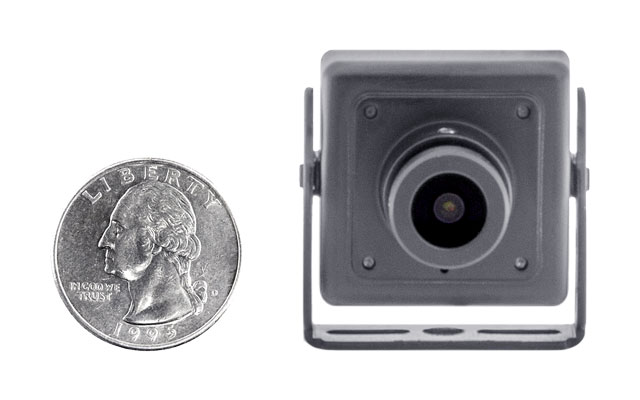

The CCC1K36BW is an ultra-compact, board-level analog micro camera designed for discrete or embedded surveillance applications. It features a high-quality 1/3.2" Sony STARVIS CMOS sensor that delivers 850 TV Lines of resolution. It is equipped with a fixed 3.6mm F2.0 lens providing a wide 94.91° diagonal field of view. The camera offers good image features including a Wide Dynamic Range (WDR) level of 138.1dB for handling high-contrast scenes and Electronic Day & Night functionality. Its minimum illumination is 0.2 lux. It outputs a standard 1.0 Vp-p composite video (CVBS) signal in NTSC/PAL formats. With an IP67 rating, it is fully dust-tight and protected against temporary immersion, making it suitable for harsh environments. It operates within a temperature range of -10°C to 50°C (14°F to 122°F) and up to 80% humidity. It is powered by 12V DC (±10%), consuming a maximum of 60mA (approx. 0.72W).
