- • Super high 600 TV Lines of resolution
- • 2.8 mm fixed mount lens
- • 1/3″ color CCD image sensor
- • 130° wide angle view
- • Black Light Compensation (BLC)

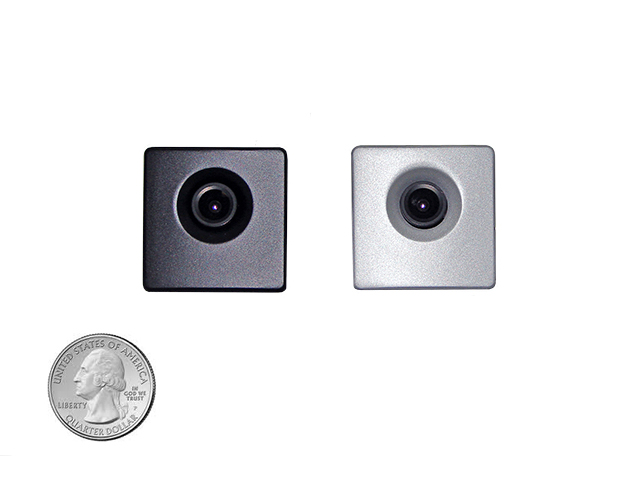

- • Available in black or silver
- • Power requirements: DC12V
| Power | |
| Power Source | DC12V |
| Power Consumption | 1.5 Watts |
| Sensor and General Information | |
| Image Sensor | 1/3” Color CCD |
| Lens | 2.8 mm fixed mount |
| Minimum Illumination | 1.0 Lux |
| Total Pixels | 811 H x 507 V |
| Horizontal Resolution | 600 TVL |
| Scanning System | 2:1 interlace |
| Scanning Frequency | 15.734KHz H x 59.94Hz V |
| S/N Ratio | More than 50dB (AGC On) |
| Video Output | Composite Video 1,0 Vp-p/75Ω |
| Camera Functions | |
| BLC | Yes |
| AWB | Yes |
| Auto Exposure | Yes |
| Gain Control | Yes |
| Gamma | 0.45 |
| General Operating | |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
The camera is built around a 1/3-inch color Charge-Coupled Device image sensor, which delivers a horizontal resolution of 600 TV Lines. This resolution represents standard definition in the analog video domain. It is equipped with a fixed 2.8 mm lens, which provides a wide-angle field of view suitable for monitoring entryways or small rooms from a concealed position.For operation in varying lighting, it has a minimum illumination requirement of 1.0 Lux and includes standard analog camera processing features: Back Light Compensation to handle strong backlighting, Auto White Balance, and Automatic Gain Control to boost the signal in low light. The video is output as a standard 1.0 Vp-p composite video signal over a 75-ohm connection. The device is designed for indoor environments, with an operating temperature range of 32°F to 104°F (0°C to 40°C). It is powered by a common 12VDC source and consumes a very low 1.5 watts of power, making it simple to integrate into existing analog systems or power with a small adapter.
