- • Super high 600 TV Lines of resolution
- • 2.8 mm fixed mount lens
- • 1/3″ color CCD image sensor
- • 130° wide angle view
- • Black Light Compensation (BLC)

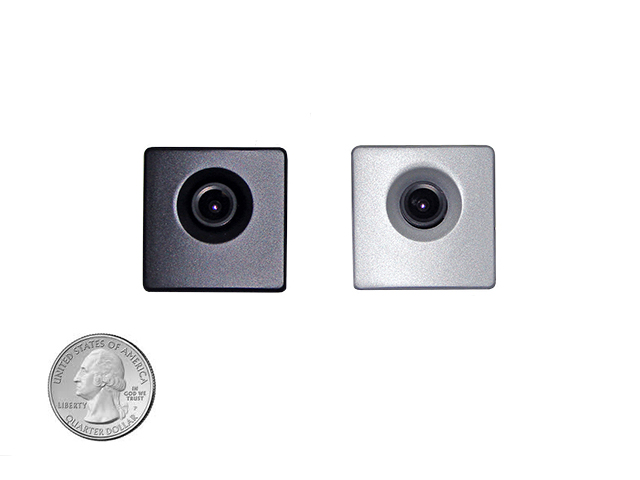

- • Available in black or silver
- • Power requirements: DC12V
| Power | |
| Power Source | DC12V |
| Power Consumption | 1.5 Watts |
| Sensor and General Information | |
| Image Sensor | 1/3” Color CCD |
| Lens | 2.8 mm fixed mount |
| Minimum Illumination | 1.0 Lux |
| Total Pixels | 811 H x 507 V |
| Horizontal Resolution | 600 TVL |
| Scanning System | 2:1 interlace |
| Scanning Frequency | 15.734KHz H x 59.94Hz V |
| S/N Ratio | More than 50dB (AGC On) |
| Video Output | Composite Video 1,0 Vp-p/75Ω |
| Camera Functions | |
| BLC | Yes |
| AWB | Yes |
| Auto Exposure | Yes |
| Gain Control | Yes |
| Gamma | 0.45 |
| General Operating | |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
Name
Description
Size
Downloads
File
CCC3602JC_Spec_Sheet.pdf
0.2mb
The CCC3602JCBK is an analog door jam camera using a 1/3” color CCD sensor with a 600 TVL resolution and a fixed 2.8mm lens. It has a minimum illumination of 1.0 lux and features backlight compensation (BLC), automatic white balance (AWB), and auto exposure. It operates from 0°C to 40°C and is powered by 12VDC, consuming 1.5 watts.
