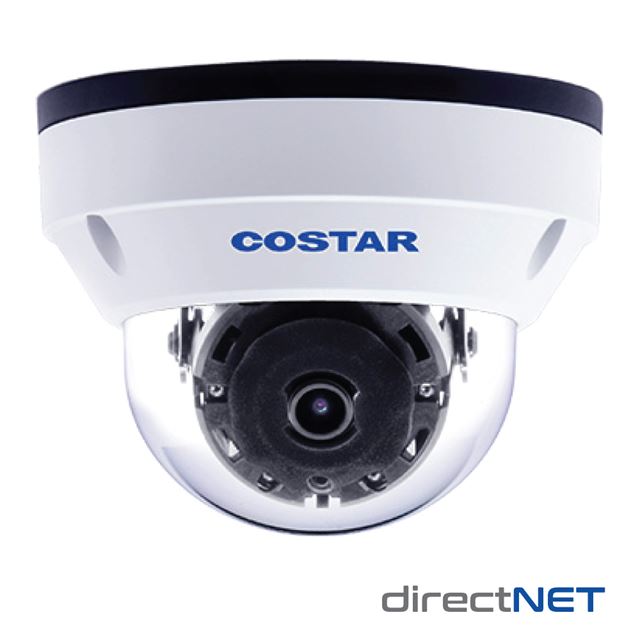

CDI5D28VIW - 5MP DirectNET Vandal Dome - IDIS
- • 5MP (2594 x 1944) Resolution
- • 1/2.8″ CMOS Progressive Scan image sensor
- • 2.8mm Fixed Lens
- • True day / night with IR cut filter
- • 4 IR LEDs with a 98.4ft (30m) Range
- • DirectNET protocol
- • MicroSD memory card supported
- • Back Light Compensation (BLC)
- • Digital Noise Reduction (DNR)
- • True Wide Dynamic Range (T-WDR)
- • Multiple compression (H.265, H.264, MJPEG)
- • IP67 weatherproof rated with heater
- • IK10 vandal resistant housing
- • Power over Ethernet (PoE)
- • NDAA Compliant
| Camera | |
|---|---|
| Model | CDI5D28VIW |
| Image Sensor | Sony IMX335 CMOS Progressive Sensor |
| Optical Format | 1/2.8" |
| Minimum Illumination | Color (Day Mode) 0.15 Lux @ F2.0 B/W (Night Mode) 0 Lux (IR LED On) |
| Full FOV Resolution | 2592 H x 1944 V |
| Scaling | Yes |
| IR Illumination | Yes |
| Dynamic Range | 120dB (True WDR) |
| Frame Rates* Single Stream | Up to 30fps (5MP) |
| Lens | Fixed Iris 2.8mm, F2.0, H-FOV = 104.8°, V-FOV = 76.9°, D-FOV = 130°, IR Corrected |
| Programmability Optics | Fixed-focal |
| S/N Ratio | More than 45dB |
| Noise Reduction | 3D Noise Reduction |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Privacy Masking | 8 Zones |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Backlight Compensation | Off / On |
| Scaling | 4:3: 2592x1944, 1920x1440, 1280x960x 640x480 16:9: 2592x1456, 1920x1080, 1280x720, 640x360 |
| Wide Dynamic Range | 120dB True WDR |
| Image Settings | Exposure, White Balance, Self-Adjusting Video Mode (Sharpness, Contrast, Colors, Brightness Control) |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| On-Screen Display (OSD) | Date / Time / Custom Text |
| Data Transmission | |
| Compression Type | H.265, H.264 (MP), Motion JPEG |
| Compression Level | Basic, Standard, High, Very High |
| Bit Rate Control | Constant Bitrate / Variable Bitrate |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Intelligent Codec | Supported |
| Motion Adaptive Transmission (MAT) | Off / On |
| Transmission Protocols | DirectNET 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, UPnP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS |
| Network Interface | 10/100Base-T Ethernet network interface, RJ45 |
| Multi-Streaming | Quadruple |
| Remote Access Client | DirectNET NVR Connection, StarNET Web, StarNET Mobile, StarNET PRO |
| Event Management | |
| Event Trigger | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Notifications | Remote S/W, Email (with Image) |
| Compliance | |
| IP Camera Protocols | DirectNET 2.0, ONVIF Profile S conformant |
| Approvals | FCC, CE, KC |
| Mechanical | IK-10, IP67 |
| Environmental | |
| Operating Temperature | -22°F (-30°C) to + 131°F (55°C) |
| Humidity | 0% to 90% RH |
| Boot-Up Temperature | 32°F (0°C) to + 131°F (55°C) |
| General Electrical | |
| Alarm Input/Output | 1 TTL input / 1 open collector output |
| Power | PoE IEEE 802.3af (Class 3) |
| Power Consumption | PoE 7.6W |
| IR Illuminator | |
| LEDs | 4pcs |
| Projection Distance | 98.4ft (30m) max |
| Audio Electrical | |
| Streaming | Two-way |
| Compression | ADPCM 16K, G.726, G.711 μ-Law, G.711 a-Law |
| Input/Output | Line in / Line output |
| Mechanical | |
| Casing | IP67 weather proof standard Impact resistant, IK-10 rated |
| Gimbal | 3-axis camera adjustment with -170°~ 170° pan, -5º~ 67° tilt, and -109°~ 109° rotation |
| Dimensions | Unit Ø 4.75" (120.6mm) x 3.66" H (92.9mm) |
| Weight | Unit 1.06lbs (0.48kg) |
| On Board Storage | MicroSDXC slot up to 512GB (card not included) |
This is a 5-megapixel vandal-resistant dome camera. It is built around a 1/2.8-inch Sony IMX335 CMOS sensor and a fixed 2.8mm F2.0 lens, providing an ultra-wide 104.8-degree horizontal field of view. It outputs a maximum of 30 frames per second at its full 5MP (2592x1944) resolution.
For night vision, it incorporates four infrared LEDs with an effective range of 30 meters. Its imaging features include 120 dB True Wide Dynamic Range (WDR) and 3D Digital Noise Reduction (DNR). It supports modern H.265 and H.264 compression, quadruple video streaming, and local storage via a microSDXC card slot (up to 512GB). It provides two-way audio with audio I/O and one alarm input and output. The camera is highly durable with IK10 vandal resistance and IP67 protection against dust and water. It operates within a temperature range of -30°C to 55°C and is powered via PoE (IEEE 802.3af, Class 3), consuming 7.6 watts. It supports dual protocols: the proprietary DirectNET 2.0 for IDIS systems and standard ONVIF Profile S for third-party integration.
