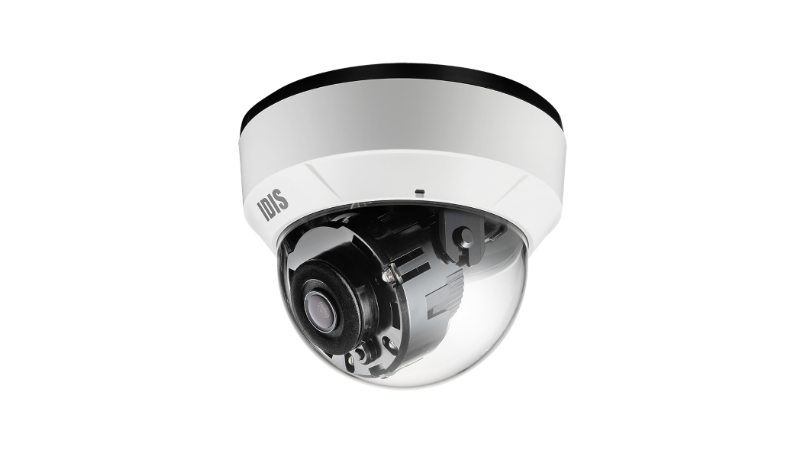

DC-D4216RX 2.8mm - Full HD IR Dome Camera - IDIS
• Easy Installation with DirectIP NVR
• Full HD (1080p) Resolution
• Fixed-focal Lens (f = 2.8 mm)
• micro SD / SDHC / SDXC
• Two-way Audio
• Alarm In / Out
• PoE (IEEE 802.3af Class 2)
• Day and Night (ICR)
• True Wide Dynamic Range (WDR)
• IR LED (Distance: 30 m / 98.4 ft)
• 3-axis Mechanical Design for Installation
• Supports ONVIF
• NDAA Compliance
| VIDEO | |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | f = 2.8 mm |
| Aperture | F2.0 (f = 2.8 mm) |
| Iris Control | Fixed IRIS |
| Angular Field of View | 111.6º (H), 61.45º (V), 127.3º (D) |
| Pan / Tilt Range | Pan: -170° ~ 170°, Tilt: -5° ~ 67.5°, Rotate: -109° ~ 109° |
| Min. Illumination | Color : 0.1 Lux @ F2.0 B/W : 0 Lux (IR LED On) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR Cut Filter with Auto Switch |
| IR Distance (LEDs) | 30 m / 98.4 ft (4ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode Sharpness, Contrast, Colors, Brightness Control |
| Backlight Compensation | On / Off |
| Image Stabilizer | - |
| De-fog | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| NETWORK | |
| Video Compression | H.265, H.264 (MP) M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.265 - VBR / CBR H.264 - VBR / CBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF |
| Max. Frame Rate | 30ips : 1920 x 1080 (WDR) |
| Supported Resolution | 1920 x 1080, 1280 x 720, 640 x 360, 352 x 240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS, SSL Encryption |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD / SDHC / SDXC, Smart Failover (Up to 256GB) |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Alarm in, Audio Detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (With Image) |
| Audio In / Out | 1(Built MIC)+1 / 1 |
| Alarm In / Out | 1 / 1 |
| ENVIRONMENTAL | |
| Vandal Proof Casing | - |
| Outdoor Ready | - |
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F) *Starting Up at Above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| ELECTRICAL | |
| Power Source | PoE (IEEE 802.3af Class 2) |
| Power Consumption | PoE, IEEE 802.3af (Class 2), 4.6W |
| Approvals | FCC, CE, KC |
| MECHANICAL | |
| Dimensions | Ø110 x 88 mm (Ø4.33” x 3.46”) |
| Weight | 0.26 kg (0.57 lb) |
This is a Full HD IR dome camera. It features a 2-megapixel resolution of 1920 by 1080 pixels. It is equipped with a fixed 2.8-millimeter lens. For low-light operation, it incorporates infrared illuminators effective up to 30 meters. The imaging includes True Wide Dynamic Range. It supports two-way audio and provides alarm input and output interfaces. Local storage is available via a Micro SD card slot. The camera housing features a 3-axis mechanical design for flexible installation. It is powered via Power over Ethernet using the IEEE 802.3af standard.
