DC-D4218WRA 4.0mm - 2MP AI Dome Camera H.265 LightMaster NIR - IDIS
- • 2MP (1920 x 1080) resolution
- • IDIS Deep-Learning Analytics (IDLA)
- • IR LED (Distance : 30 m / 98.4 ft)
- • NIR Sensor
- • Day and night (ICR)
- • True wide dynamic range (WDR)
- • Easy installation with DirectIP NVR
- • H.265 and Intelligent Codec
- • PoE (IEEE 802.3af Class 3)
- • IK10, IP67
- • Alarm in / out
- • Audio in / out
- • Micro SD/SDHC/SDXC
| Video | |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 4.0mm |
| Aperture | F1.6 |
| Iris Control | Fixed Iris |
| Angular Field of View | 87.5(H), 44.4º(V), 104.9º(D) |
| Min. Illumination | COLOR : 0.1 lux @ F1.6 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 30m / 98.4 ft (4ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | - |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Object Metadata: Human, Vehicle, Face IDLA: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection ETC: Video Motion Detection, Active Tampering Alarm |
| Video Out | - |
| Pan/Tilt/Rotate | |
| Pan Range | -170° ~ 170° |
| Tilt Range | -5° ~ 67.5° |
| Rotate Range | -109° ~ 109° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0 |
| Max. Frame Rate | 60ips : 1920 x 1080 30ips : 1920 x 1080 (WDR) |
| Supported Resolution | 1920x1080, 1280x720, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -30°C ~ +60°C (-22°F ~ +140°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE IEEE 802.3af (Class 3) |
| Power Consumption | PoE, IEEE 802.3af (Class 3), 8W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø120.6 x 92.9mm(Ø4.75” x 3.65”) |
| Weight | 0.490kg(1.08lb) |

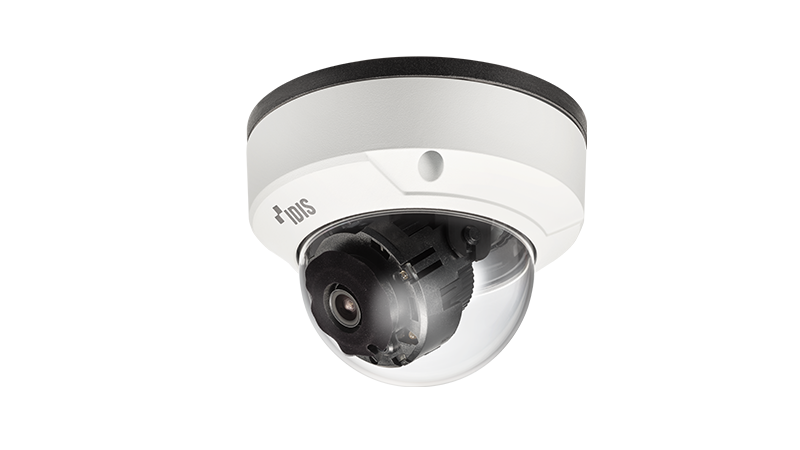

This is a 2MP AI dome camera. It features a 2-megapixel resolution of 1920 by 1080 pixels. It is equipped with a fixed 4.0-millimeter lens and a Near-Infrared sensor for enhanced low-light sensitivity. For night vision, it incorporates infrared illuminators effective up to 30 meters. The imaging includes True Wide Dynamic Range and Intelligent Codec with H.265 compression. Its defining feature is IDIS Deep-Learning Analytics for advanced video intelligence. It supports audio input and output and provides alarm input and output interfaces. The housing offers robust protection with IP67-rated resistance against dust and water and an IK10 rating for vandal resistance. Local storage is available via a Micro SD card slot. The camera is powered via Power over Ethernet using the IEEE 802.3af standard.
