DC-D4831HRX-W - 8MP Vandal-Resistant IR Dome Camera - IDIS
- • 8MP (3840x2160) resolution
- • Motorized Vari-focal lens (f=2.7 - 13.5mm)
- • Micro SD/SDHC/SDXC
- • Two-way audio(DC-D4831HRX only)
- • Alarm in / out
- • IK10 / IP67 supports
- • Built-in heater
- • PoE (IEEE 802.3af Class 3), 12V DC
- • Day and night (ICR)
- • True wide dynamic range (WDR)
- • IR LED (Distance : 40m / 131.2ft )
- • 3-axis mechanical design for installation
- • Easy installation with DirectIP NVR
- • NDAA Compliance
- • White Base
| Video | |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 3840 x 2160 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | f=2.7-13.5mm |
| Aperture | F1.8 - 3.32 |
| Iris Control | DC IRIS |
| Angular Field of View | Wide : 110.6°(H) 57.3°(V) 134.1°(D), Tele : 32.6°(H) 18.3°(V) 37.4°(D) |
| Pan/Tilt/Rotate Range | Pan: -175° ~ 175°, Tilt: 0° ~ 64°, Rotate: -177° ~ 177° |
| Min. Illumination | COLOR : 0.2 lux @ F1.8 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB(True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 40m/131.2ft (6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Network | |
| Video Compression | H.265, H.264 (MP) M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes(DC-D4831HRX only) |
| IP Camera Protocol | DirectIP 2.0 |
| Max. Frame Rate | 30ips : 3840 x 2160 15ips : 3840 x 2160(WDR) |
| Supports Resolution | 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x ,IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection(DC-D4831HRX only), Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Pre-recorderd Voice Alert(IDIS protocol) | On / Off |
| Audio In/ Out | 1 / 1(DC-D4831HRX only) |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67, Heater |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) / Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 3) |
| Power Consumption | 12V=, 1.2A, 14.4W PoE, IEEE 802.3af(Class 3), 12.4W |
| Approval | FCC, UL, CE, KC |
| Mechanical | |
| Dimensions (Ø x H) | Ø155 x 104.4mm |
| Weight | 1.02 kg(2.25lb) |

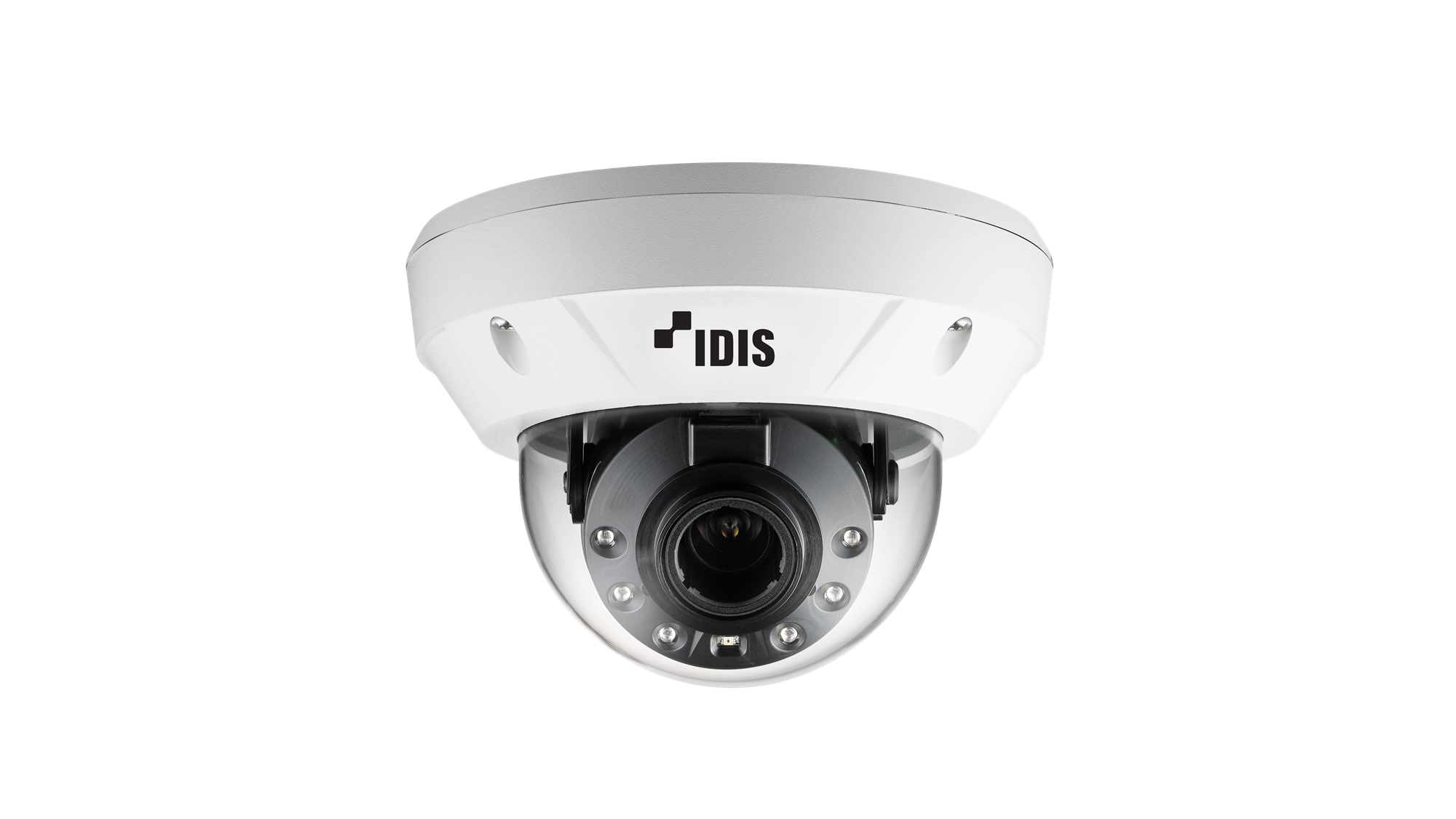

This is an 8MP vandal-resistant IR dome camera. It features an 8-megapixel resolution of 3840 by 2160 pixels. Its motorized vari-focal lens adjusts from 2.7 to 13.5 millimeters, allowing the field of view to be adjusted from ultra-wide to telephoto. For low-light operation, it incorporates infrared illuminators effective up to 40 meters.
The imaging includes True Wide Dynamic Range and De-fog technology. It supports two-way audio and provides alarm input and output interfaces. The housing offers robust protection with IP67-rated resistance against dust and water and an IK10 rating for vandal resistance and includes a built-in heater. Local storage is available via a Micro SD card slot. The camera housing features a 3-axis mechanical design for flexible installation and a white base. It can be powered via Power over Ethernet (IEEE 802.3af) or a 12V DC source.
