DH-2212PF - DirectIP Gigabit PoE Switch - IDIS
- • Indivisual port for data transmission to DirectIP® NVR
- • PoE (IEEE 802.3af, IEEE 802.3at) compliant
- • Maximum per-device PoE delivery of 140W available for 1~8 RJ45 ports
- • Central power control for greater network utility
- • Supports 10 RJ45 ports and 2 SFP slots
| System | |
|---|---|
| CPU | Embedded MIPS |
| System Memory | 256MB SDRAM, 32MB Flash |
| Switching Capacity | 24Gbps |
| Connectivity | |
| Copper Service Port | 8 RJ45 Connectors (10/100/1000BASE-T) |
| Copper Uplink Port | 2 RJ45 Connectors (10/100/1000BASE-T) |
| Optical Uplink Port | 2 SFP Slot (1000BASE-X) |
| PoE Power | |
| Supported Standards | IEEE 802.3af-2003 / IEEE 802.3at-2009 |
| PD Connection | Up to 8 IEEE 802.3af PDs or up to 4 IEEE 802.3at PDs |
| PSE Power Budget | 140W |
| General | |
| Dimensions(W x H x D) | 280mm x 44mm x 180mm (11.0" x 1.7" x 7.1") |
| Weight | 1.55Kg (3.42lb) |
| Operation Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Power Input | AC100-240V, 2.0~1.0A, 50/60Hz |
| Power Consumption | 160W |
| Approvals | FCC, CE, KC, UL, CB |

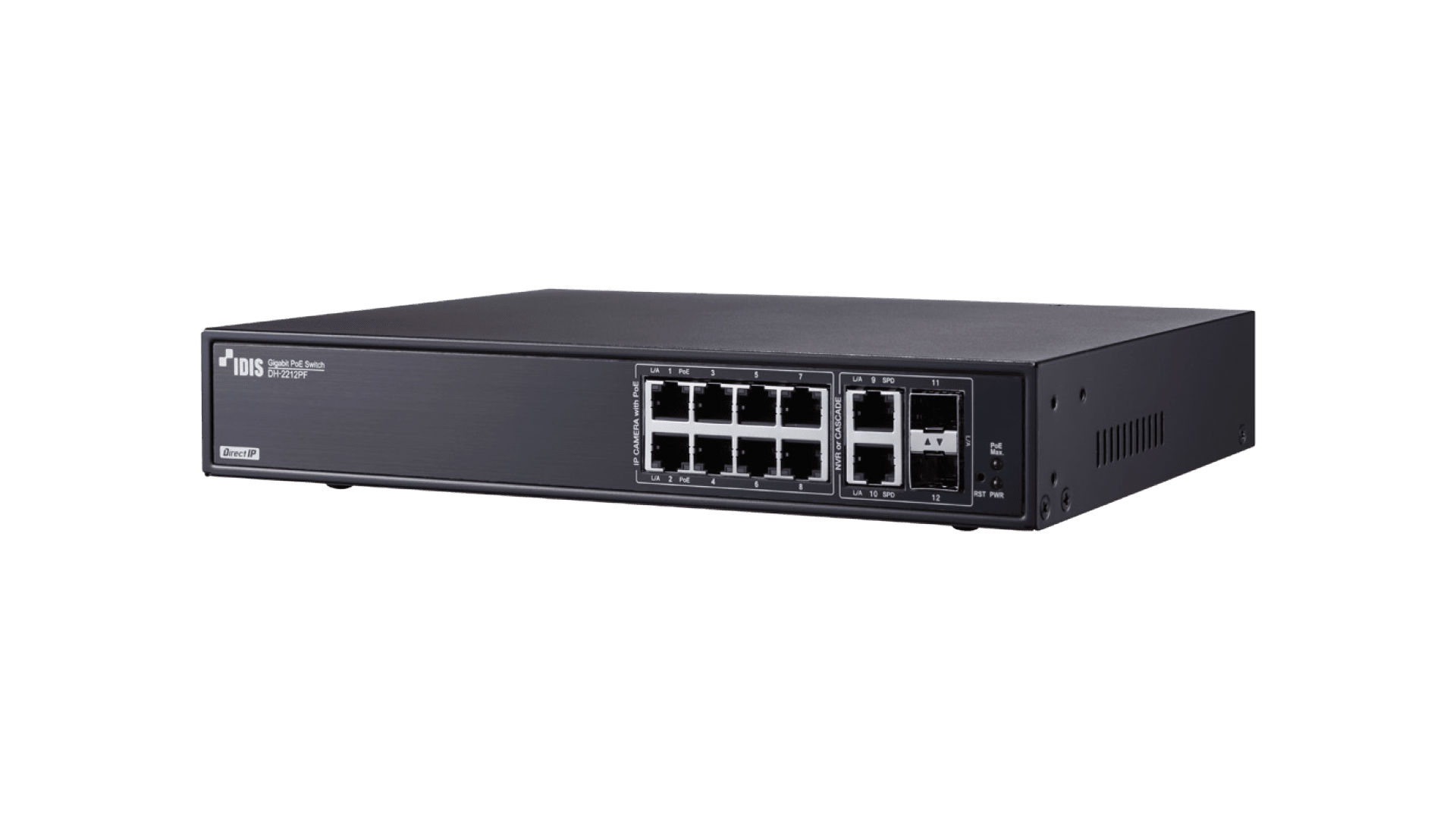

The DH-2212PF is a 12-port managed Gigabit PoE+ switch designed for performance and flexibility in IP surveillance networks. It features eight 10/100/1000 Mbps copper service ports for connecting high-bandwidth cameras, two Gigabit copper uplink ports, and two SFP fiber uplink slots for long-distance or high-noise backbone connections. Its total switching capacity is 24 Gbps. The switch includes a substantial Power Sourcing Equipment power budget of 140W. It supports the IEEE 802.3af and 802.3at standards, allowing it to power up to eight standard PoE devices or up to four higher-power PoE+ devices simultaneously across its Gigabit copper ports. It is designed for installation in controlled environments and operates within a temperature range of 0°C to 40°C (32°F to 104°F). It is powered by a 100-240V AC source with a maximum consumption of 160W.
